Merrychef 402s Service & Parts Manual

10
402s Ovens Part. N
o.
32Z3539 Issue 5

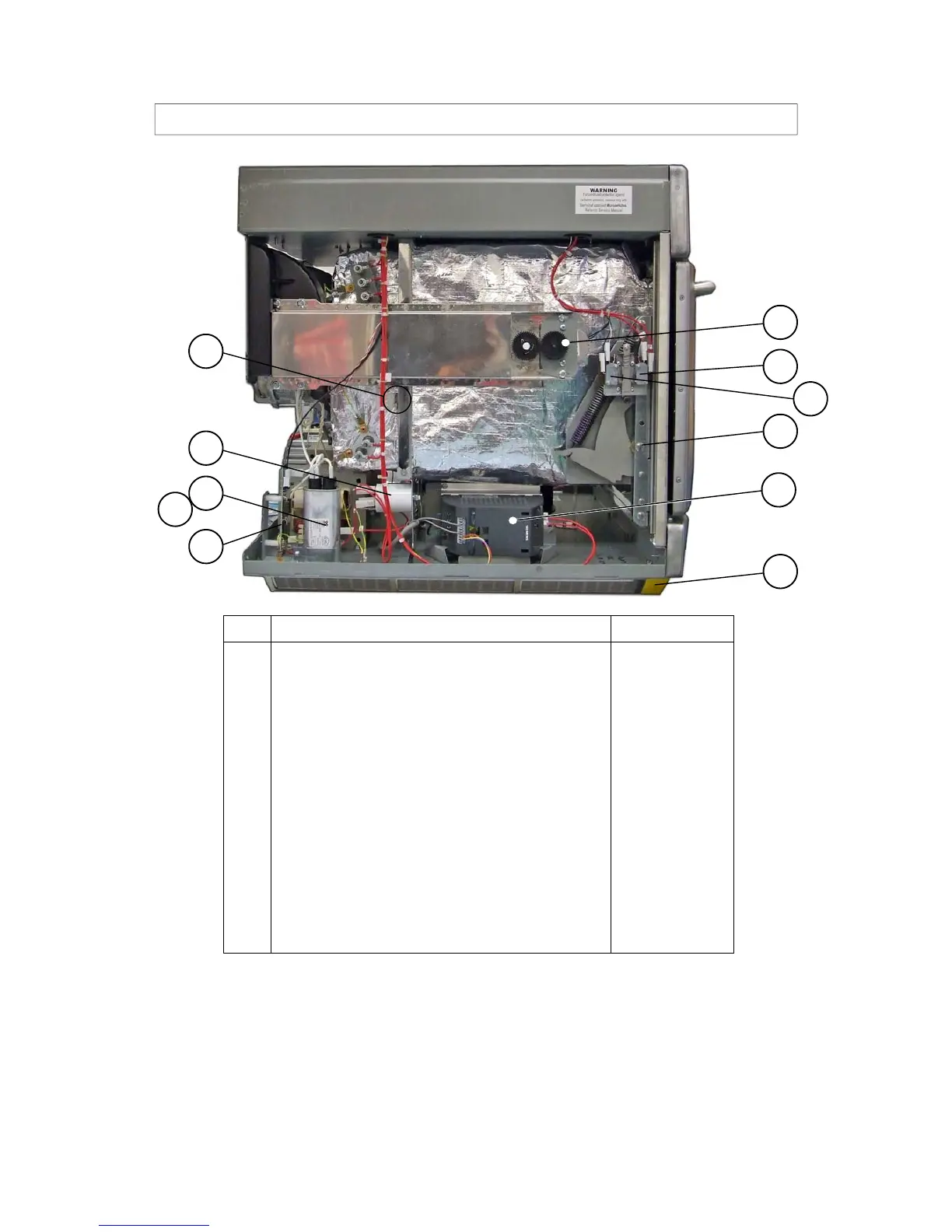

PRINCIPAL COMPONENTS: Left Side
No. Description Part No.
3 Filter 16A (Threaded) 30Z1340
4 Air filter SA276
5 Stirrer motor Assembly SA288
6 Microswitch SW3
Microswitch SW4
30Z1294
9 Door Hinge Assembly LH SA203
10 Motor Controller 30Z1319
24 Thermistor Cavity 30Z1315
25 HV Capacitor 2500V 1.0µF ( 50Hz models ) 30Z1331
25 HV Capacitor 2500V 0.88µF ( 60Hz models ) 30Z1251
25A HV Capacitor clip 31Z1261
70 Fibre Optic PCB 11M0364
3
25
25A
5
6
9
10
4
6
70
24
