5
402s Ovens Part. N
o.
32Z3539 Issue 5
Installation Instructions for Mealstream 402s Ovens
Power Supply Requirements
The Mealstream 402s should be connected to a suitable electricity supply, which can cope with
the switching-on surge that occurs with certain types of catering equipment, including
microwaves. Because of this requirement, we strongly recommend that a separate, suitably
rated supply is installed for the oven.
The supply for the oven should be fitted with a Type "C" or Time Delay circuit breaker.
If the oven is hard-wired to the supply, a double-pole isolator switch with a contact gap of at
least 3mm ( 1/8 inch ) should be fitted.

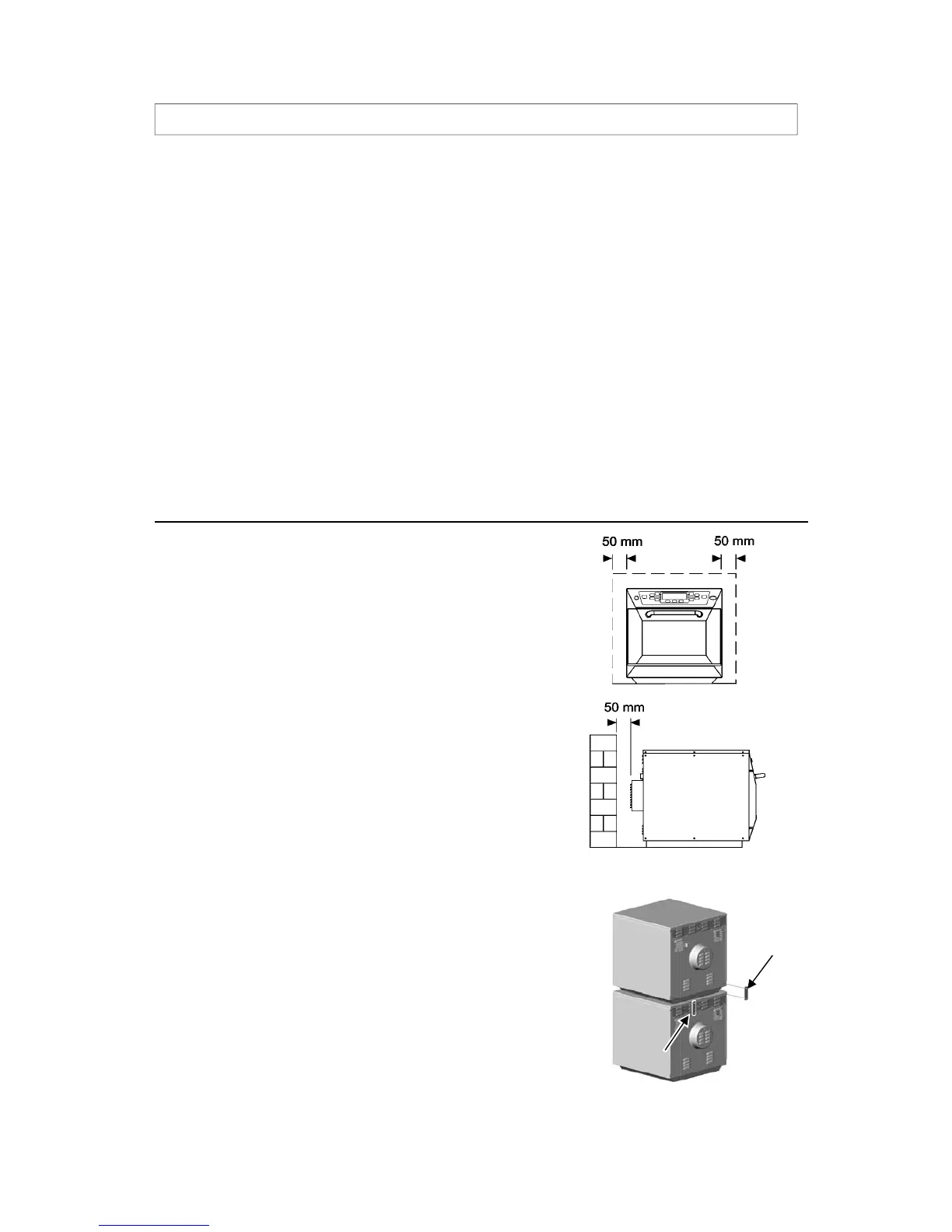

Positioning the Oven
In order to maintain adequate ventilation for air intake
and exhaust, and to allow access for cleaning filters,
you must allow a minimum of 50 mm ( 2 inches )
clearance at the sides and rear of the oven.
Air intake temperature should not exceed 45°C (110°F )
excessive temperature will lead to reduced operating duty
cycle, or premature ageing of internal components.
Failure to comply with these conditions will invalidate the
warranty.
Note:
The minimum
recommended clearance
required for air flow
Grounding requirement
This appliance must be connected to a grounded, metallic, permanent wiring system, or an
equipment grounding conductor should be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the appliance.
INSTALLATION INSTRUCTIONS
NEVER Install an oven above fryers,
grills, griddles or any other
major heat source.
ALWAYS Place containers in the cavity
carefully - impact damage
may chip the vitreous enamel
coating on the runners and
baffle plate.
Earth Bond terminal
An Earth Bond Terminal is provided on the rear panel of the oven for independent Earth (GND)
connection.
Stacking the oven ( Maximum one only)
Using stacking kit Part No. SA129
