43
402s Ovens Part. N
o.
32Z3539 Issue 5
AP
PE
N
DI
X
3
:

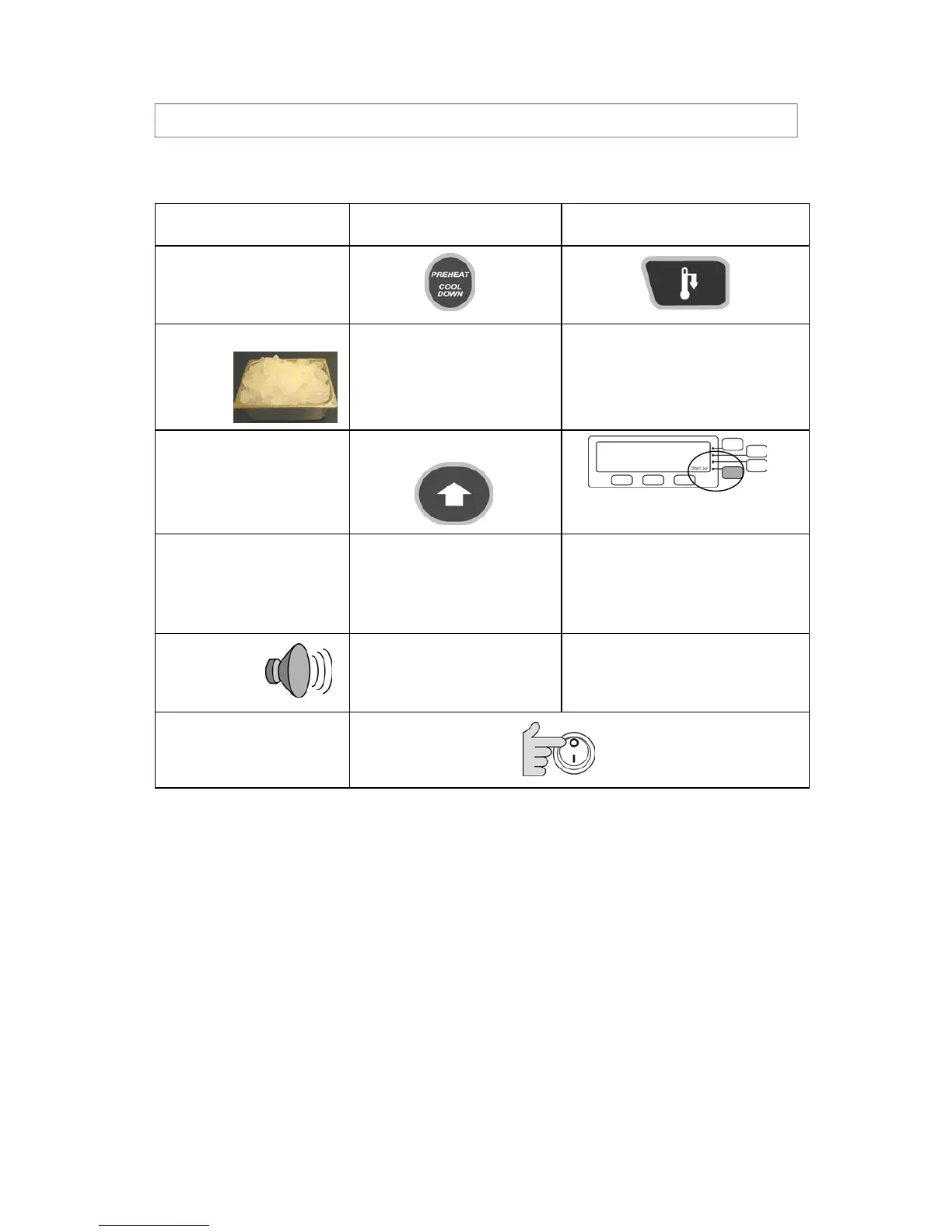

Cool Down
Procedure
Action
EC402s V2.0
EC 402s
V3.0
To commence
Cool Down
procedure Press
Place Ice in cavity
COOL DOWN MODE
PLACE ICE IN CAVITY
COOL DOWN MODE
PLACE LOAD IN CAVITYAND
PRESS START
Press
Continue
The oven cools down for
approximately 30 minutes
COOL DOWN MODE
OVEN HOT
PLEASE W
AIT
( Also in Spanish)
COOL DOWN MODE
OVEN HOT
PLEASE W
AIT
Cycle ends
COOL DOWN COMPLETE
READY FOR CLEANING
Turn oven
off and
ensure
Air Filters are clean
Switch oven off ready for
cleaning
To cool do
wn and clean
a hot ove
n
Start
42
44
Table of Contents
Table of Contents
2
Safety Code
3
Product Specifications
4
Installation Instructions
5
Main Features
6
Electronic Control Panel
7
Main Features Control Panel Version 2.0
7
Main Features Control Panel Version 3.0
8
Principal Components: RHS
9
Principal Components: LHS
10
Principal Components: Control Box
11
Principal Components: Back View
12
Principal Components: Power Supply
13
Principal Components: Cavity Parts & KFC Accessories
14
Principal Components: External Panels & Parts
15
Principal Components: Electronic Control Panel Assembly
16
Parts Matrix
17
Procedure for Power Output Measurement
19
High Voltage Capacitor Test
20
Power Transformer Test
20
Procedures for Principal Component Tests
20
High Voltage Rectifier Test
21
Magnetron Test
21
Procedure for Door Interlock Adjustment
22
Procedure for Door Interlock Adjustment and Test
23
Hot Air Motor and Controller
25
Circuit Diagram
27
Troubleshooting Guide
35
Appendix 1: Temperature Sensor Resistance Data
40
Appendix 2: Menukey Download Procedure V2.0
41
Menukey Download Procedure V3.0
42
Appendix 3: Cool down & Cleaning Procedure
43
Appendix 4: Recommended Spares List
46
Logic Pcb Connection Points/Key Features
47
Fibre Optic Magnetron Detection
47
Appendix 5: PCB Connection Points
47
Appendix 6: Firmware Revision Guide
49
Appendix 7: Electrical Installation Guide
55
Manual Corrections and Modifications
56
