Merrychef 402s Service & Parts Manual

11
402s Ovens Part. N
o.
32Z3539 Issue 5

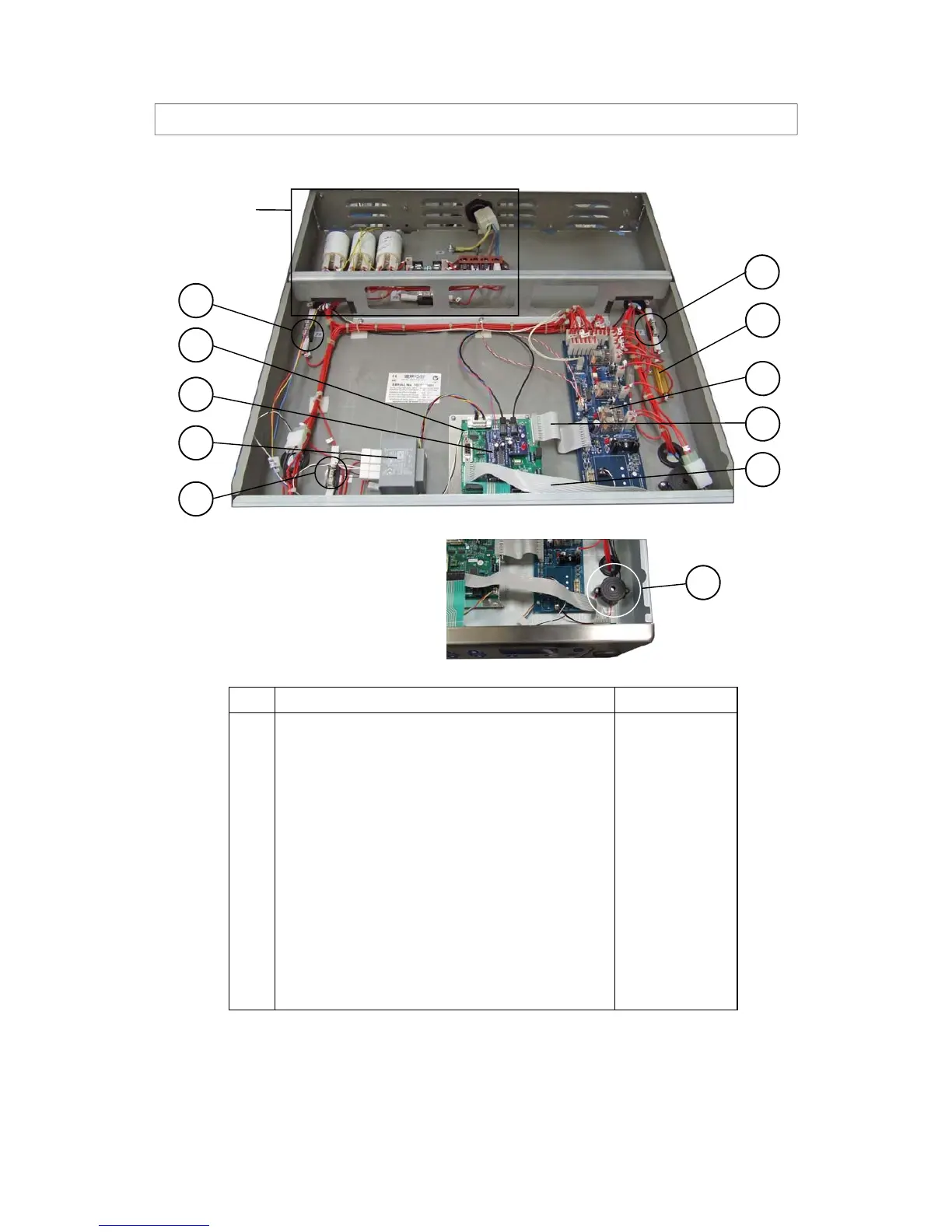

PRINCIPAL COMPONENTS: Control Box
No. Description Part No.
11 Fuse 10A HRC 30Z0217
12 Gold resistor ( 220R ) 30Z0235
13 Relay PCB Assembly 11K0004
14 Ribbon Cable 15way 11Z0298
15 Ribbon Cable 10way MenuKey 11M0117
16 Logic PCB Assembly Version 2.0 11K0002
16 Logic PCB Assembly Version 3.0 11K0012
17 Transformer LT (Low voltage) 30Z1155
18 Fuse 1A 30Z0957
59 Sounder SA257
72 Fibre Optic Logic PCB 11K0013
11
13
12
14
15
18
17
16
See
Principal
components:
POWER
SUPPLY
11
59
72
