Merrychef 402s Service & Parts Manual

9
402s Ovens Part. N
o.
32Z3539 Issue 5

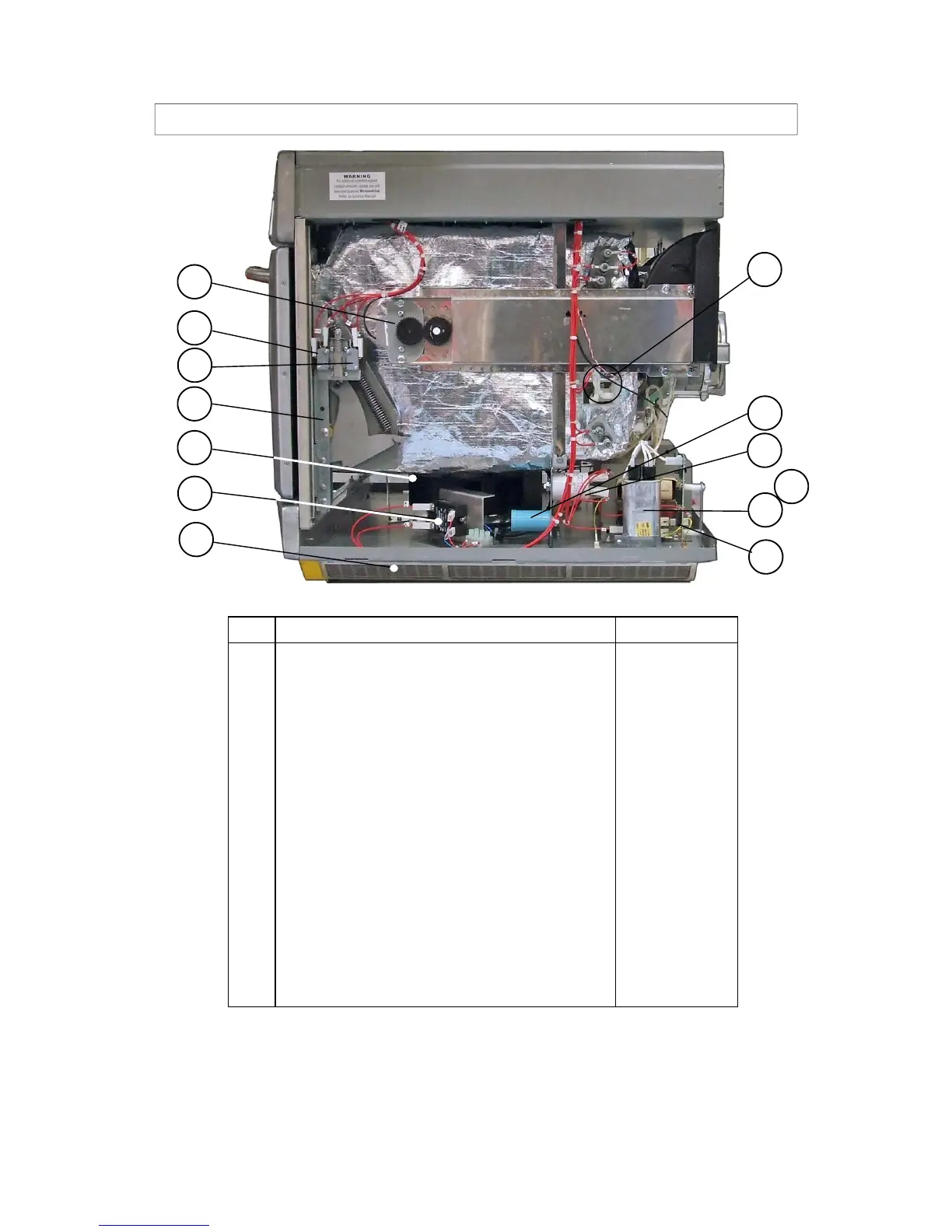

PRINCIPAL COMPONENTS: Right Side
No. Description Part No.
1 Cavity Overheat stat 30Z1024
2 Motor Start Capacitor 2µF ( Blue ) 30Z1298
3 Filter 16A (Threaded) 30Z1340
4 Air filter SA276
5 Stirrer motor Assembly SA288
6 Microswitch SW1
Microswitch SW2
30Z1294
7 Door Hinge Assembly RH SA202
8 Magnetron Cooling Fan 30Z1295
26 HV Capacitor 2500V 1.1µF ( 50HZ models ) 30Z1242
26 HV Capacitor 2500V 0.88µF ( 60HZ models ) 30Z1251
26A HV Capacitor universal clip 31Z1261
70 Fibre Optic PCB 11M0364
71 Solid State Relay 30Z1362
1
3
4
5
6
7
8
26
6
26A
2
70
71
