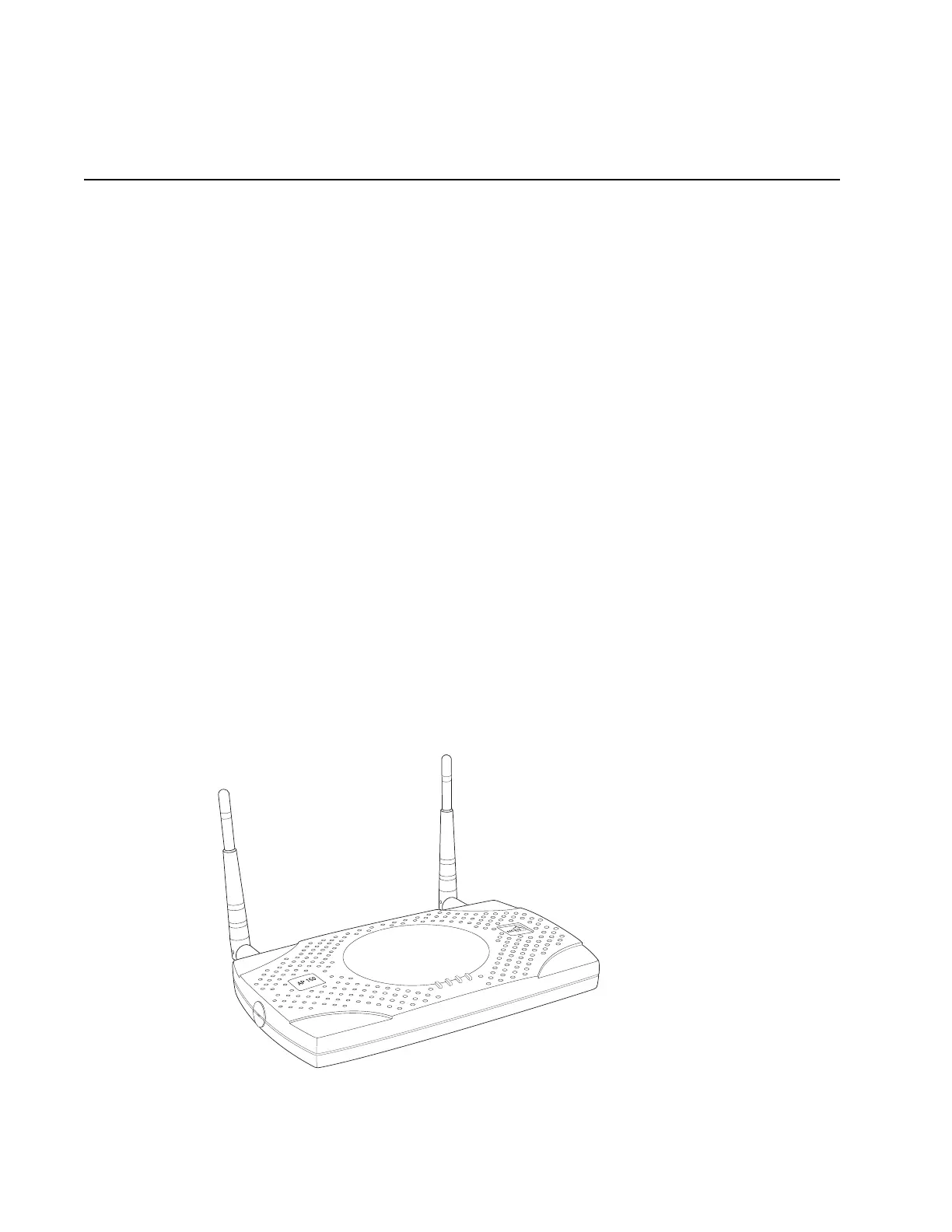

8 Installing the Meru Air Point 100
Installation Requirements
Table 1: AP100 Installation Items
You need the tools listed in Table 2.
Table 2: AP100 Installation Tools
Installation Type Consumable Items Required
Horizontal mounting None
Vertical mounting over a wall stud
z Two #6 x 2" wood screws for a wood stud; or
z Two #6 x 1½" metal screws for a metal stud
Vertical mounting on sheetrock
z Two #6 x 1" screws
z Two #4-6 x 7/8" ribbed plastic wall anchors
Horizontal mounting below a ceiling
z Two #6 x 1" screws
z Two #4-6 x 7/8" ribbed plastic wall anchors
Mounting above a ceiling tile
(AP100-P only)
z Two #6 x 1" screws
z Mounting bracket
z Light-pipe extender
Installation Type Tools Required
Horizontal mounting None
Vertical mounting over a wall stud
z Drill
z 1/8" drill bit
z Screwdriver
Vertical mounting on sheetrock
z Drill
z 3/16" drill bit
z Screwdriver
Horizontal mounting below a ceiling
z Drill
z 3/16" drill bit
z Screwdriver
Mounting above a ceiling tile
(AP100-P only)
z Drill
z 1¼" hole saw
z Screwdriver
