68 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Checking LED Activity

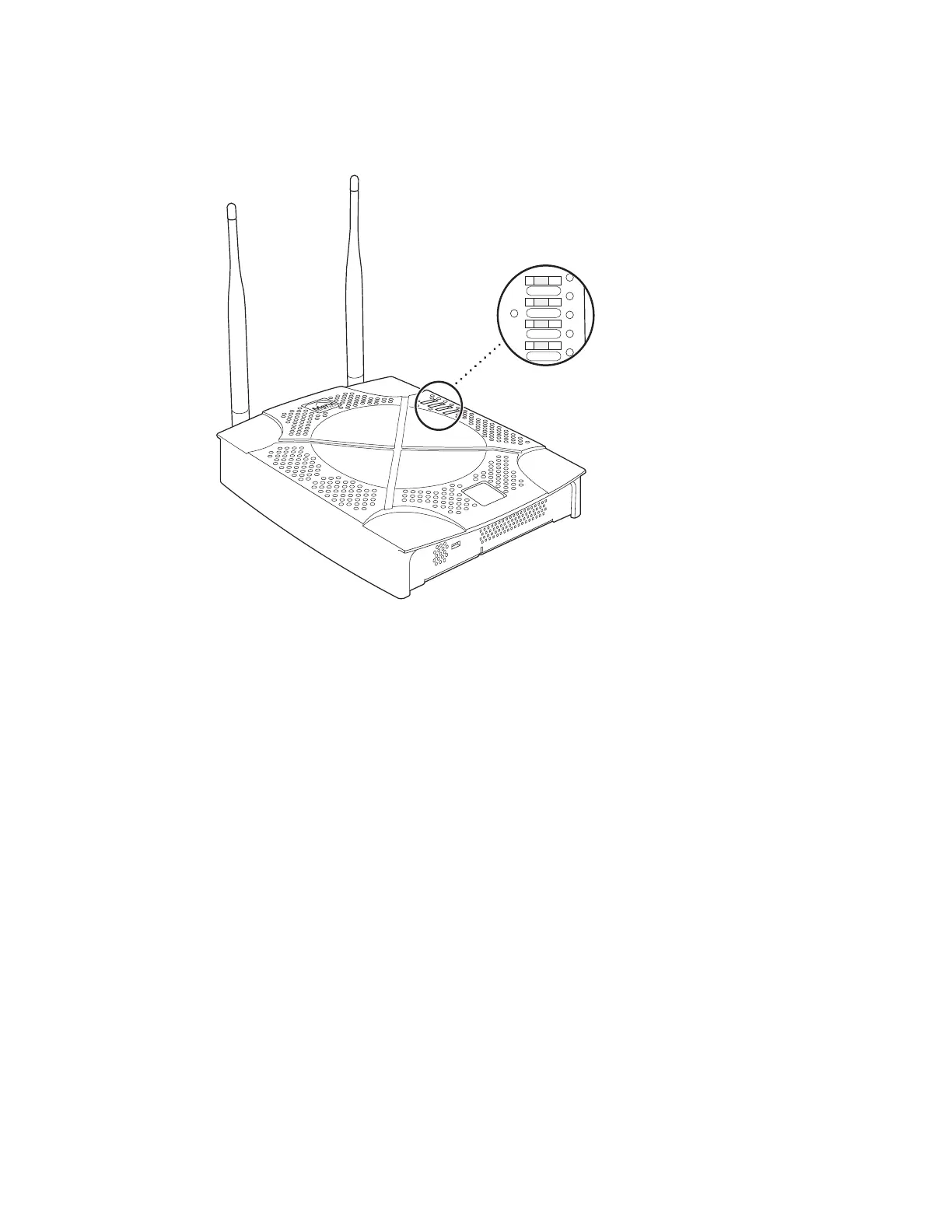

Figure 26: AP200 Status LEDs
. .
The functions of the status LEDs are described below.
When the AP200 is first connected to the controller and any time the access point is
rebooted thereafter, the AP initializes with and then is programmed by the
controller. When the AP is first powered up, all LEDs are green. Thereafter, the
Status LED (see Figure 26) color reflects the various operating states as described in
the second table below.
AP200
RF2
RF1
STATUS
POWER
00113
