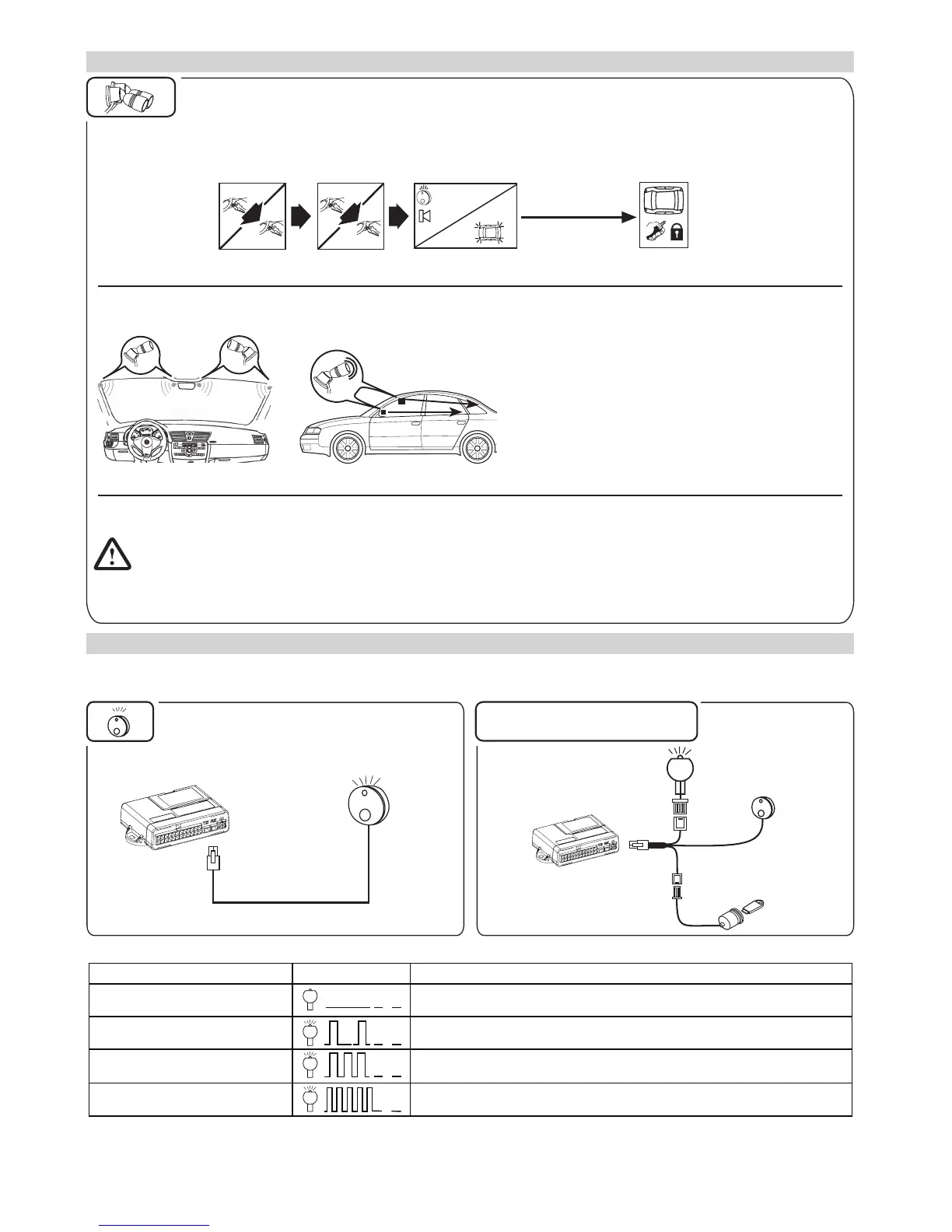

ASSEMBLING THE SENSORS
RX
TX
STATUS LEDS AND RELATIVE INDICATIONS
By means of a LED specifically installed on the car dashboard you can have information about the alarm
system status (see the following table).
LED INDICATION CONTROL UNIT STATUS INDICATION
O Control unit disconnected or deactivated
Slow ash Activated and in the surveillance mode
Fast ash In the initial immunity period
Very fast In the initial immunity period and volumetric protection disabled
SIGNALS OF THE CONTROL UNIT VIA THE STATUS LED
Once the alarm has been deactivated, some ashes of the LED tell you if one or more siren alarms were triggered
in your absence. To nd the cause please refer to the ALARM MEMORIES table in the user handbook.
Thanks to the volumetric protection system with
Eco/Doppler technology and the adjustable
sensors, you can have high performance and
excellent immunity from false alarms. The factory
set sensitivity ensures that all vehicles can be
protected thanks to an automatic system that
adapts it to the volume to protect and, if you
want to increase it, it can be done manually or
with the portable programmer PDC/CAR ALARM
PROGRAMMER (
ABS0889
).
To disable the volumetric protection proceed as explained and illustrated below; activate the car’s +15 panel twice
and after the 3 beeps of the control unit lock the car with the original remote control within the next 20 seconds.
The LED will ash very quickly during the immunity time to indicate that the alarm is activated with the volumetric protection
disabled.
VOLUMETRIC PROTECTION INHIBITION
VOLUMETRIC PROTECTION
+ 15 ON
+ 15 OFF
+ 15 ON
+ 15 OFF
MAX
20 SEC.
X 3
= 1 FLASH
= 3 BEEP
AUTOMATIC INHIBITION OF THE HEAT
If the product is used on a car with heater, it is possible to use the automatic volumetric protection inhibition which is
automatically restored a few minutes after the heater is turned o .
For the connection, select function ON via the portable programmer PDC/CAR ALARM PROGRAMMER (ABS0889) and use the
BOOT line with negative active signal (PURPLE wire, Pin 14).
ALARM MEMORY
Fig. 9
Fig. 11Fig. 10
OPT - ABS13760
WINDOW LED + ELECTRONIC KEY
LED
(SET-UP/OVERRIDE SWITCH)
WINDOW
LED
LED
(SET-UP/OVERRIDE SWITCH)
RECEPTACLE +
1 ELECTRONIC KEY
(See page 22 for the automatic inhibition of ultrasonic protection via CAN-BUS)
