Metabo TS 254 User Manual

ENGLISH
24
ACaution!
Do not carry the machine at the
guards, table side extension or oper-
ating elements!
Mobile transport:
 Pull out handle, turn it and engage it.
 Pull or push saw with handle
If possible use original carton for ship-
ping.
ADanger!
Prior to all servicing:
1. switch machine off.
2. wait until the saw has come to a
complete stop.
3. unplug mains cable.
– Check that all safety devices are op-
erational again after each service.
– Replace defective parts, especially
safety devices, only with genuine re-
placement parts. Parts not tested
and approved by the equipment
manufacturer can cause unforeseen
damage.
– Repair and maintenance work other
than described in this section should
only be carried out by qualified spe-
cialists.
ADanger!
With a damaged table insert there is
a risk of small parts getting stuck
between table insert and saw blade,
blocking the saw blade. Replace
damaged table inserts immediately!

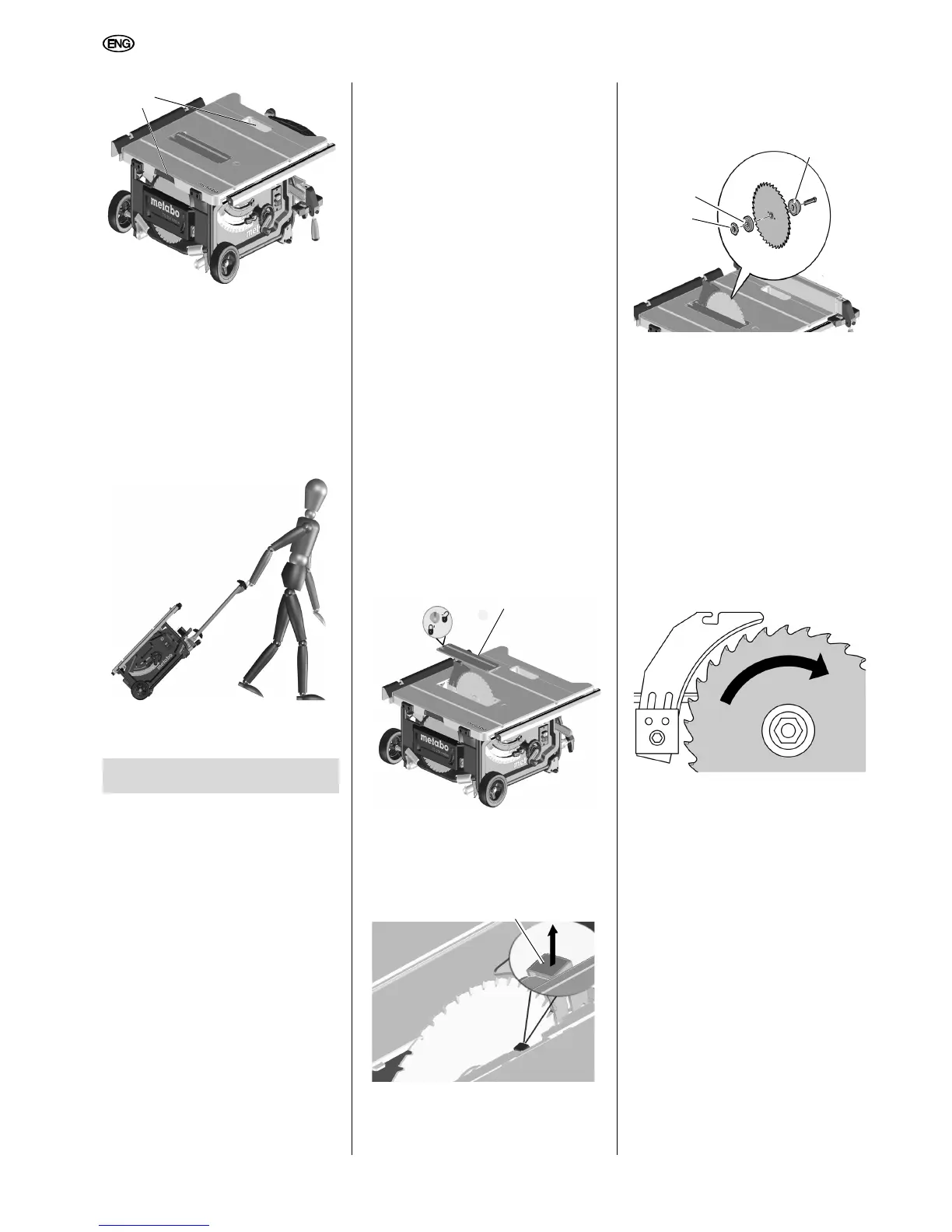

8.1 Saw blade change
ADanger!
Directly after cutting the saw blade
can be very hot – burning hazard!
Let a hot saw blade cool down. Do
not clean the saw blade with com-
bustible liquids.
Risk of injury, even with the blade at
standstill. Wear gloves when chang-
ing blades.
When fitting a saw blade, observe
the direction of rotation!
1. Raise saw blade fully.
2. Remove blade guard.
3. Loosen table insert (64) and remove
from table.
4. Turn clamping nut (68) with open-
jawed spanner and , at the same
time, pull lever for saw blade lock
(65) upwards until it engages.
5. Hold lever firmly in position and un-
screw clamping nut clockwise.
6. Remove clamping nut (68), outer
blade flange (67) and saw blade
from saw spindle.
7. Clean clamping surfaces of saw
blade flange (66) and (67) and saw
blade.
ADanger!
Do not use cleaning agents (e.g. to
remove resin residue) that could
corrode the light metal components
of the saw; the stability of the saw
would be adversely affected.
8. Push inner saw blade flange (66)
onto motor shaft.
9. Put on a new saw blade (observe di-
rection of rotation!).
ADanger!
Use only saw blades conforming to
the technical specifications stated
and to EN 847-1 – if unsuitable or
damaged saw blades parts are used,
parts can be ejected due to centrifu-
gal force in an explosive-type man-
ner.
Do not use:
– saw blades which permissible
maximum speed is below the rat-
ed no-load speed of the saw
spindle (see “Technical Specifi-
cations”);
–saw blades made of high speed
steel (HS or HSS);
–saw blades whose cutting width
is less than, or whose blade body
8. Care And Maintenance
63
64
65
66
67
68

Metabo TS 254 Specifications

General

Input power	2000 W
Cable length	3.1 m
Output power	1270 W
Idle speed	4200 RPM
Cutting speed	56 m/s
Uncertainty K	3 dB
Blade diameter	254 mm
Sound power level	112 dB
Sound pressure level	99 dB
Cutting height @ 45°	54 mm
Cutting height @ 90°	87 mm
Cutting width @ parallel guide/rip fence (max)	630 mm
Saw blade included	Yes
Placement supported	Tabletop
Material width @ miter fence (max)	200 mm

Weight and Dimensions

Depth	740 mm
Width	750 mm
Height	355 mm
Weight	33400 g
