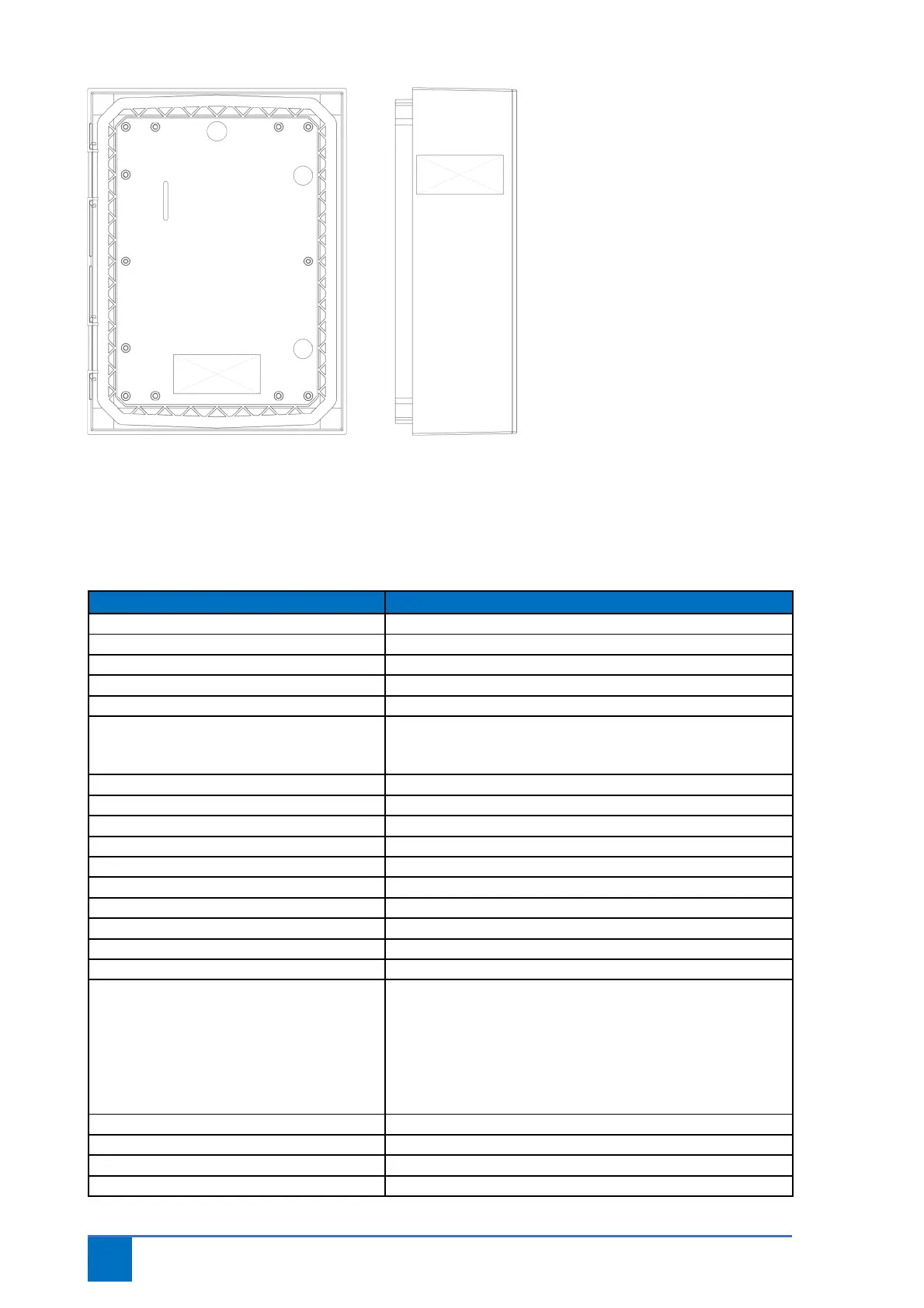

Figure 2 Position of the type plate
1.5
Technical details
Table1 Technical details
Weight 10 kg
Height 400 mm
Width 300 mm
Depth 150 mm
Electricity consumption Max. 2.2 kW
Power 3N~400Vac +/- 10%, 50/60 Hz
3~230Vac +/- 10%, 50/60 Hz
1N~230Vac +/-10%, 50/60 Hz
Fuse Max. 6.3 A slow
Motor capacity Max. 2.2 kW
Electricity Max. 8,3 A
Brake 24 Vdc
Control voltage 24 Vdc
Control current 300 mA
External power 24 Vdc
Current external power Max 500 mA
Relay outputs potential-free changeover switches
Load of relay contacts Max. Ohm load = 1 A / Max. inductive load = 1 A
Battery Voltage : 12 Vdc
Capacity : 5.2 Ah
LxWxH : 90 x70 x 106 mm
Brand : CSB battery
Type : HR1221W
Weight : 1.8 Kg
Technology : AGM
Protection class IP 40
Environment temperature +5...+40°C
Relative humidity Max. 93% (non-condensing)
Vibration Install vibration-free (e.g. brick wall)
