Metacon-Next FirePro V4 - Control Panel; RJ 45 Connector; Des; Nes

33

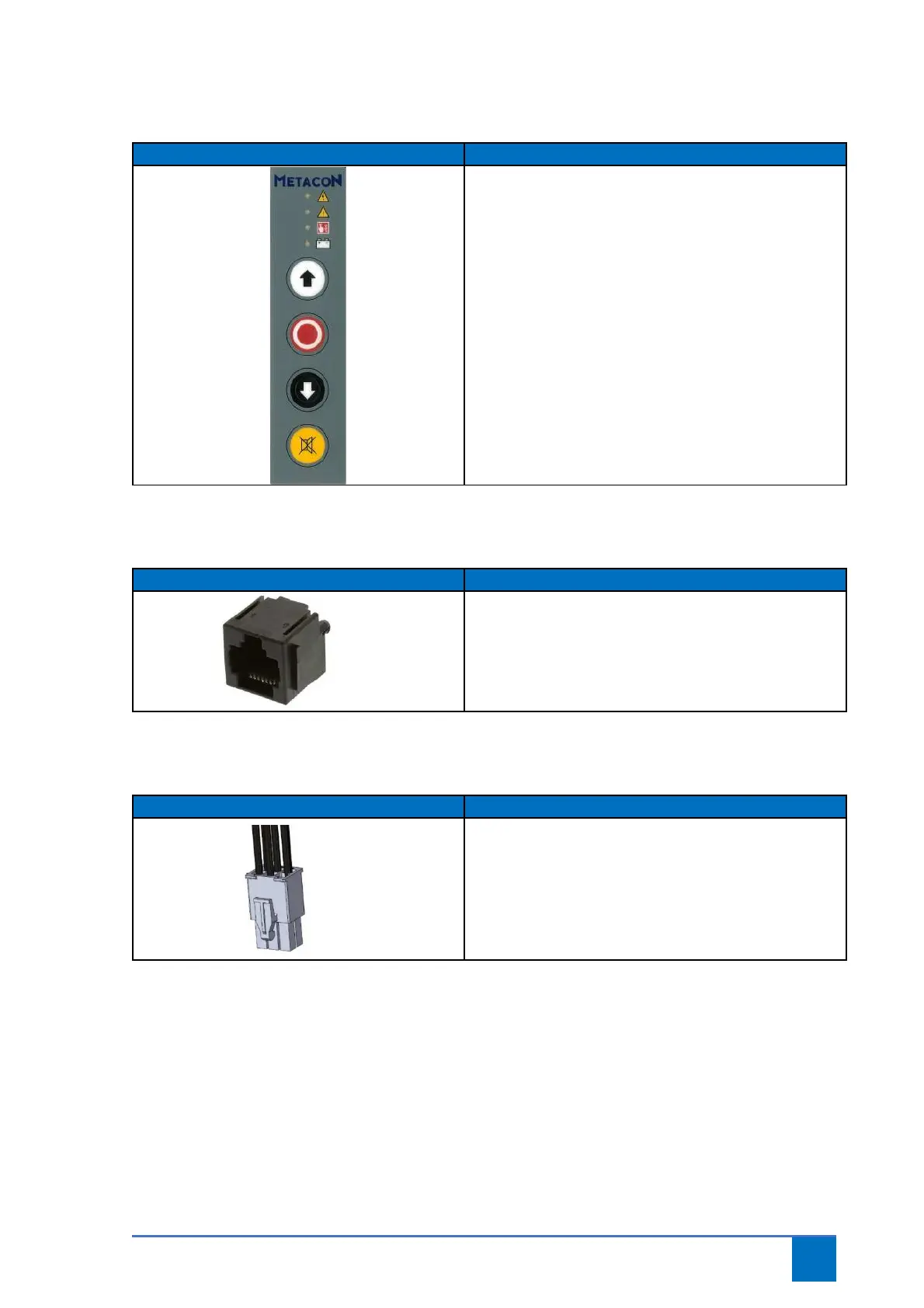

16. Control panel
17. RJ 45 connector
18. DES / NES
Control panel lid X21
Connect
The control panel is connected to connector X21 using a
flat cable.
RJ 45 Connector X22
Connect
RJ 45 connector for connecting a future expansion of the
RDA Updater.
DES / NES X23
Connect
The end switches of the drive unit are connected to X23
using the 6-pin connector of the FirePro motor cable.
