Metacon-Next FirePro V4 - OSE Light Curtain; External Controls; Inputs

31
10. OSE light curtain
11. External controls
12. Inputs

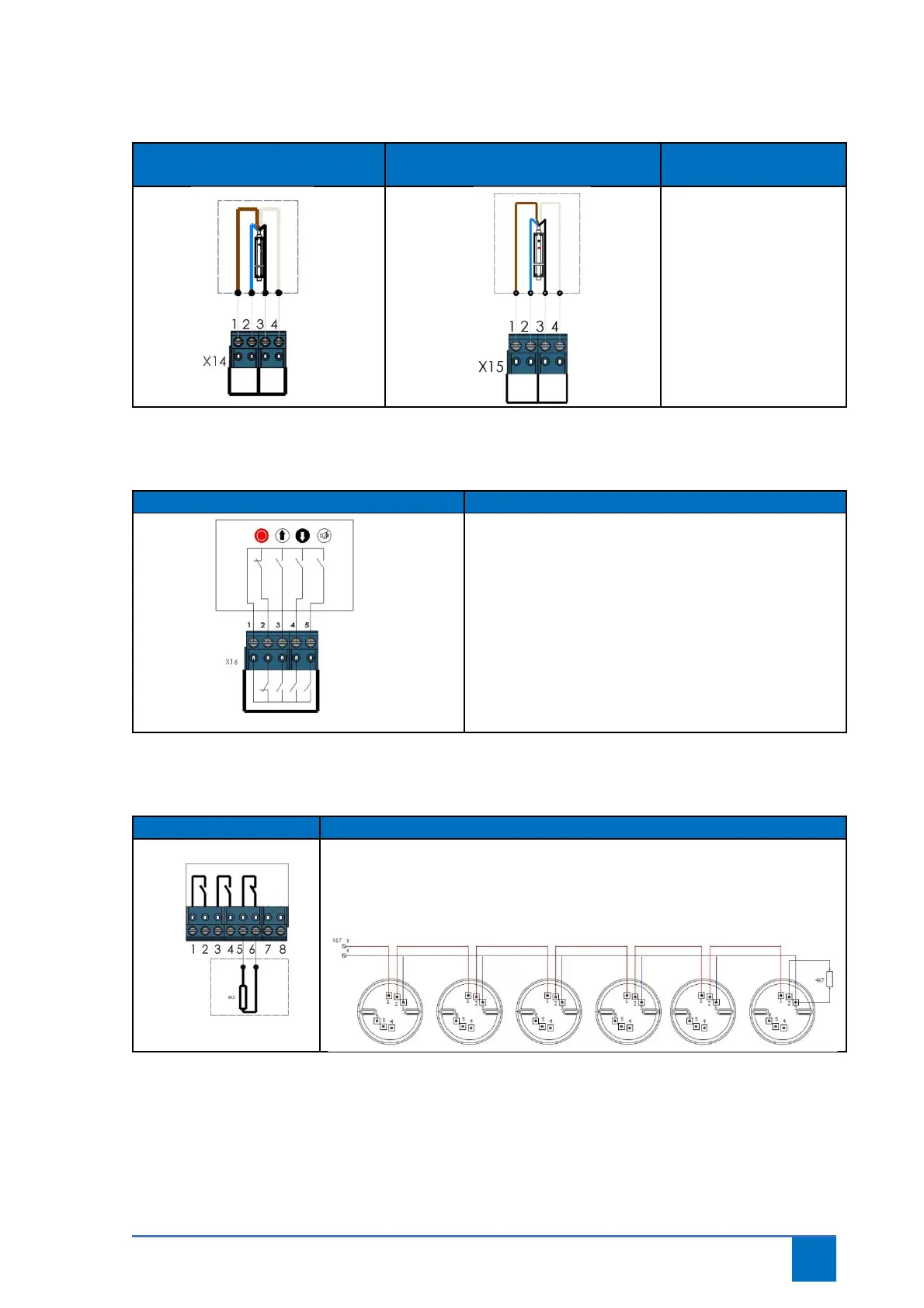

Transmitter LIGI 07 OSE light
curtain X14
Receiver LIGI 07 OSE light curtain
X15
Description
1 = Brown
2 = Blue
3 = Black
4 = White
External controls X16
Connect
X16 can be used to connect external UP-STOP-DOWN
controls.
If X16 is not used, connect terminals 1 and 2 (stop
function) using a wire bridge.
There is also an input for an external “mute” button.
Inputs X17
Connect
Inputs for Sensor, escape button and fire/smoke alarm with detectors for
potential difference (short-circuit detection via resistor 4K7).
X17.7 (+) and X17.8 (-) feature a 24VDC connection. This can be used as power
supply for external components.
