2.2 Internal view
The FirePro includes a cabinet containing a control circuit board in combination with
power/charger and 2 batteries (12V-5.2Ah). The lid of the cabinet has a control panel that
features 4 status LEDs.

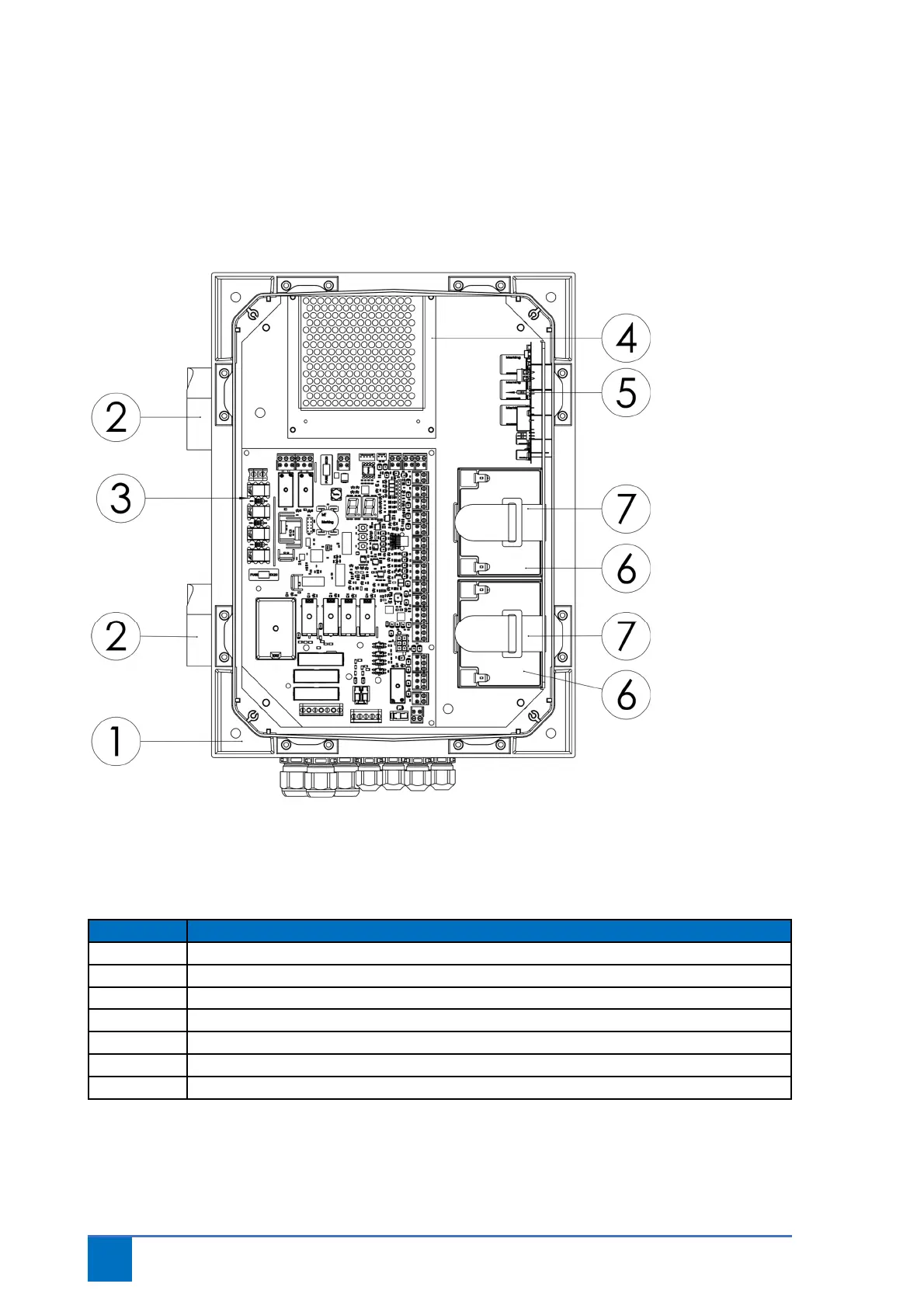

Figure 4 Internal view
Table 3 Layout internal view
No.
Component
1
Casing
2
Ventilation
3
FirePro V4 control circuit board
4
Power/charger
5
Signal transmitter board (P
-
CAP)
6
Battery
7
Battery attachment
