Metallisation ARC150-2310D - Page 16

Page 16 of 48

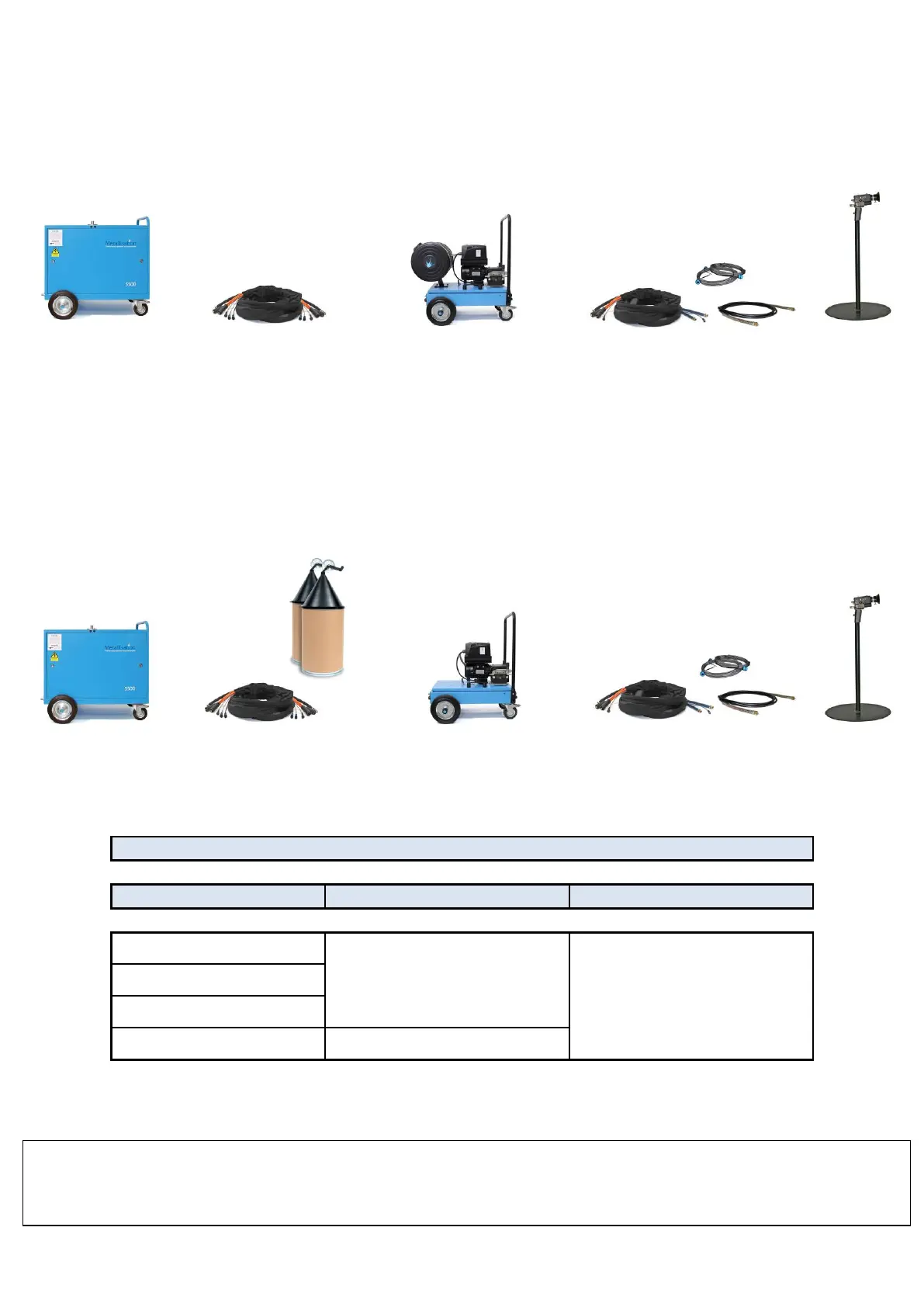

Extended Configuration – Push/Pull with wire on MIG reels
Most commonly used in hard to reach areas such as boilers/vessels where access for the energiser is
limited. Hardboard reel variant can also be offered on the trolley.
Extended Configuration – Push/Pull with wire in Drums
Most commonly used for very long access applications where there is a benefit to remotely site the
energiser away from the spraying area and maintain the benefit of having wire in drums.
NB: Maximum total supplies length is 50M. This can be a combination of 30 + 20 or 40 + 10.
TYPICAL EXTENDED SUPPLIES CONFIGURATION
EXTENDED SUPPLIES
PISTOL SUPPLIES
TOTAL MAX
10M
10/20M
50M
20M
30M
40M
10M
Energiser
Pistol
Extension
Supplies
Pistol
Energiser
Wire in drums
3m max. (2m
std) wire to drive
Extension Supplies
Push/pull drive unit and MIG
reels on power extension
trolley with quick release
connections
Push/pull drive unit on power
extension trolley with quick
release connections
Supplies from wire drive to
pistol
Supplies from wire drive to
pistol
Also available is the Push/Pull with wire on hardboard reels configuration – most commonly used for on-site anti-corrosion
applications where loading of Hardboard reels is more feasible than using drum or MIG material. Hardboard reels are
common in some markets and allow a larger amount of wire to be held on the reel than traditional MIG reels.
