Page 34 of 48

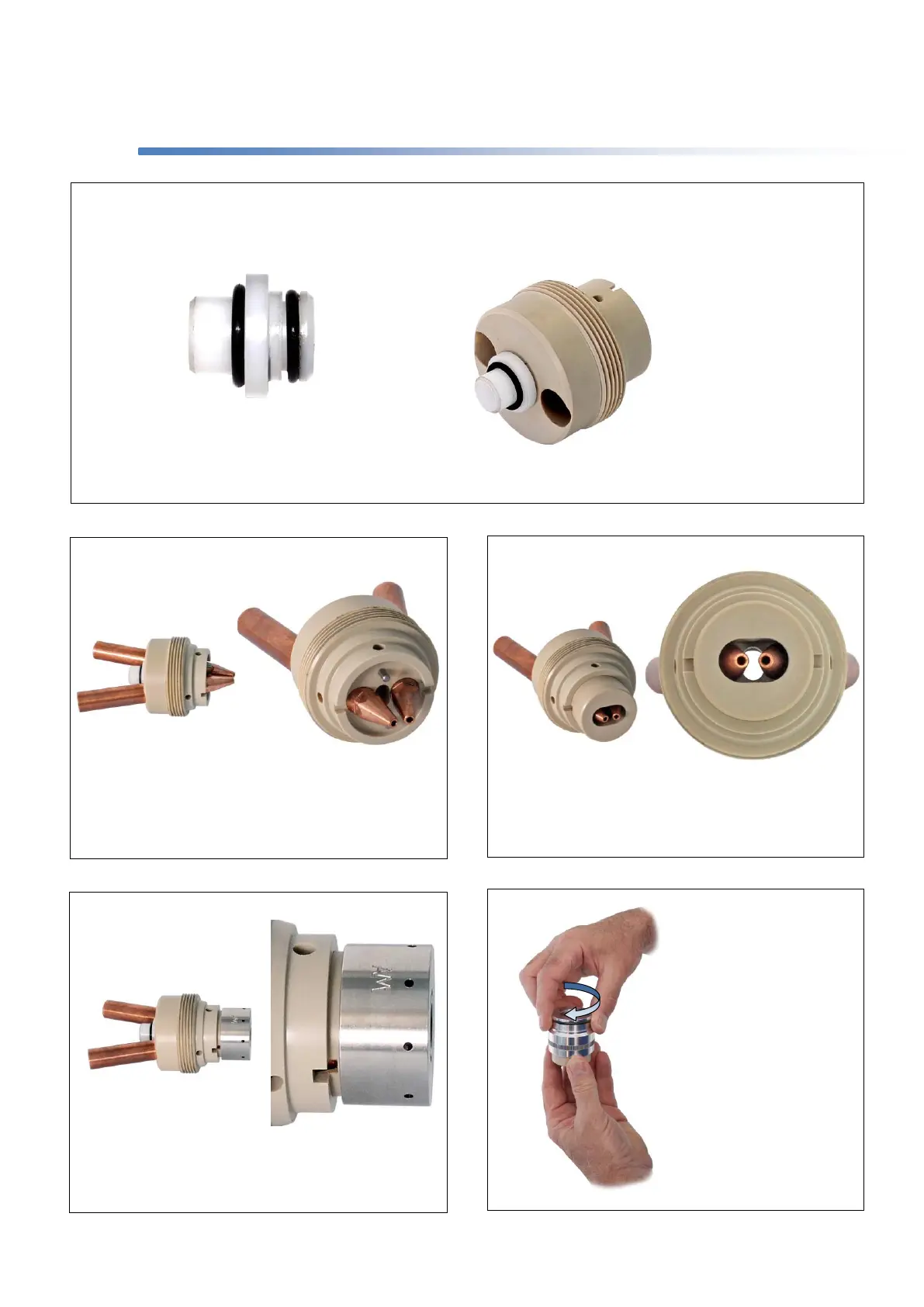

4.4 CG Spray Head Reassembly
Screw the Air
Cover over the Air
Cap. Hand tighten
firmly but NOT
excessively.
With both ‘O’ Rings fitted to the Transfer Plug,
lubricate the larger ‘O’ Ring lightly with silicon
grease.
Press the Transfer Plug
into the Contact Tube
Support Block until the
largest diameter
touches the rear of the
block.
Once all Spray Head parts have been cleaned and any damaged parts have been renewed, the Spray Head can be reassembled
using the following technique:
Select the correct Contact Tips for the wire being sprayed.
Push the Contact Tubes through the Contact Tube Support
Block until they bottom out and they protrude from the front
face of the seat of the block.
Place the Air Concentrator in the seat of the Contact Tube
Support Block with the Contact Tubes passing through the
Air Concentrator.
Place the Air Cap over the Air Concentrator.
