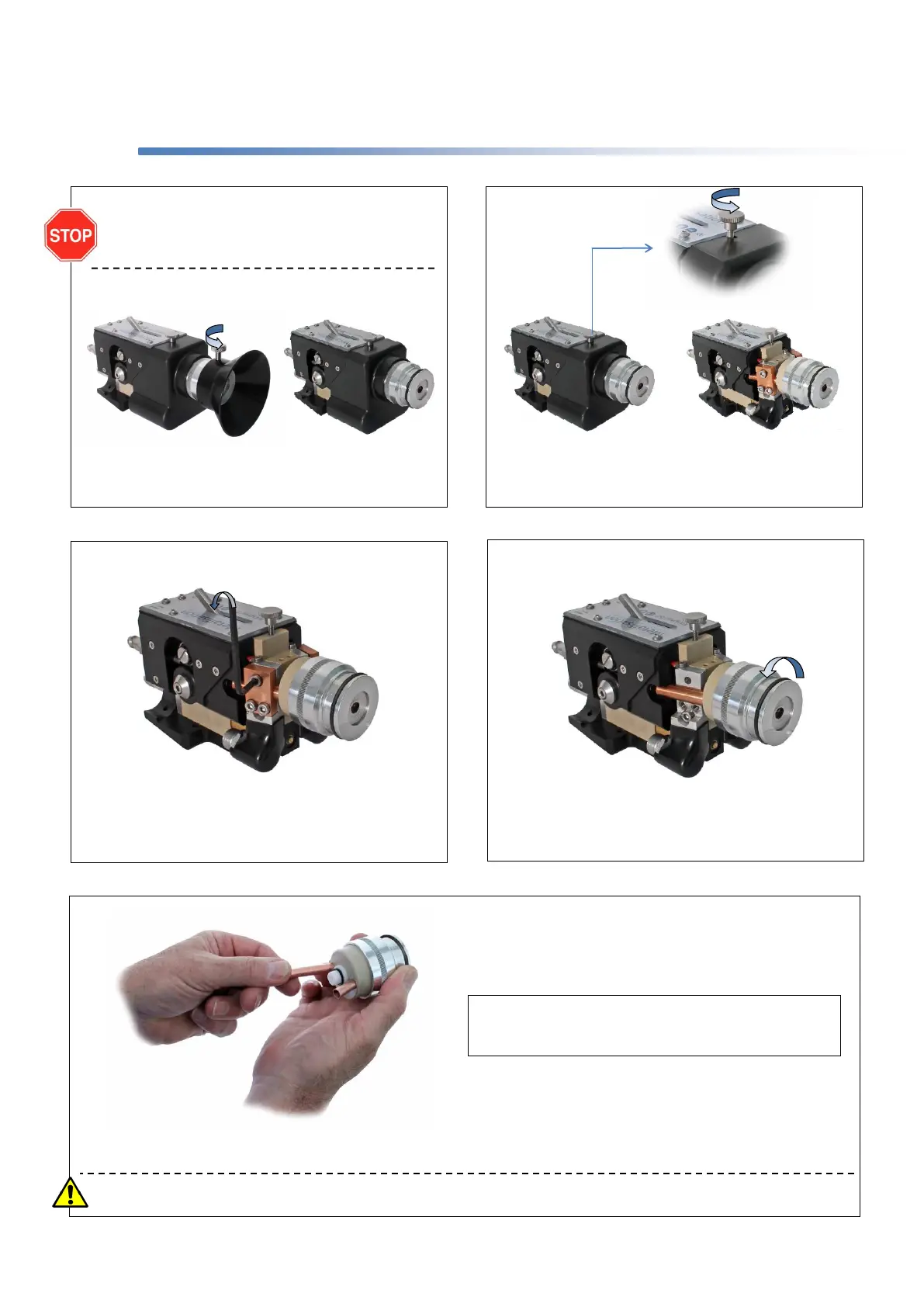

4.3 CG Spray Head – Complete Disassembly
Loosen the Air Cover by turning in the direction shown. DO
NOT unscrew completely. Now the complete Spray Head
Assembly can be pulled forward from the pistol.
Using an appropriate Hex Key remove the Screws and
Clamp Pads from the left and right hand Terminals.
If not already removed, loosen the Pointed Shroud Screw
and remove the Shroud by pulling forward.
NOTE: Before attempting to disassemble the Spray
Head always ensure that the mains power supply is isolated
and the wire has been removed from the pistol.
Contact Tip Support Tubes will need to be replaced
periodically. The frequency of replacement will depend upon
the wire used and adherence to maintenance schedule.
At this point the Contact Tubes can be removed and cleaned / replaced as necessary. The Contact Tubes can be removed by hand as
shown above. If experiencing difficulty in removing, use soft jaws.
NB: Drills should NOT be used to clean tubes as they are likely to increase the size of the Contact Tube, potentially reducing its life.
Loosen the Thumb Screw and remove the Hood. Check the
‘O’ Ring on the Air Cover for damage and replace as
necessary.
