Continue to remove the Contact Tips using the following technique:
Once satisfied, reassembly of the CG Spray from the point of the Contact Tip removal is a
reverse of the above procedure. All components must be cleaned in an appropriate de-
greasing agent and blow dried before replacing.
For complete disassembly instruction of the CG Spray Head please see Section 4.3.

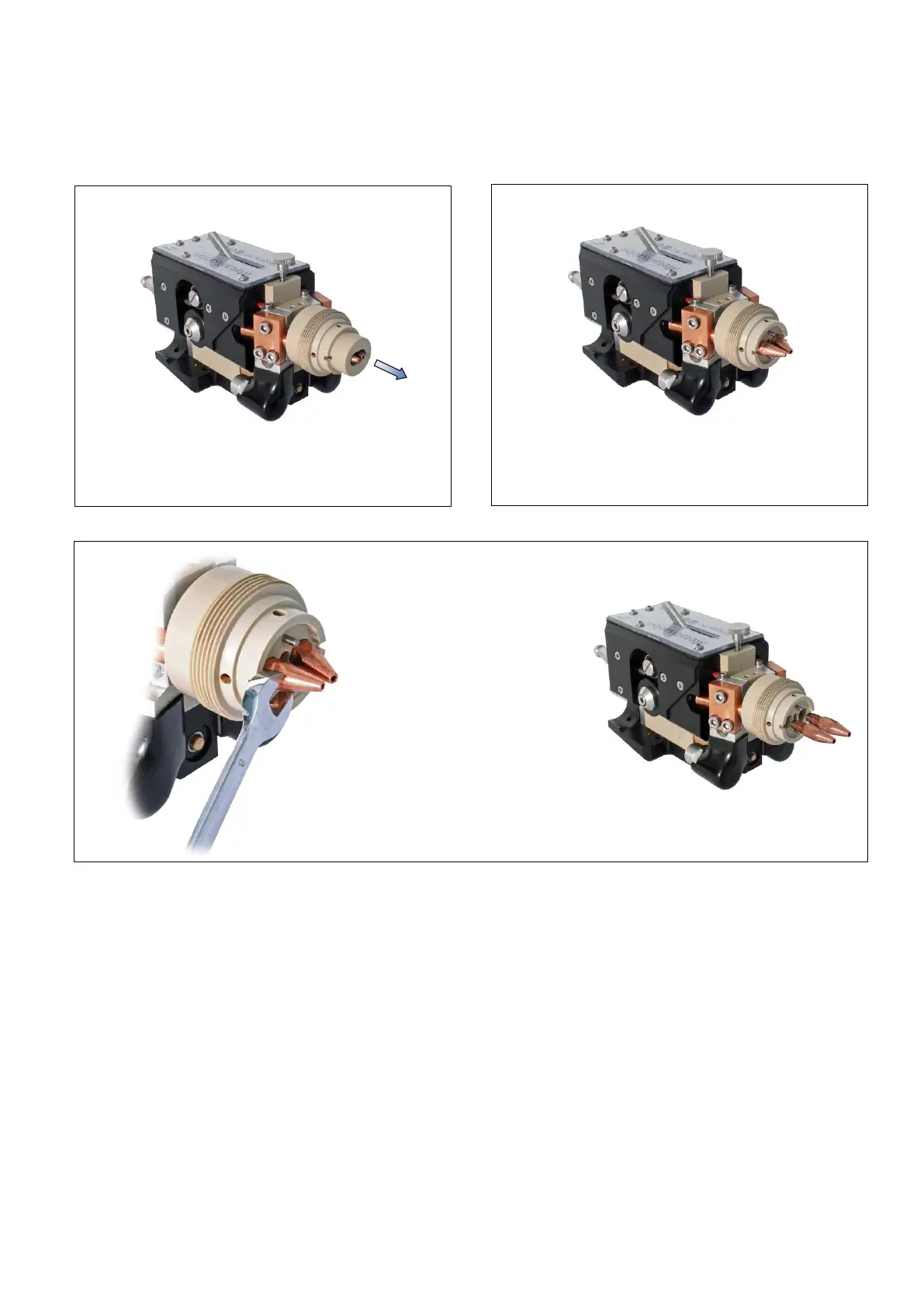

Remove the Air Concentrator by pulling forward.
At this point the Spray Head will look as shown and the
Contact Tips will be accessible.
Using a suitable
spanner, remove the
Contact Tips and
check for damage and
clean / replace as
necessary.
