Metallisation ARC150-2310D - Main Components

Page 44 of 48

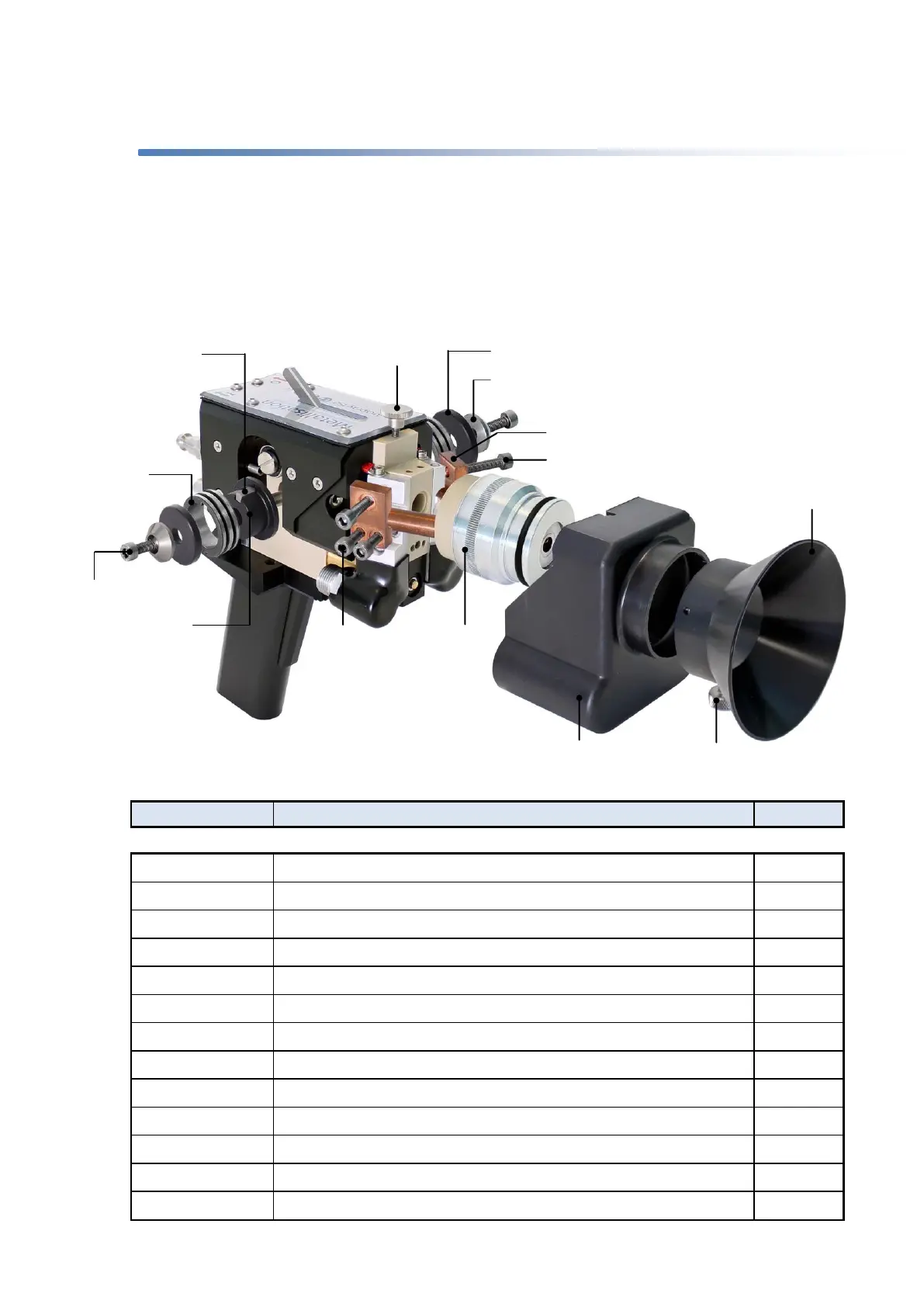

6.1 Main Components
For general operation only certain components should ever need to be dismantled and / or
replaced.
Periodically, more detailed maintenance will be required. For a complete Illustrated Parts
Listing of the ARC150 Pistol and Energiser please see the relevant Maintenance Manual.
PART NO.
DESCRIPTION
QTY
5503
Clamp Pad
2
5580
Pistol Roller Tyre Housing
2
5581
Pistol Roller Tyre End Cap
2
5582
Pistol Roller Tyre Drive Key
2
5583
Roller Tyre 2.3mm/2.5m Serrated 'V'
2
or 5584
Roller Tyre 1.6mm/2.0mm Serrated 'V'
2
6469
Screw
6
6471
Socket Head Screw
2
6713
Pointed Shroud Screw
1
6891A
New Shroud
1
7528
Hood
1
7546
Thumb Screw
1
7548
Roller End Cap
2
6891A
6713
7528
7548
6469
6471
5503
CG Spray
Head
7546
6469
5580
5581
5582
5583 /
5584
