NB: Before refitting the Spray Head onto the pistol, ensure that the contact areas on the
Terminals and Clamp Pads are clean and undamaged. Poor contact in these
areas can cause overheating.
Slide the Hood over the front of the pistol and tighten the
Thumb Screw.
Fit the Shroud onto the Air Cover and
tighten the Pointed Shroud Screw in the
direction shown.
NB: The Roller Guide Assy and Rear
Wire Guides can be removed for cleaning
/ replacing at any point as per Sections
4.6 and 4.7 respectively of this Manual.

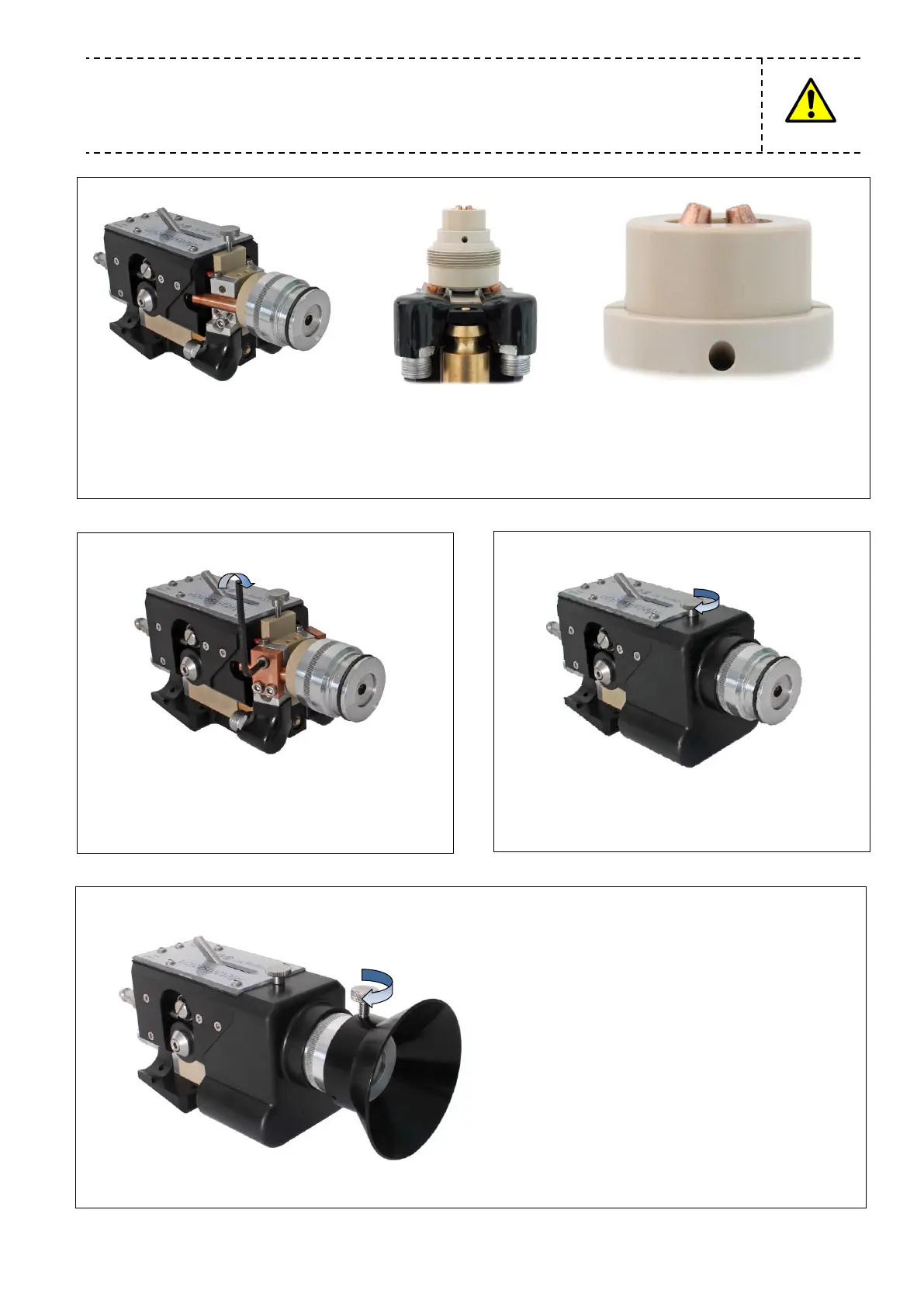

Re-fit the Clamp Pads, by pressing the CG Spray Head
against the Pistol. Fit the first Clamp Pad loosely and then fit
the second Clamp Pad. Tighten both by screwing in firmly but
NOT excessively. Excessive force will result in damage to the
Clamp Pads / Terminals.
Place the Spray Head against the front of the pistol. Ensure the Transfer Plug locates in the Contact Tube Support Block and the Contact
Tubes locate in the left and right hand Terminals.
It is important that the Contact Tubes are pushed fully through the Air Concentrator and that they are level with each other. If uncertain,
check this is the case by removing the Air Cover and Air Cap.
