Technical specifications
24

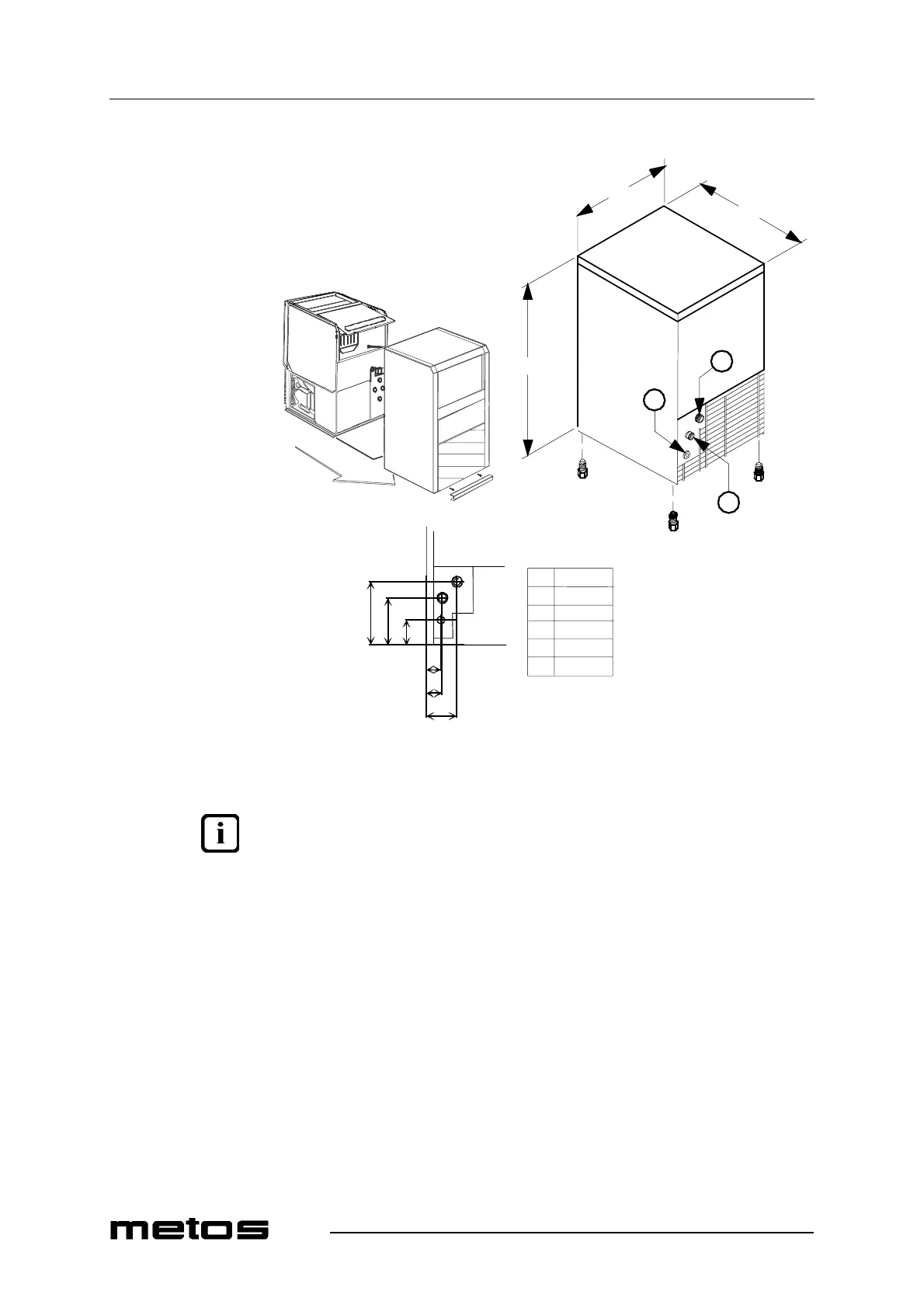

Installation diagram CB184 (valid from 2003.02.10)
1. Water drain pipe, diam. 24mm
2. Cold water connection, diam. 3/4” external thread
3. Electric connection
Look, Installation, place; Placing of appliance[184]
590 mm
1
2
3
355 mm
404 mm
1
2
3
D
B
F
E
A
C
A
B
C
D
E
F
45 mm
138 mm
88 mm
184 mm
41 mm
73 mm
