Locker Controller ELS & ELS SELECT Technical Manual

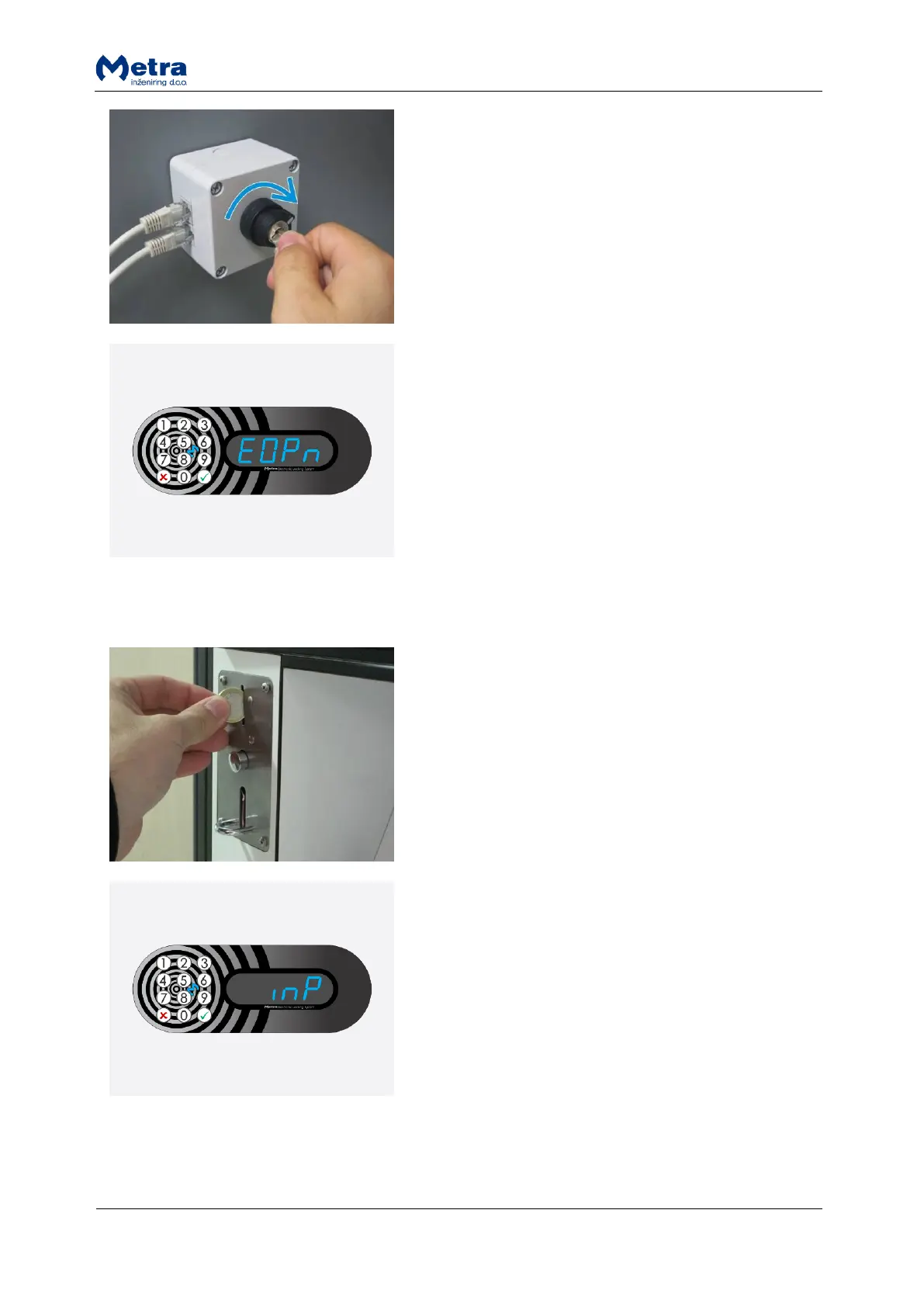

External: Turn the key on emergency open pushbutton

clockwise to initiate emergency opening of all Lockers.

Signalization: “EOPn” is displayed and all lockers

connected to the Locker Controller start to unlock and

open one after another and corresponding locker

numbers are displayed.

 Testing Coin acceptor

STEP 1: Insert coin in the coin acceptor.

STEP 2: When the coin is recodnized “inP” is displayed.
