MI 3125 / MI 3125E EurotestCOMBO Quick-test guide
13
3

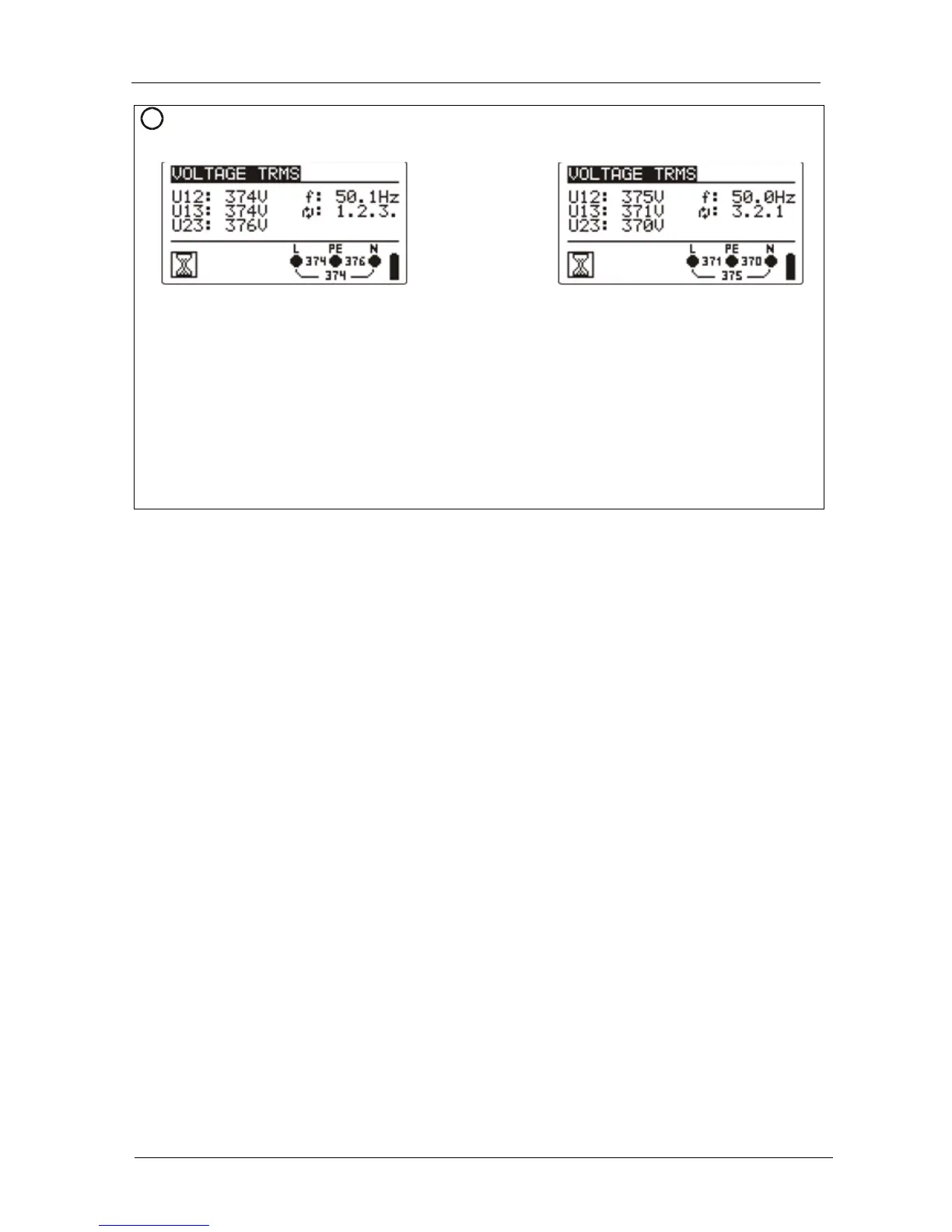

View results
Displayed results:
Ul(1)-n(2): Voltage between phase and neutral conductors (or between phases
L1 and L2)
Ul(1)-pe(3): Voltage between phase and protective conductors (or between
phases L1 and L3)
Un(2)-pe(3): Voltage between neutral and protective conductors (or between
phases L2 and L3)
1.2.3: Correct connection – CW rotation sequence,
3.2.1: Invalid connection – CCW rotation sequence,
f: frequency

Other manuals for METREL MI 3125

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the METREL MI 3125 and is the answer not in the manual?

METREL MI 3125 Specifications

General IconGeneral
TypeMultifunction Installation Tester
Insulation ResistanceYes
Continuity TestYes
Loop ImpedanceYes
RCD TestingYes
Voltage MeasurementYes
Frequency MeasurementYes
DisplayLCD
Power Supply6 x 1.5 V AA batteries
Loop Resistance Resolution0.01 Ω
Frequency45 - 65 Hz
Line Voltage Resolution1 V
Insulation Resistance Test Voltage50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Resistance Resolution0.01 MΩ
Continuity Resistance Resolution0.01 Ω
Test Current200 mA
DC VoltageUp to 600 V
Loop Resistance0.0 Ω - 1999 Ω
Line VoltageUp to 550 V
Line Voltage Accuracy±2% ±2 digits
Rated Residual Current10 mA, 30 mA, 100 mA, 300 mA, 500 mA
Insulation Resistance Range0.01 MΩ to 1 TΩ
Continuity Resistance0.0 Ω - 1999 Ω
Dimensions220 x 103 x 55 mm
Operating Temperature-10°C to 50°C
Storage Temperature-20°C to +60°C
Safety StandardsEN 61557
Loop Resistance Accuracy±(5% + 3 digits)
