METREL MI 3125 Short Instructions

MI 3125 / MI 3125E EurotestCOMBO Start-up guide
8

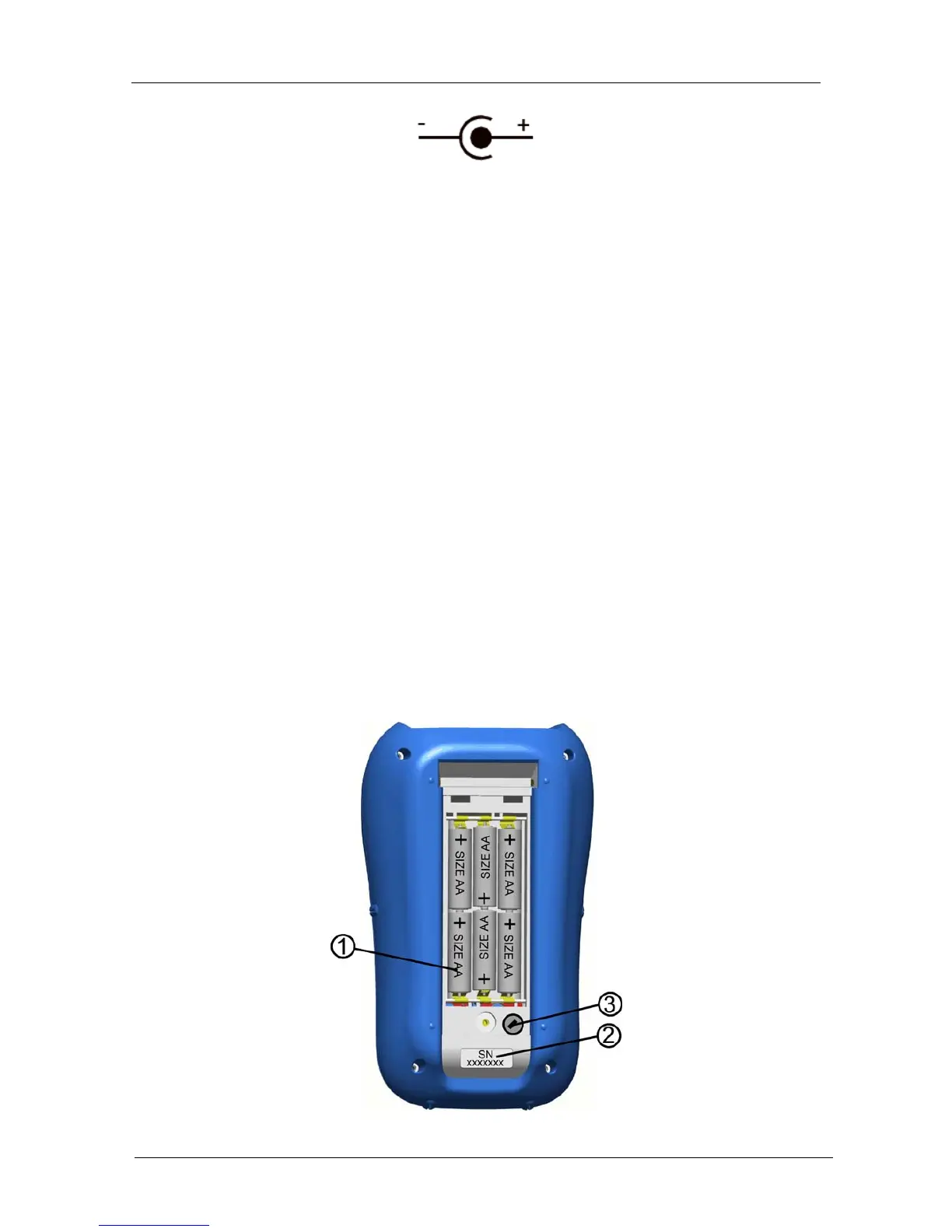

Power supply socket polarity
Note:
Only use the power supply adapter delivered from manufacturer or distributor of the test
equipment to avoid possible fire or electric shock!
1.6 Maintenance
1.6.1 Replacing fuses
Fuse
M 0.315 A / 250 V, 20 x 5 mm
This fuse protects internal circuitry of low-value resistance function if test probes are
connected to the mains supply voltage by mistake.
Warnings:
 Disconnect any test leads/accessories from the instrument and switch off the
instrument before opening battery/fuse compartment cover. Hazardous voltage
can exist inside the instrument!
 In case a fuse has blown in the instrument, follow the instructions in instruction
manual to replace it!
 Replace any blown fuses with exactly the same type of fuse. Inserting the wrong
fuse into the instrument can impair the operator’s safety and/or damage the
instrument.

METREL MI 3125 Specifications

General

Type	Multifunction Installation Tester
Insulation Resistance	Yes
Continuity Test	Yes
Loop Impedance	Yes
RCD Testing	Yes
Voltage Measurement	Yes
Frequency Measurement	Yes
Display	LCD
Power Supply	6 x 1.5 V AA batteries
Loop Resistance Resolution	0.01 Ω
Frequency	45 - 65 Hz
Line Voltage Resolution	1 V
Insulation Resistance Test Voltage	50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Resistance Resolution	0.01 MΩ
Continuity Resistance Resolution	0.01 Ω
Test Current	200 mA
DC Voltage	Up to 600 V
Loop Resistance	0.0 Ω - 1999 Ω
Line Voltage	Up to 550 V
Line Voltage Accuracy	±2% ±2 digits
Rated Residual Current	10 mA, 30 mA, 100 mA, 300 mA, 500 mA
Insulation Resistance Range	0.01 MΩ to 1 TΩ
Continuity Resistance	0.0 Ω - 1999 Ω
Dimensions	220 x 103 x 55 mm
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Safety Standards	EN 61557
Loop Resistance Accuracy	±(5% + 3 digits)
