2.4 Instrument connections
18
813 Compact Autosampler
Example for the interconnection of a modular Metrohm IC Sys-
tem:
813
732
733
709
753
752

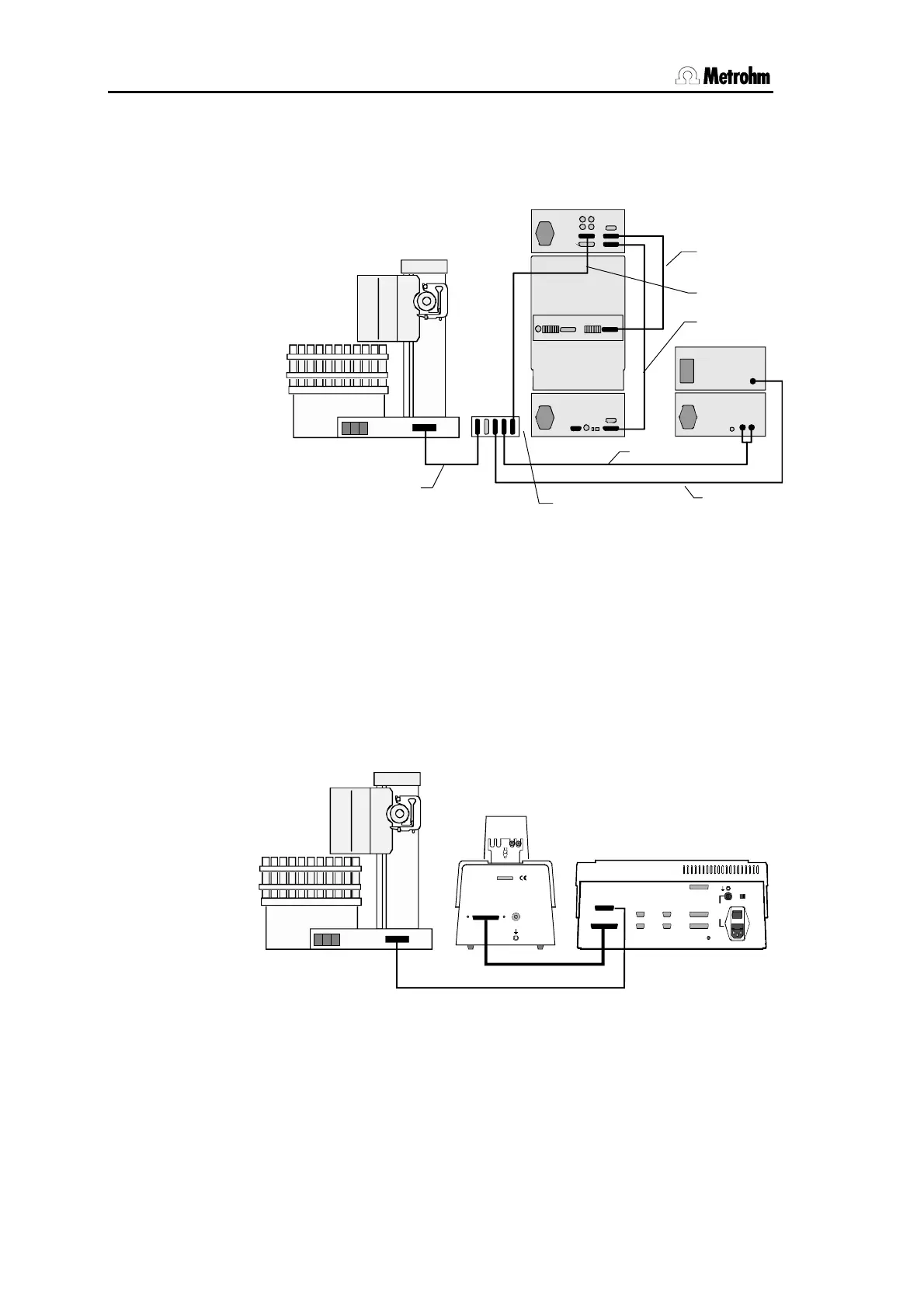

Fig. 13 Interconnection with a modular Metrohm IC System
2.4.3 Interconnection with a Metrohm 746 VA Trace Analyzer
The 813 Compact Autosampler is connected to a Metrohm 746
VA Trace Analyzer with 747 VA Stand using the 25 pin 6.2141.020
Remote cable. Connect the Remote cable to the 'Control lines'
socket of the Trace analyzer.
813
0
I
Control Lines
Prin ter
Exter nal Bus
Dos. 1
Dos. 2
Dos. 3
Dos. 4
RS 232 Interface 1
RS 232 Interface 2
Reset
2A(TH )
115V 230V
230V
746
External Bus Address
Made by Metro hm Herisau Switzerland
Type 1.747
Fig. 14 Interconnection with a Metrohm 746 VA Trace Analyzer
Kabel 6.2141.020
6.2125.090 cable
6.2125.060 cable
6.2125.090 cable
6.2125.120 adapter
6.2143.200 cable
6.2141.110 cable
6.2143.210 cable
