13.1.2
–
Settings for  X
The parameters for the  X signal define the conversion factor between the
analog output of the Autolab differential amplifier and the X input channel of the
FRA2/FRA32M.
For this application, set the name to Potential, set the Unit parameter to V and
specify a multiplier of -1 (see Figure 32).

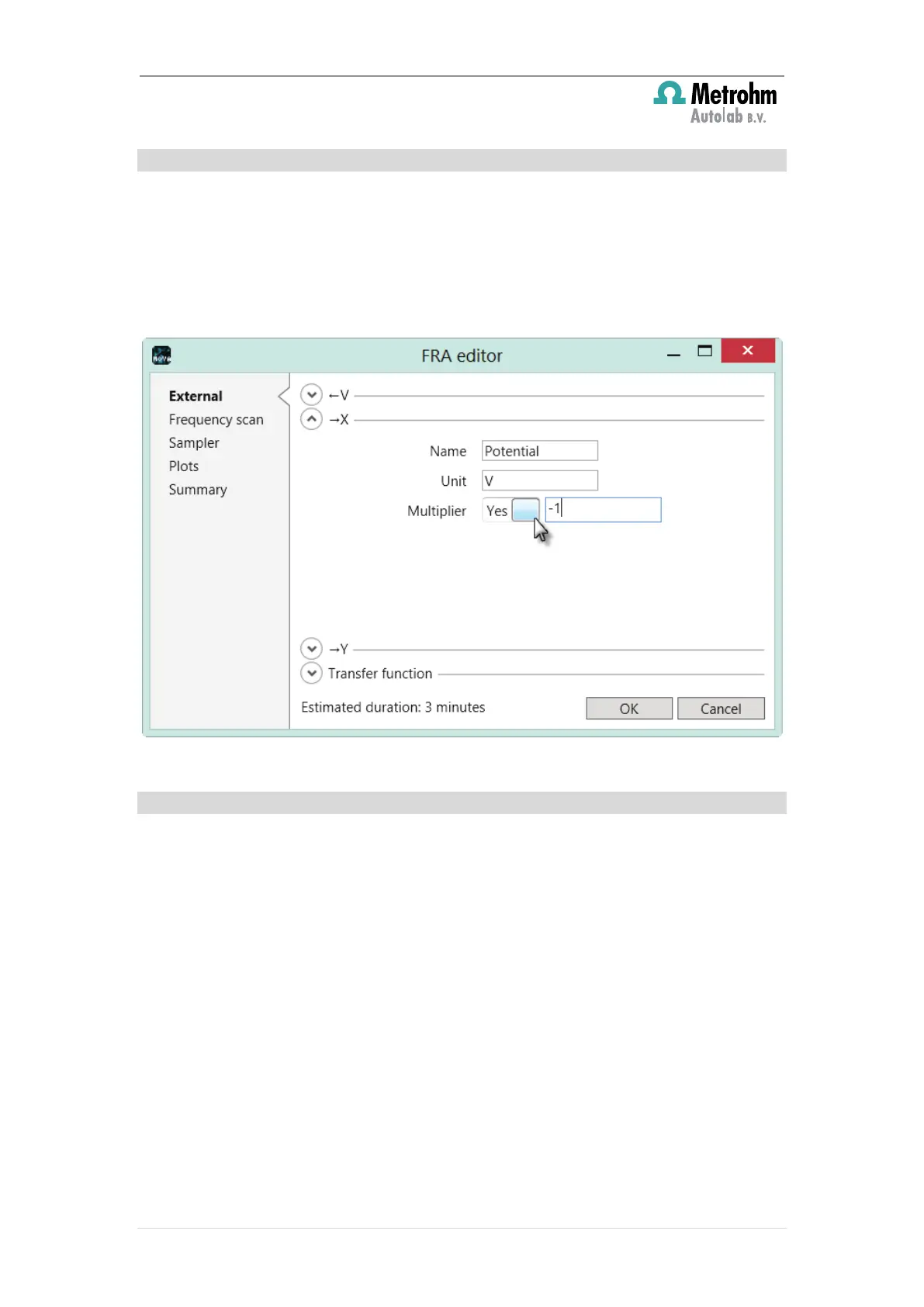

Figure 32 – Setting the parameters for the  X input
13.1.3
–
Settings for  Y
The parameters for the  Y signal define the conversion factor between the
analog output of the electronic load and the Y input channel of the
FRA2/FRA32M.
For this application, set the name to Current, set the Unit parameter to A and
specify a multiplier (see Figure 32).
