Autolab/Electronic load combination
45 | Page

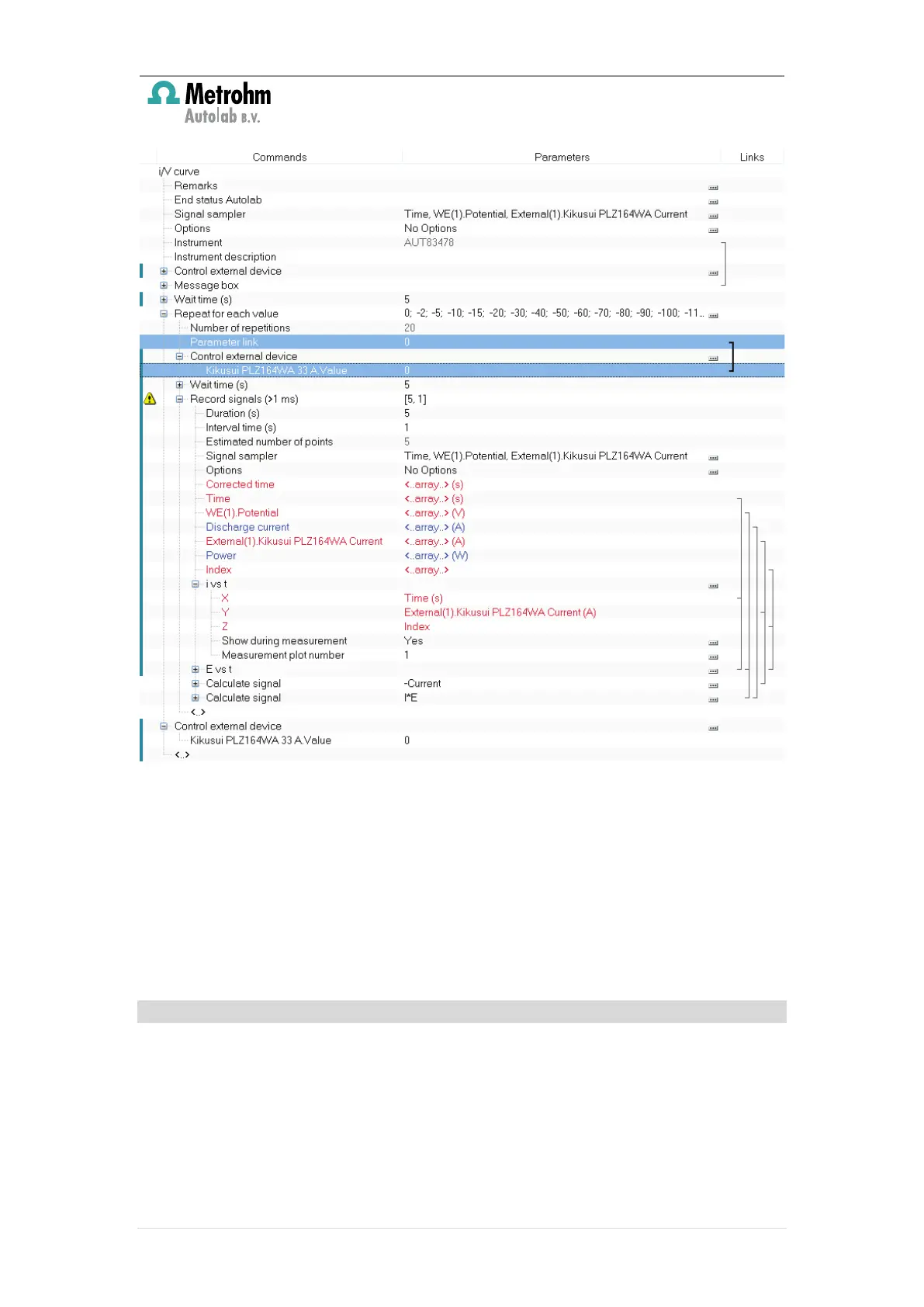

Figure 41 – Example of a complete procedure used to perform a i/V measurement using an
electronic load in combination with the Autolab
These commands are embedded into a
Repeat for each
value command used to
walk through different current values.
The
Calculate signal
command is used to calculate the power so that it can be
plotted against the discharge current.
For more information, please refer to the NOVA user manual.
– Impedance spectroscopy measurement
The combination of the
Control external device
command and the
FRA
measurement external
command provides the backbone for a complete
impedance spectroscopy measurement, as shown in Figure 42.
