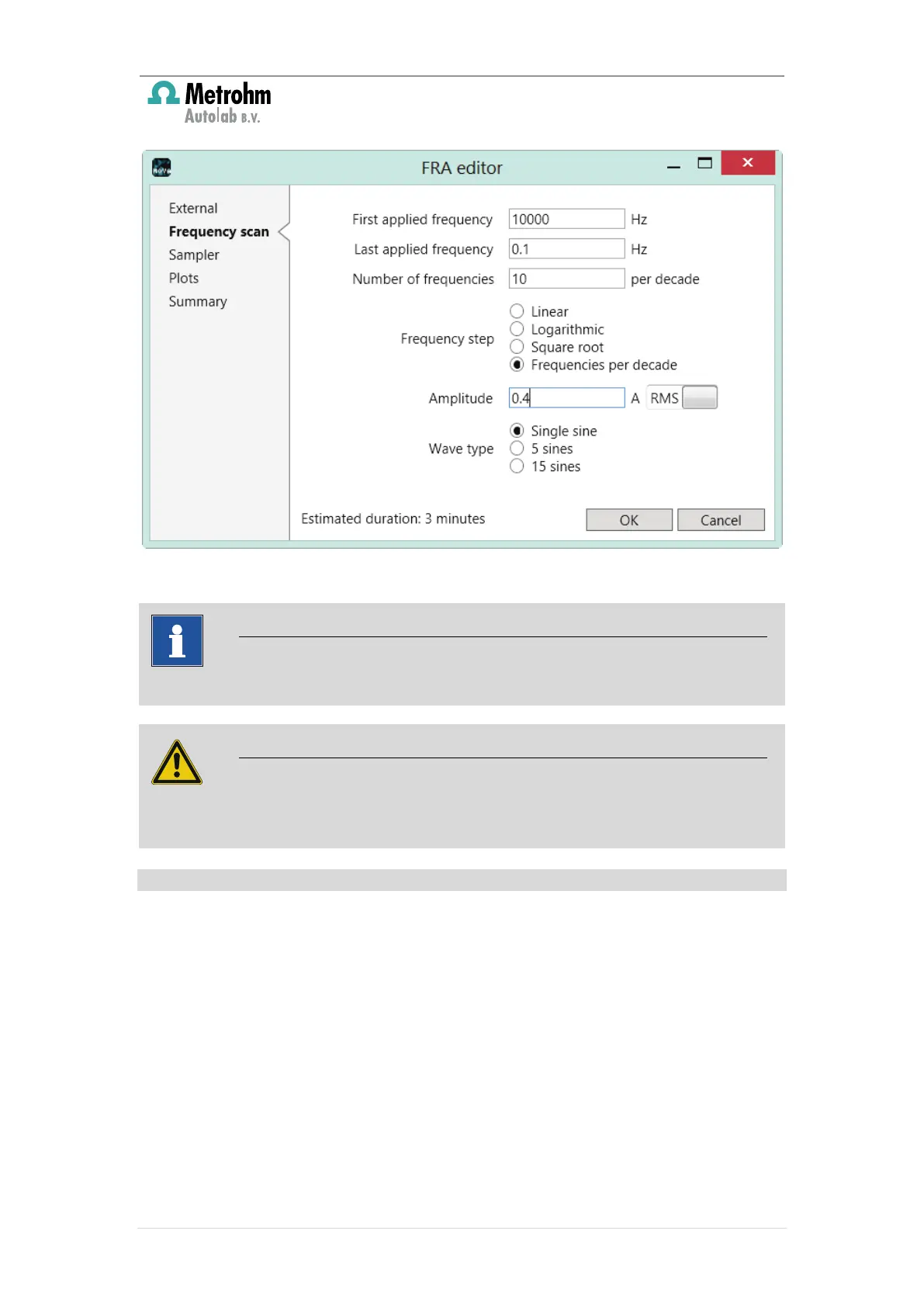

Figure 35 – Defining the settings for the frequency scan
13.3
– Sampler settings
The parameters on the
Sampler
section of the FRA editor window are related to
the signals to sample during the impedance spectroscopy measurement and the
acquisition parameters (see Figure 36).
Note
The amplitude value is specified in
absolute values
.
Warning
Make sure that that the amplitude defined in the FRA editor is smaller than the
DC setpoint of the electronic load!
