Mettler Electronics DECKMATE 2888 - Support Frames

Chapter 1: Specifications
Support Frames
(10/96)
1-5
Support Frames
“Standard Platform”
Standard Deckmate platforms utilize a support frame under the platform
for maintaining position of the platform. (see Figure 1-c). The model
2888 platforms are used for top-of-floor installations and can be used
with optional ramps for access to one or both ends of the platform (see
Figure 1-c).

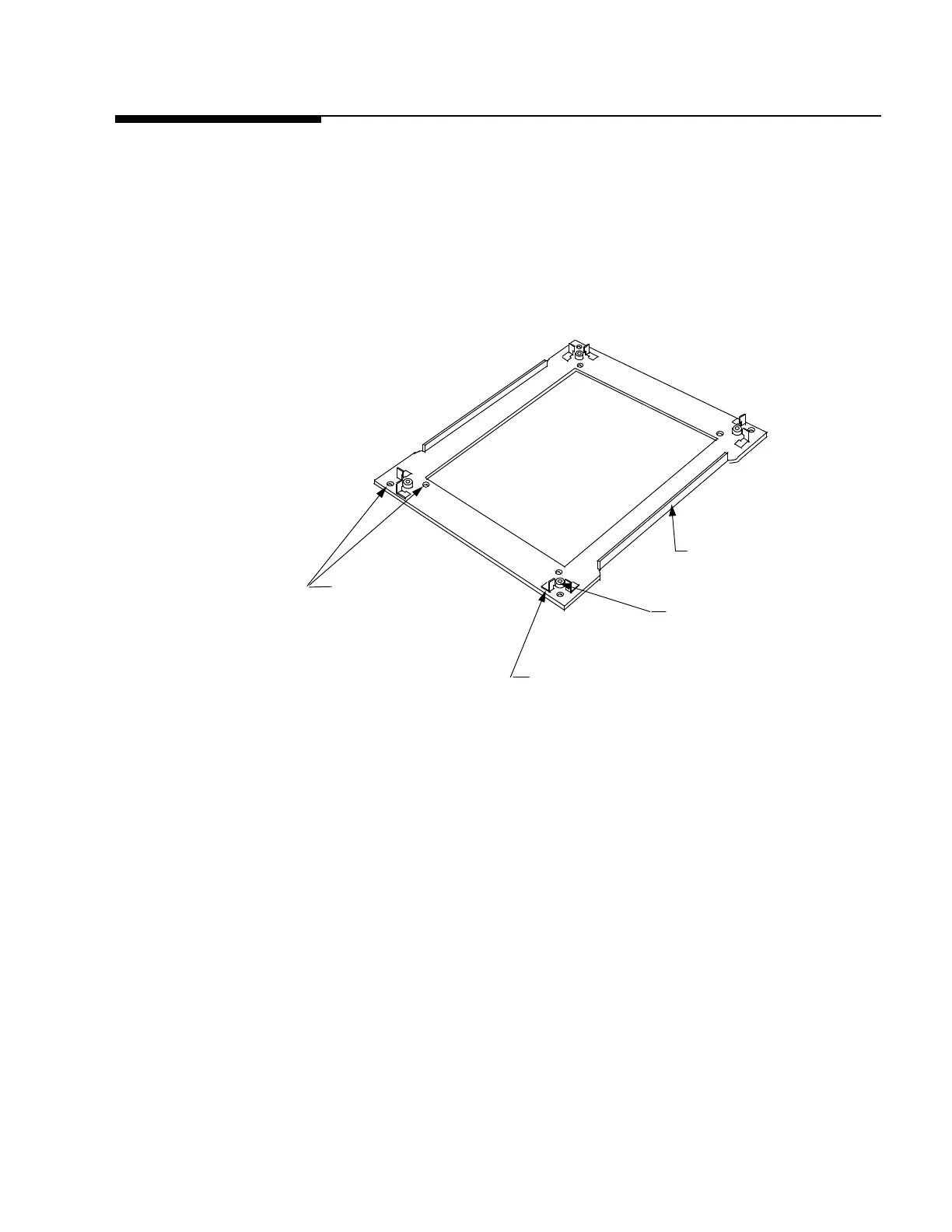

MOUNTING HOLES
TYPICAL EACH CORNER
RAMP MOUNTING BAR
AT BOTH ENDS OF SCALE
ROCKER PIN RECEIVER
TYPICAL EACH CORNER
BUMPER BRACKET
( 2) EACH CORNER
Figure
1-c
: Support Frame
