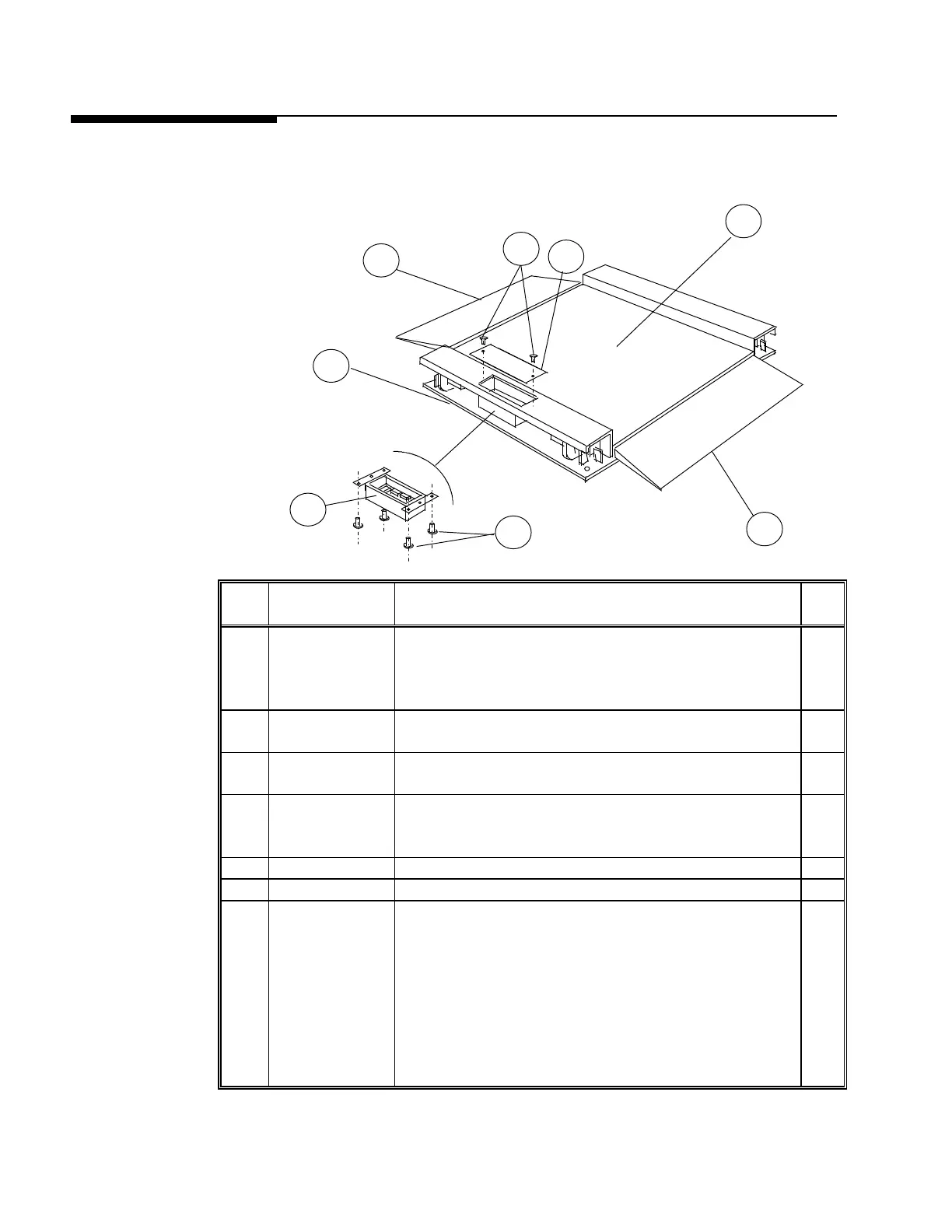

Static Platform Parts
Static Platform Parts
1
2
4
7
7
3
5
6
Ref.
No. Part Number Description Qty.
1 TC202770-1
TC202770-2
TC202780-1
TC202780-2
Platform, Mild Steel Tread Plate
Platform, Mild Steel Smooth Plate
Platform, Stainless Steel Tread Plate
Platform, Stainless Steel Smooth Plate
1
2 TB202771
TB202781
Frame, Mild Steel
Frame, Stainless Steel
1
3 TN203054
TN203055
Junction Box Lid, Mild Steel Scale
Junction Box Lid, Stainless Steel Scale
1
4 TB100520 Junction Box Assembly
Consists of: *14378800A Analog PCB
TA800218 Desiccant Pack
1
5 TN100524 10-32 Fl. Hd. Screw S.S. x 5/8" Lg. 2
6 MZ0901010407 10-32 Ph. Hd. Screw S.S. x 3/16" Lg. 4
7 TA202775-1
TA202775-2
TA202785-1
TA202785-2
TA202776-1
TA202776-2
TA202786-1
TA202786-2
Ramp x 6" Lg. (Optional) Mild Steel Tread Plate
Ramp x 6” Lg. (Optional) Mild Steel Smooth Plate
Ramp x 6" Lg. (Optional) Stainless Steel Tread Plate
Ramp x 6" Lg. (Optional) Stainless Steel Smooth Plate
Ramp x 12" Lg. (Optional) Mild Steel Tread Plate
Ramp x 12" Lg. (Optional) Mild Steel Smooth Plate
Ramp x 12" Lg. (Optional) Stainless Steel Tread Plate
Ramp x 12" Lg. (Optional) Stainless Steel Smooth Plate
var.
*May have an alpha prefix.
