Mettler Electronics DECKMATE 2888 - Chapter 8: Service Parts; Load Cell and Suspension Parts

Chapter 9: Service Parts
Load Cell and Suspension Parts
(10/96)
8-1

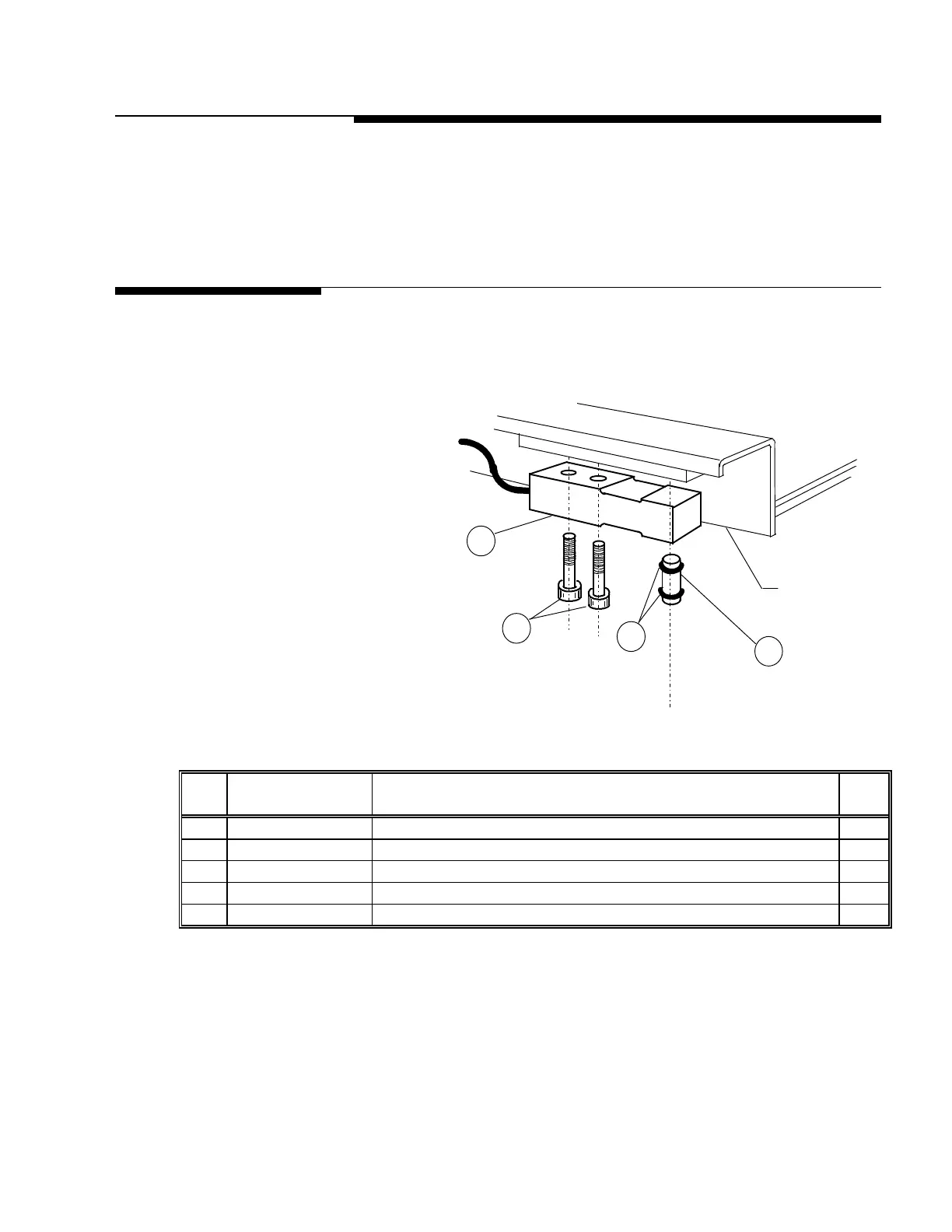

8 Service Parts
Load Cell and
Suspension Parts
1
2
3
Scale Platform
*
*Note:
Torque Load Cell Bolts
to: 100 ft-lb (Mild Steel Scales)
75 ft-lb (Stainless Steel Scales)
4
Ref.
No. Part Number Description Qty.
1 TB600529-1 500 lb load cell (5000d) with 4 ft. cable 4
2 MZ0901010333 1/2-13 Soc. Hd. Screw x 1 3/4” Lg. (Mild Steel Scale) 8
MZ0901010384 1/2-13 Hex. Hd. Screw S.S. x 1 3/4" Lg. (Stainless Steel. Scale)
3 TN200050 Rocker pin 4
4 MZ0909000005 O-ring, 70 Dura BUTA “N” 8
Notes:
Proper Overload Gap
0.009 in - 0.014 in
(.228 mm - .356 mm)
