METTLER TOLEDO 2888 Deckmate Floor Scales Installation and Service Manual
(10/96)
3-2
CORNER ANCHORING
HOLES
( 2 ) 1/2 -13 DROP IN ANCHORS
6.00 in
(152mm)
2.75 in
(69.9 mm)
1.62 in
(41.1mm)
( 2 ) .75 in (19.0 mm)
DIA. HOLE
5.62 in
(142.7 mm)
2.00 in
(50.8 mm)
2.75 in
(69.8 mm)

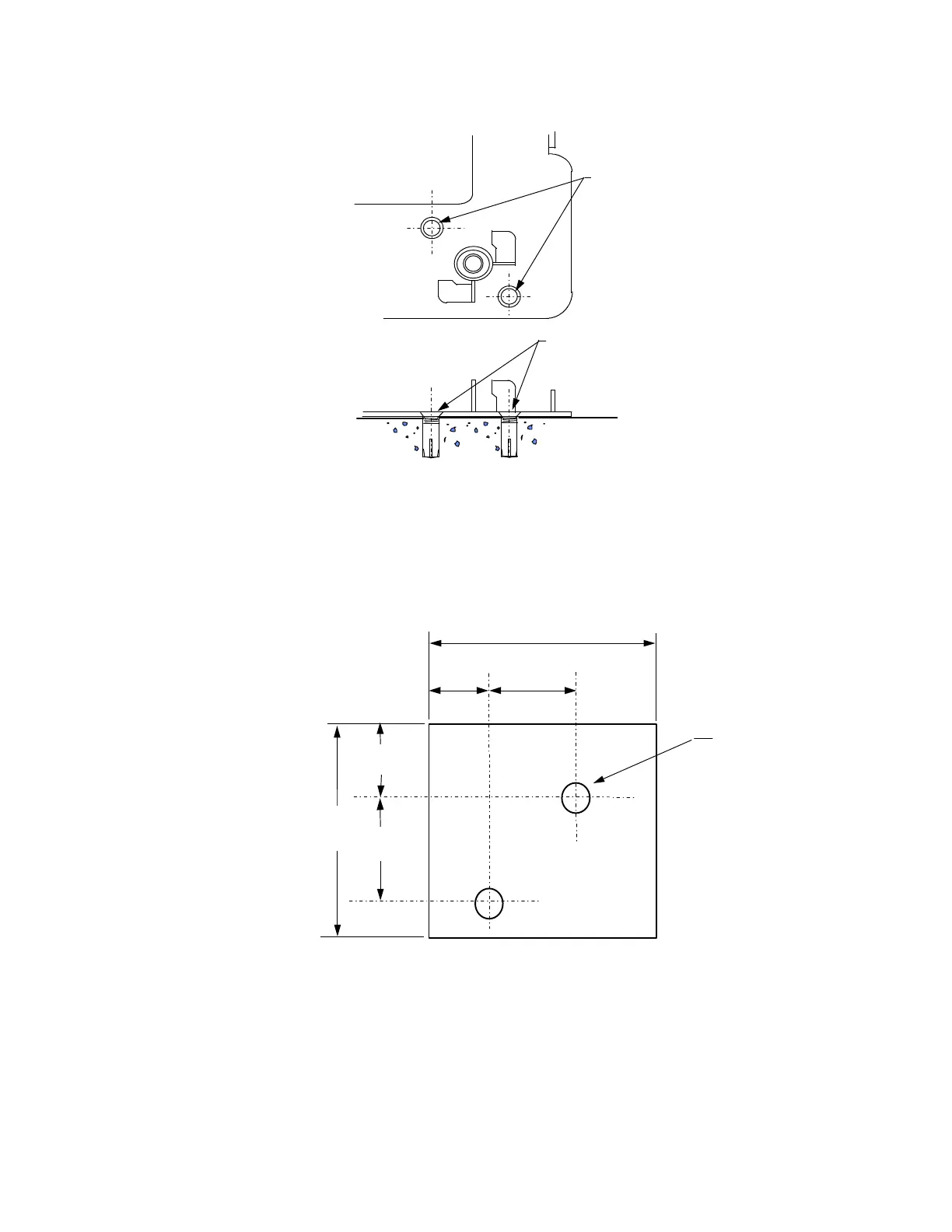

Figure 3-a
: Frame Anchoring - Typical Each Corner
Figure 3-b: Leveling Shim Detail
