Configuration
6.3.2 Software Configuration - Single Stage with Basic Reporting Addressing

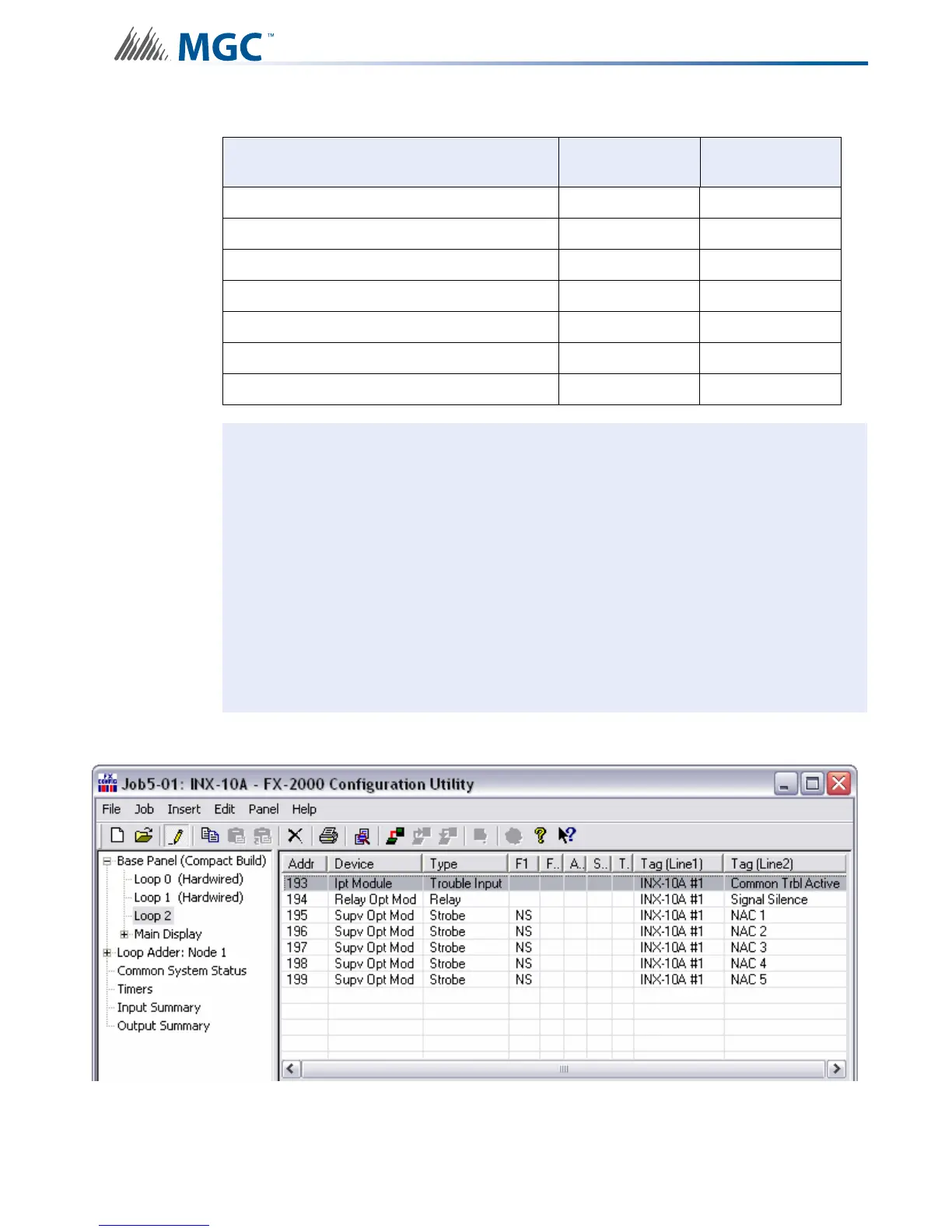

Figure 15 FX-2000 Configurator Settings - INX-10A Single Stage with Basic Reporting
Table 10 Configuring Single Stage Functions
Function Address Recommended
Device Address
Common Trouble Base Address 93
Signal Silence Base Address + 1 94
Activate NAC1, return NAC1 line status Base Address + 2 95
Activate NAC2, return NAC2 line status Base Address + 3 96
Activate NAC3, return NAC3 line status Base Address + 4 97
Activate NAC4, return NAC4 line status Base Address + 5 98
Activate NAC5, return NAC5 line status Base Address + 6 99
Notes: Table 10 represents all NACs configured as NAC circuits.
Mircom recommends always using the upper range of addresses available for
the INX-10A.
When adding devices to FX-2000 and MR-2100/2200/2900 configurations, add
100 to the recommended device address (see Figures 15 and 16).
When adding devices to FX-3500/3500RCU and MR-2350 configurations, add
200 to the recommended device address (see Figure 17).
If any NAC circuit is configured as a Power Supply, see 6.3.5 Single Stage with
Basic Reporting and Power Supply Output Addressing for an explanation on
addressing.
