7.2.8 Relay Contact Activation from FACP - Single Stage

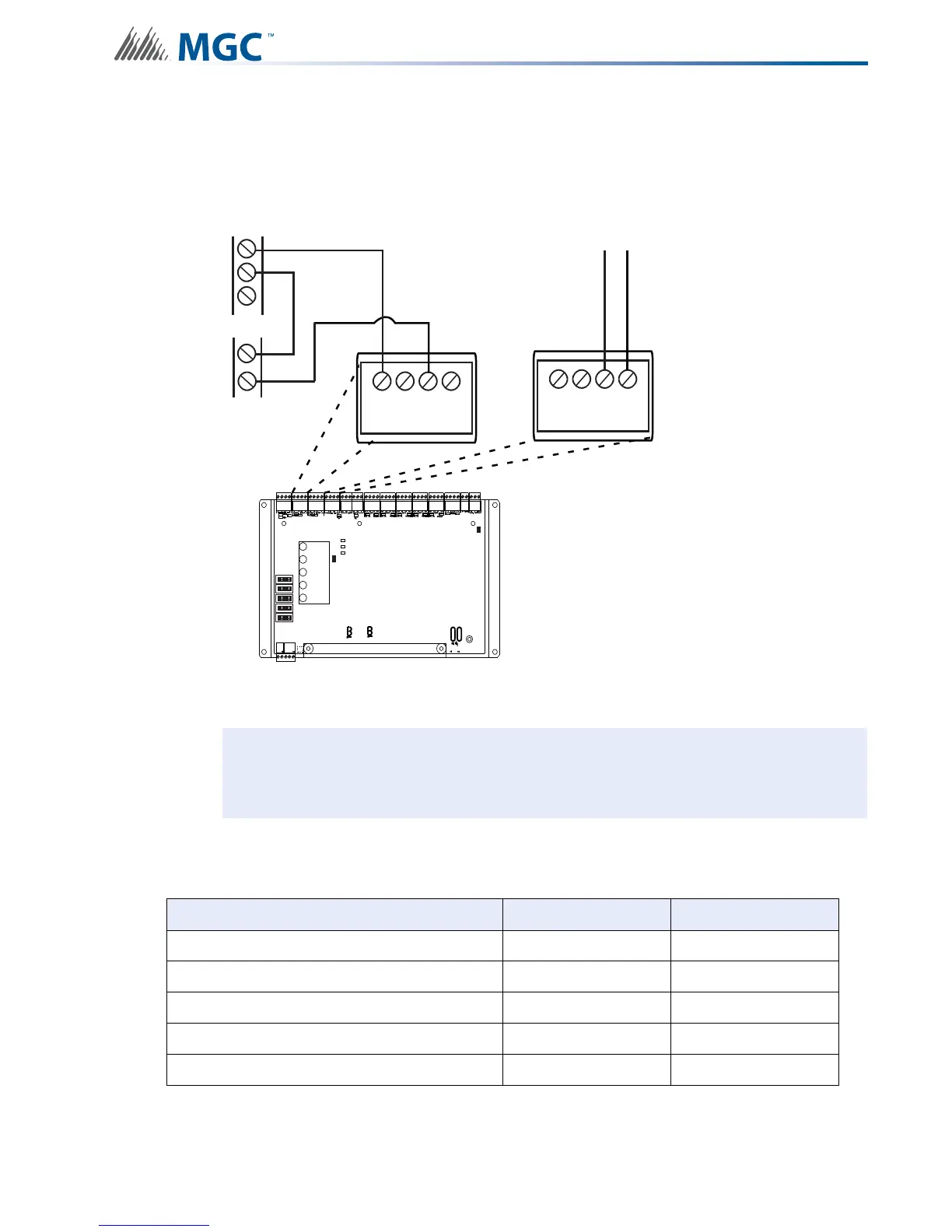

Figure 48 Relay Contact Activation from FACP - Single Stage
Attention: DO NOT USE AN SLC LOOP IN THIS APPLICATION.
Disable the addressable loop by setting DIP switch SW1 to all 0 (OFF).
Table 22 Difference between features provided by SLC Interface and Contact Interface
Feature Description SLC Interface Contact Interface
All Call N/A N/A
NAC by NAC activation Yes No
NAC circuit trouble reporting Yes No
Common trouble reporting Yes Yes
Enhanced trouble reporting Yes No
RELAY CONTACT ACTIVATION FROM FACP - SINGLE STAGE
-
+ +
--
SYNCH INPUT1
1 8
1 8
1 8
1 8
1 8
POWER ON
ADD. LINE
ACTIVITY/
ALARM
COMMON
TROUBLE
CPU FAIL
BATTERY/
CHARGER
TROUBLE
JW1
P
P3 P4 P1 P2
AUX OUTPUT TROUBLE
SYNCH. OUT TROUBLE
GFAULT
JW2
MAIN DISPLAY PANEL
ACK.
BUTTON
FACP
Alarm
Relay
COM
NO
NC
+
-
Aux
Power
TROUBLE RELAY
NONC CP
To FACP input
congured for
trouble
!
