MGC INX-10A Series - 7.3 Power Supply Connections

89
Wiring
7.3 Power Supply Connections
The power supply is preinstalled as part of the Main Chassis. The following table displays the
electrical ratings. Figure 54 Power Supply Connections shows the proper connections to wire
the Power Supply successfully.

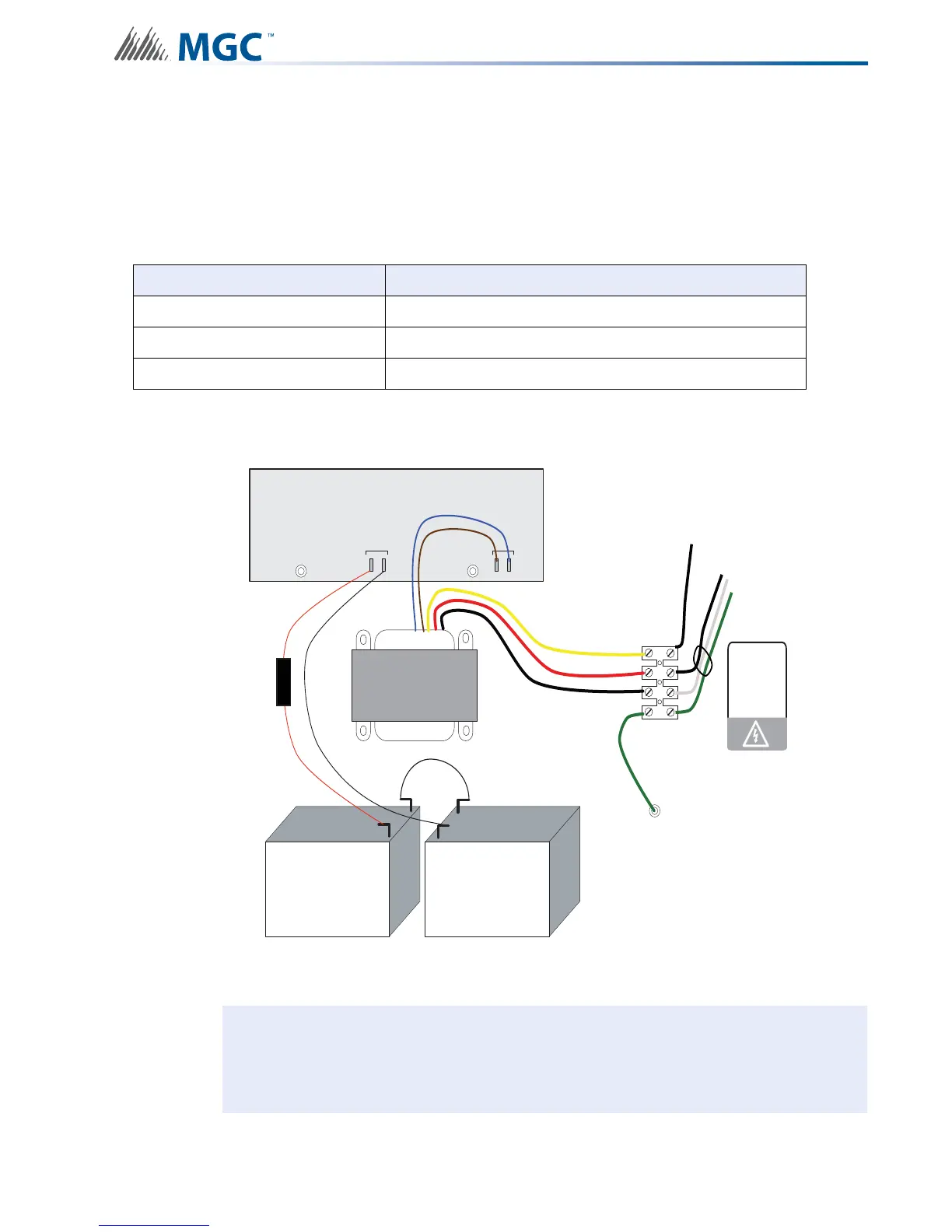

Figure 54 Power Supply Connections
Table 23 Power Supply Electrical Ratings
Connector/Jumper Description
Electrical input ratings 120 VAC, 60 Hz, 2 A / 240 VAC, 50 Hz, 1A
Power supply total current 10 A maximum
Battery Fuse Replace with WX-058 Battery Cable Assembly
Attention: DO NOT exceed power supply ratings. Wire as shown using proper wire
gauges.
Connect batteries after the system main A.C. power is turned on to reduce
sparking.
P1 P2
P3 P4
+
_
BATTERY
SEC. TX
+
+
_
_
Battery Battery
red
green
blk
yellow
240 VAC 50Hz
120 VAC 60Hz
N
GND
brown
blue
black
red
black
blk
green
white
To AC Input
EARTH
GROUND
LUG
120 VAC
240V
WX-058 Cable Assembly
!
