MGE UPS Systems Pulsar Evolution 1100 - 800;1100;1500 Rack Models

P U L S A R
Evolution
1500 Rack
3400723200/AC - Page 13
2. Installation

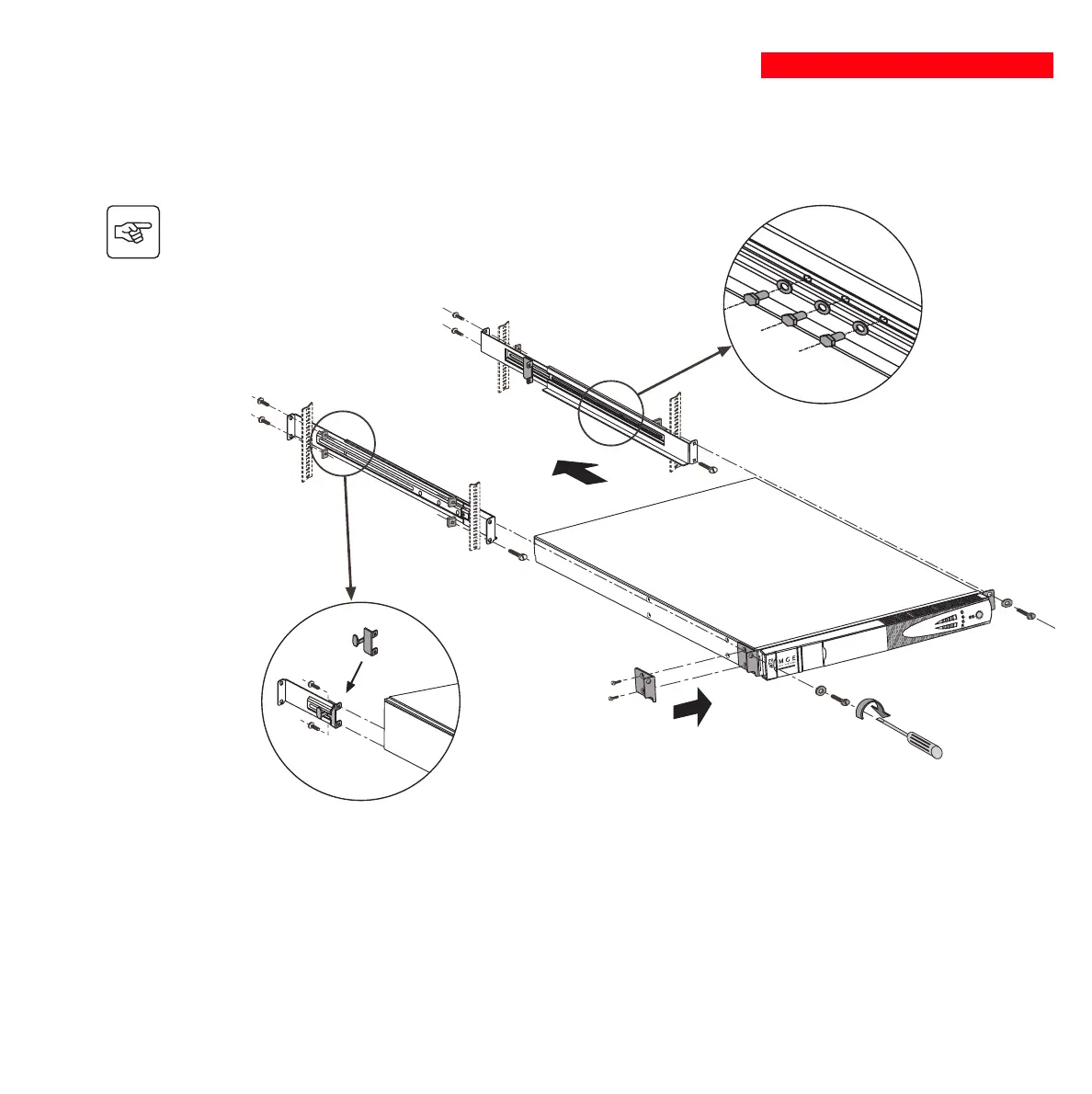

Follow steps 1 to 6 for rack mounting of the UPS on the rails.
The rails and the necessary mounting hardware are supplied by MGE UPS SYSTEMS.
For step 1, screw quantity shown is for 1500 VA. 800 and 1100 VA use two screws for each side.
1
2
2
2
2
5
3
6
6
5
4
3
800/1100/1500 Rack models
