Chapter 3. Testing Board Features
This section describes the working principles and limitations that should be taken into
account when using the board with the dedicated PC application, as well as the actual
steps to use all of the demonstration kit’s features.
It is assumed that the user has already successfully run the installation process
described in Section 2.2 “Board Setup”.
3.1 ABOUT THE MPC2221 I
2
C DEMO BOARD APPLICATION
The PC application for the device is named the MCP2221 I
2
C Demo Board Application.
The three main sections that can be observed in Figure 3-1 are the Feature tabs,
General Information panel and Setup area.

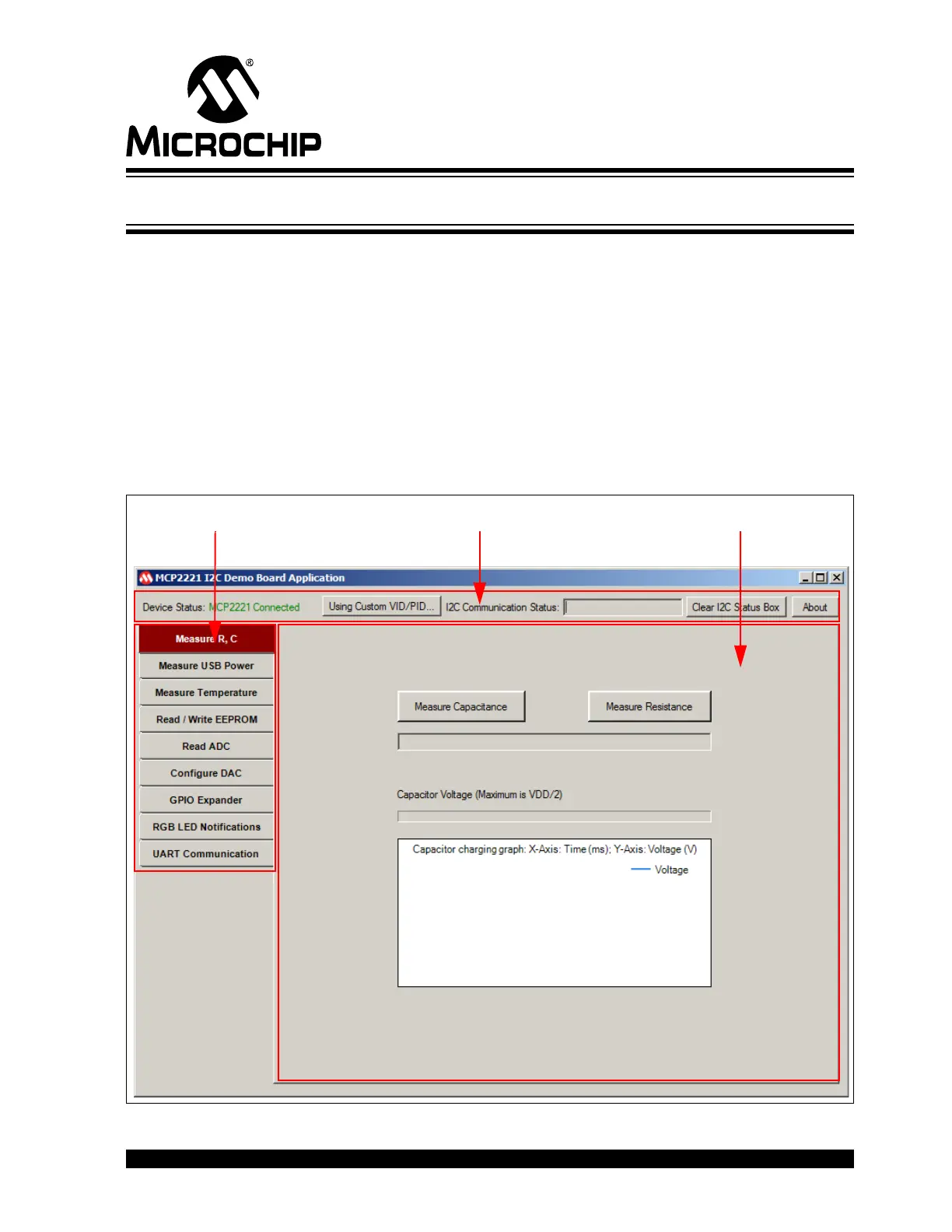

FIGURE 3-1: THE MCP2221 I
2
C DEMO BOARD APPLICATION – INITIAL VIEW
Setup Area
General Information Panel
Feature Tabs
To Next Page
