Microchip Technology MPLAB PICkit 4 User Manual

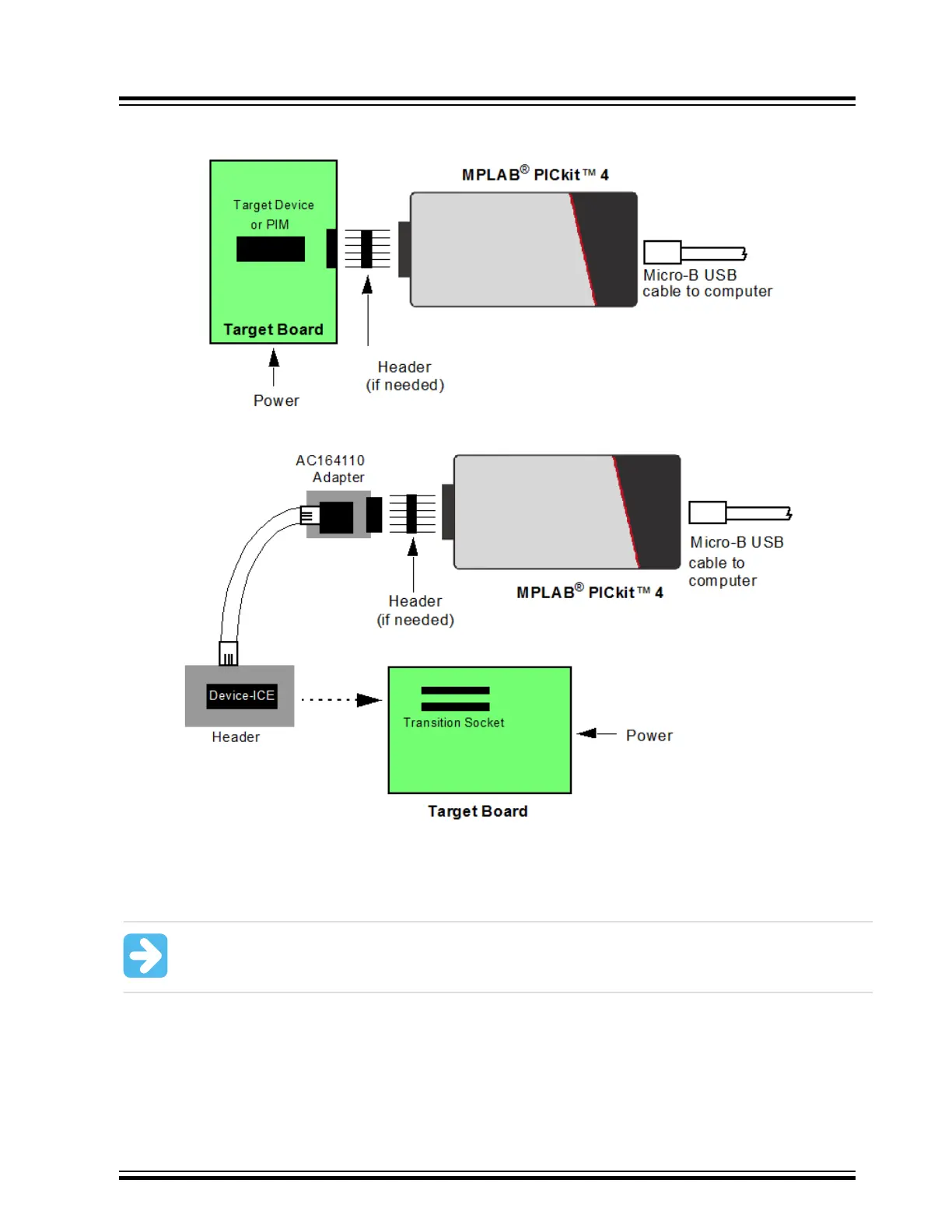

Figure 3-1. Standard Debugger System – Device With On-board ICE Circuitry
Figure 3-2. Standard Debugger System – ICE Device
3.2 Target Communication Connections
Important: Refer to the data sheet for the device you are using as well as the application notes and the
specific interface for additional information and diagrams.
3.2.1 Standard Communication Target Connection
USING SINGLE IN-LINE CONNECTOR
Use the single in-line connector between the MPLAB PICkit 4 In-Circuit Debugger and the target board connector
(see Figure 3-1 and Standard Communication).
Operation
© 2020 Microchip Technology Inc.
User Guide
DS50002751D-page 11
