ASSEMBLY
STEP 5
Brass Inserts
Balance Support
6

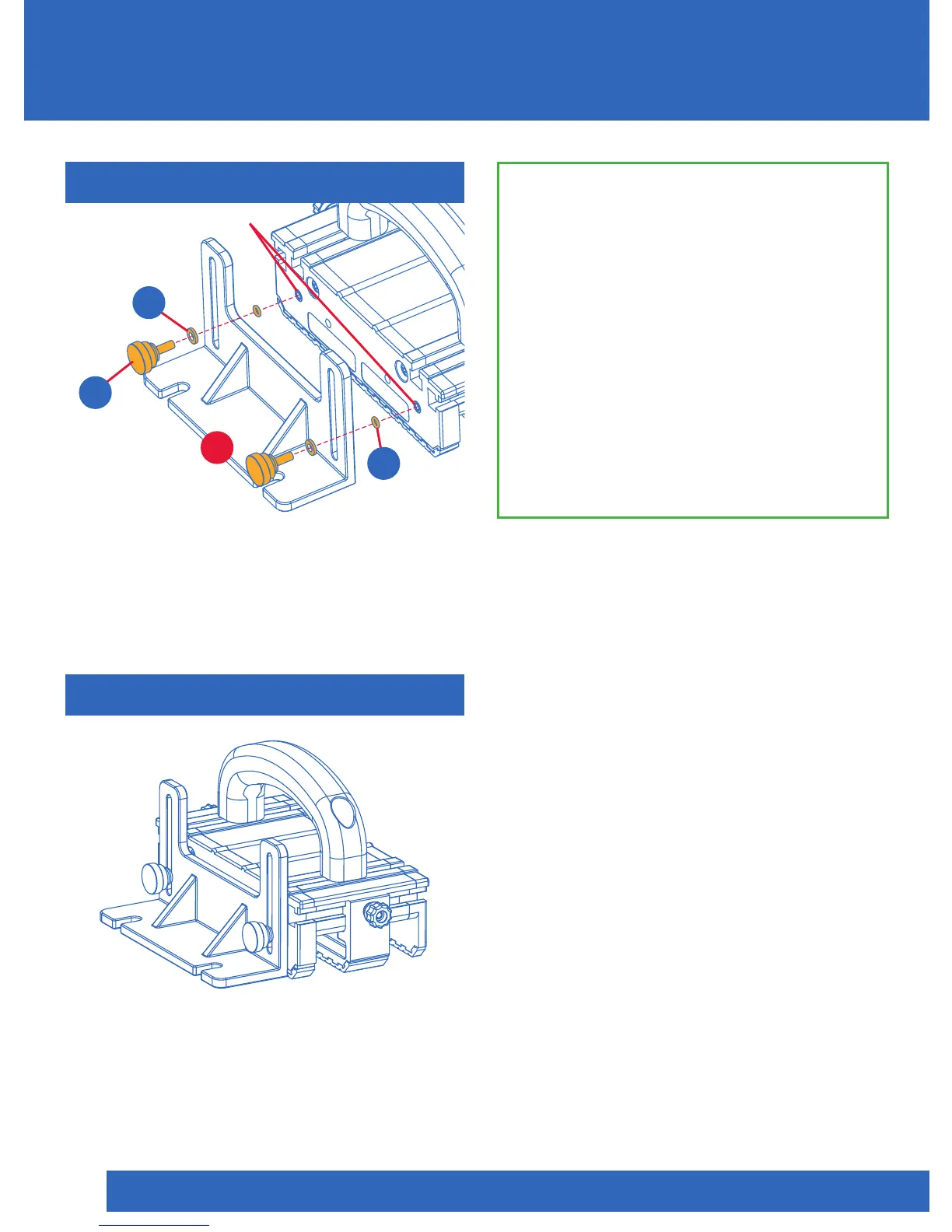

1. Attach Thumb Screws (E2) to Balance
Support (6). 2. Assemble Balance
Support (6) to either Basic Model GR-100
completed Side Leg (4) or (5).
INFO: If you purchased the GRR-RIPPER
Advanced Model GR-200 or the Upgrade
Kit GRAK-404, please proceed to Step 6
on Page 11.
TIP: To keep the non-slip pads
working most effectively, clean the
contact surfaces with denatured
alcohol or 91% rubbing alcohol and a
shop rag prior to use. Repeat cleaning
during use as necessary when saw
dust accumulates. Do not use if Green
GRR-RIP is not effectively gripping the
workpiece. Please contact MICROJIG in
regards to product issues.
E2
x2
A
x2
C
x2
COMPLETED GR-100
Figure 9
Figure 10
To Next Page
