INFO: All table saw illustrations in this instruction manual show a 1/8” kerf saw blade
and a rip fence that is secured parallel and to the right of the saw blade.
Inside Cut = Cut between rip fence and the saw blade, is usually the keeper piece.
Outside Cut = Cut on the left side of saw blade, is usually the off-cut piece.
HOW TO USE
Figure 17
Using the Balance Support (6) against
the fence will provide an additional
2” of cutting width. The Adjustable
Spacer (8) can be used on the left as a
balancing device.
Skew Handle (1) to exert “auto” pressure against
the fence when pushed.
BALANCE SUPPORT SPACER
Add a wooden spacer
for thicker stock - use #8 pan head
wood screws & washers (not included).
Adjustable
Spacer

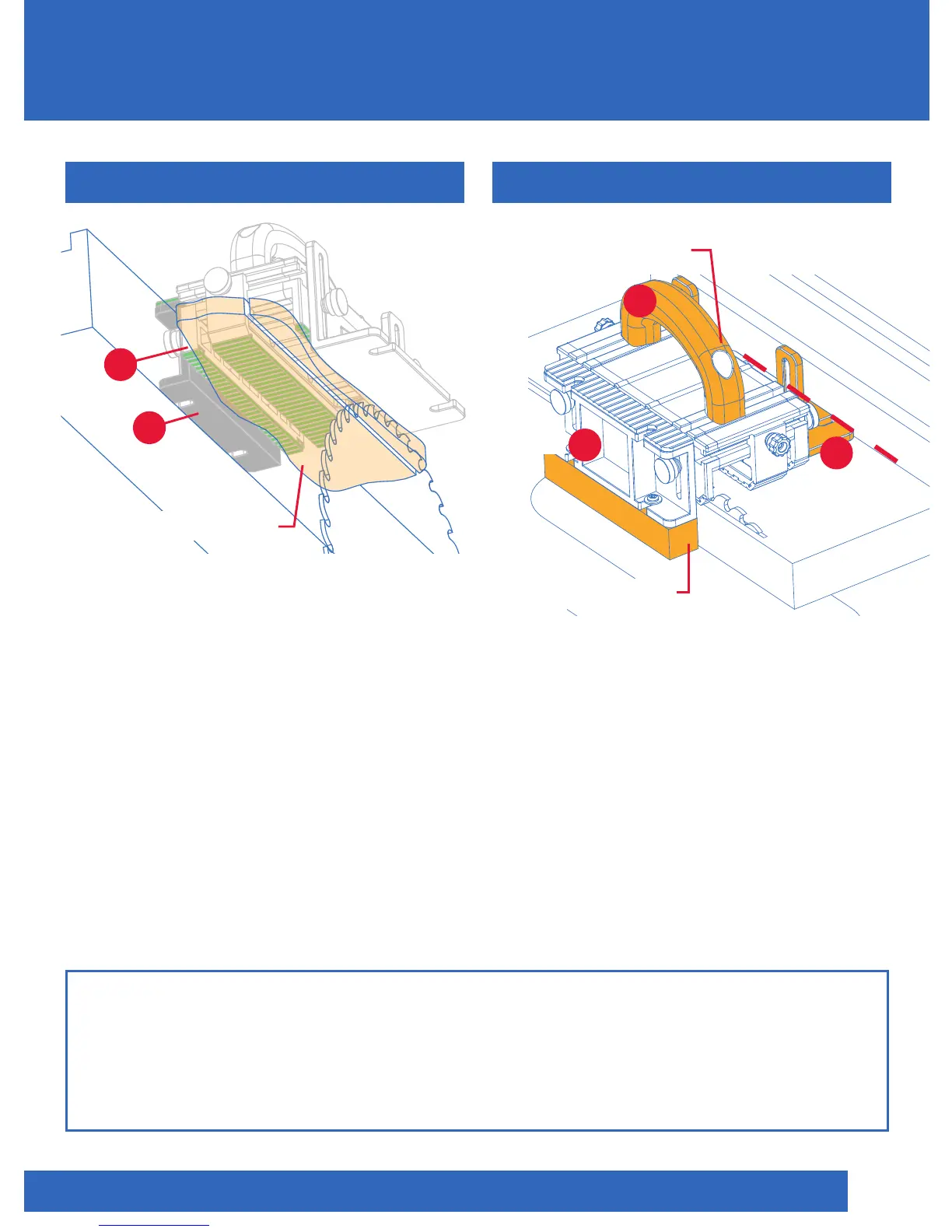

INFO: This is a translucent bottom
view with the table saw top removed
for clarity. The GRR-RIPPER GR-200 is
feeding irregularly shaped stock to obtain
a straight edge. Notice the 1/2” Leg (5)
does not cover the stock edge completely.
The Adjustable Spacer (8) is used with
the smooth side down and leveled with
table top to prevent the tool from tipping
over and to glide against the rip fence for
a parallel feed. INFO: Watch the online
video: bit.ly/straight-line-ripping
Rip Fence
5
8
Irregularly Shaped Stock
Figure 16
IRREGULARLY SHAPED STOCK
