microjig GRR-RIPPER - Page 2

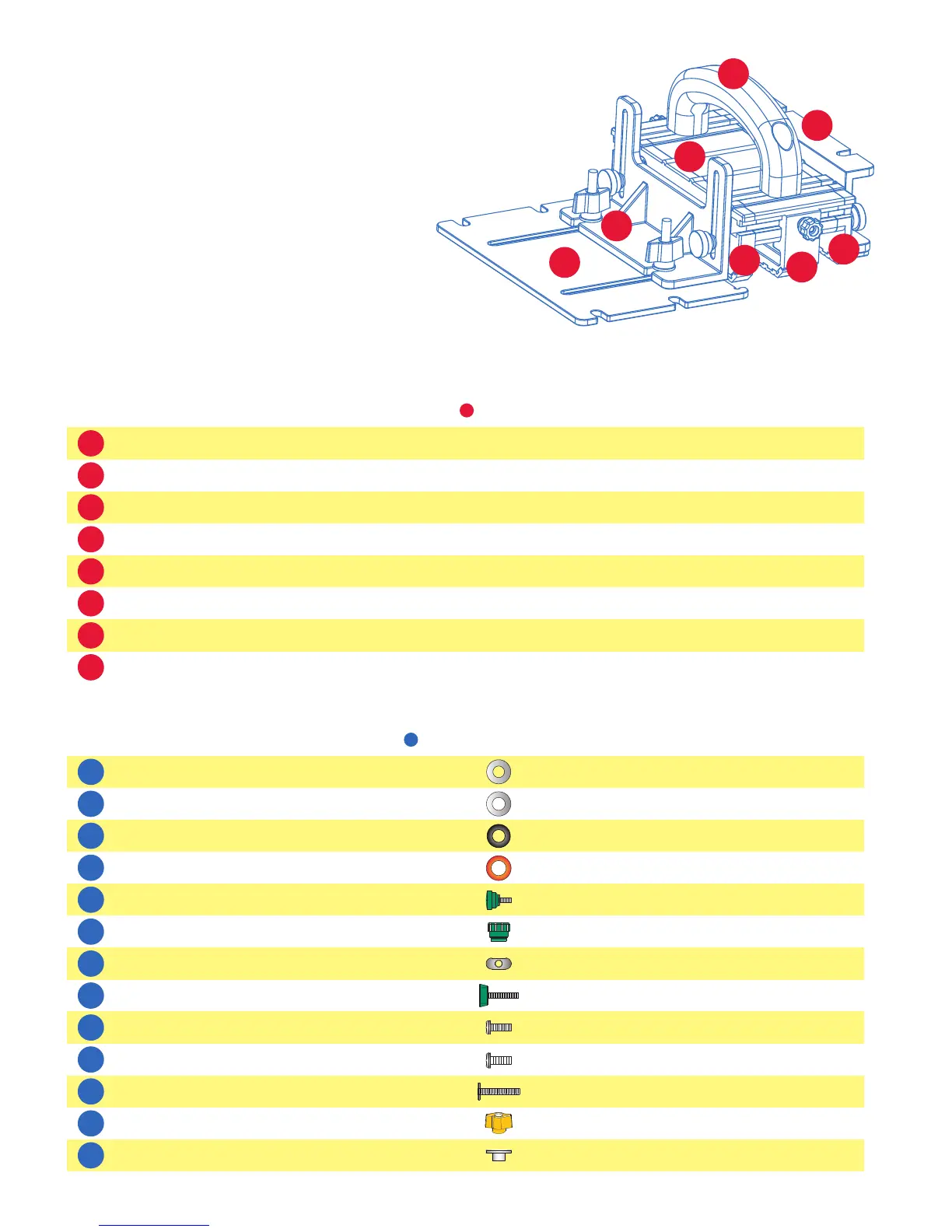

GRR-RIPPER PARTS (Indicated by Red Circles ) GR-100 GR-200
Handle 1 1
2 Main Body 1 1
Center Leg 1 1
1/2” Side Leg 1 1
1/4” Side Leg 1 1
Balance Support 1 1
Stabilizing Plate 1
Adjustable Spacer 1
HARDWARE (Indicated by Blue Circles ) Red Bag Blue Bag
A #10 x 7/16” OD Washer 8 8 2
B 1/4 x 1/2” OD Washer 2 2
C 9/32” OD O-Ring (#10 screw) Black 6 6 2
D 5/16” OD O-Ring (1/4-20 screw) Orange 2
E 10-32 x 1/2” Green Thumb Screw 2 2 2
F 10-32 Green Round Knob 2 2
G 1/4-20 Oval Nut 2 2
H 10-32 x 1” Green Dovetail T-Bolt 2 2
K 1/4-20 x 3/4” Pan Head Screw 2 2
L 10-32 x 1/2” Pan Head Screw 4 4
M 1/4-20 x 1 3/4” T-Bolt 2
N 1/4-20 Yellow Wing Knob 2
P Nylon Shoulder Washer 2
GR-100 GR-200
NOTE: Please check to ensure that you have
all parts and hardware before assembling.
If you have purchased the GRR-RIPPER Upgrade Kit
(GRAK-404) please reference Step 6 on Page 10 for
installation instructions.
7
2
8
4
3
5
6
1
Figure 4
A
1
A
1
4
2
5
7
3
6
8
C
B
D
E2
F2
G
H2
K
L
M
N2
P
