Chapter 2 Tour of Product

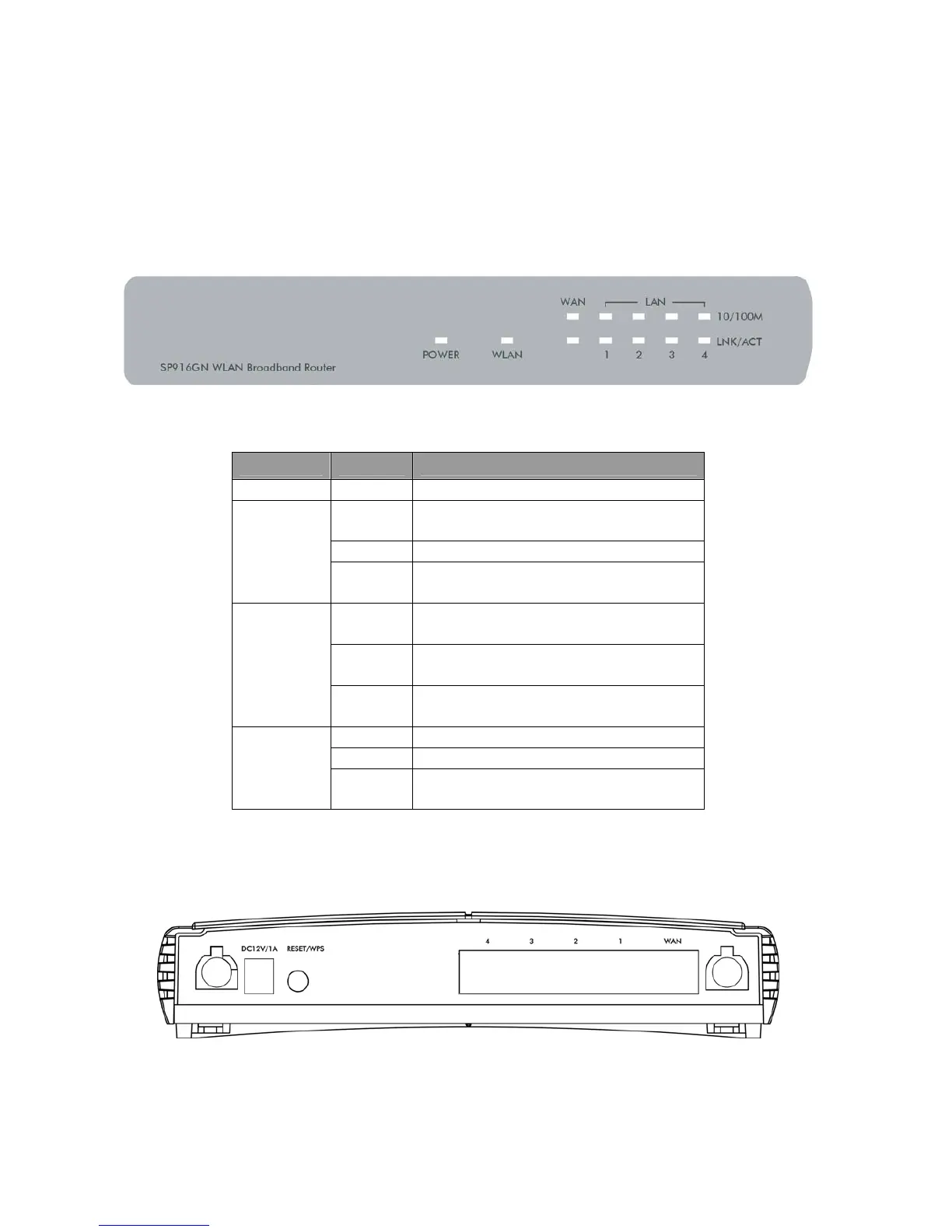

2.1 Front Panel
LED Status Description
PWR
On Router is switched on
On
Wireless network or WPS mode is
switched on
Off Wireless network is switched off
WLAN
Flashing
Wireless LAN activity (transferring
or receiving).
On
WAN/LAN port (Internet) is running
at 100Mbps
Off
WAN/LAN port (Internet) is running
at 10Mbps
WAN/LAN
10/100M
Flashing
WAN/LAN activity (transferring or
receiving data)
On WAN/LAN port is connected
Off WAN/LAN port is not connected
WAN/LAN
LNK/ACT
Flashing
WAN/LAN activity (transferring or
receiving)
2.2 Back Panel
5
