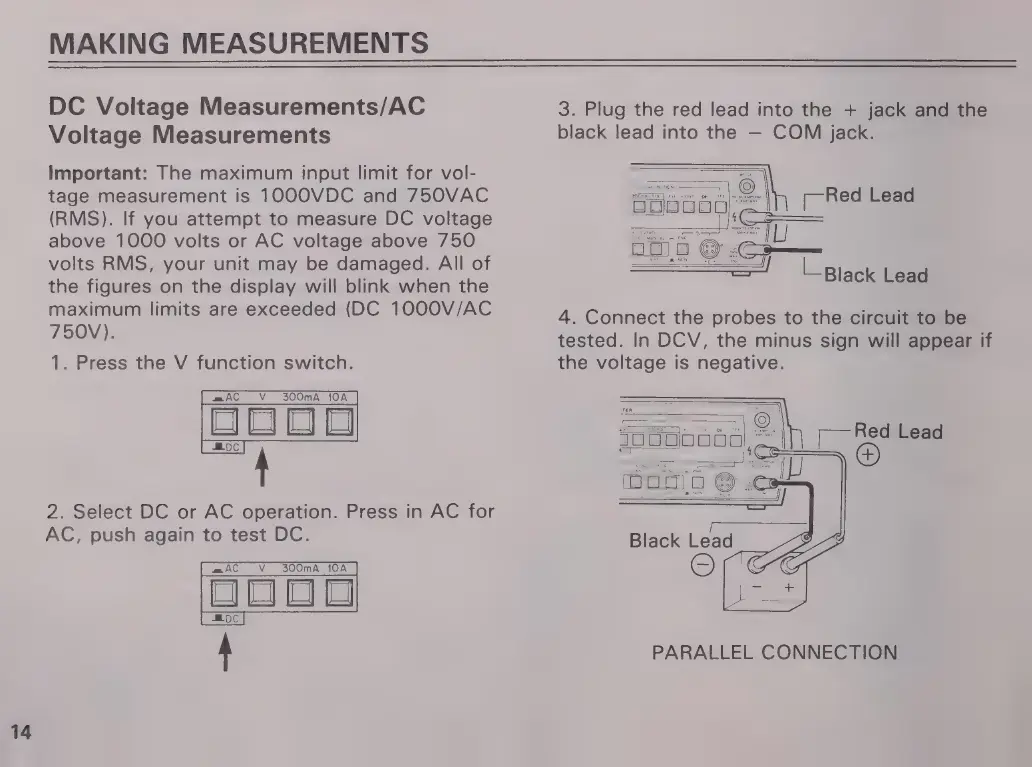

MAKING MEASUREMENTS
DC Voltage Measurements/AC
Voltage Measurements
Important: The maximum input limit for vol-
tage measurement is 1000VDC and 750VAC
(RMS). If you attempt to measure DC voltage
above 1000 volts or AC voltage above 750
volts RMS, your unit may be damaged. All of
the figures on the display will blink when the
maximum limits are exceeded (DC 1000V/AC
750V).
1. Press the V function switch.
m AC V 300mA 10A
OOO
ed
2. Select DC or AC operation. Press in AC for
AC, push again to test DC.
wm AC V 300mA 10A
[1 E13 31 LJ
$
3. Plug the red lead into the + jack and the
black lead into the — COM jack.
[ Red Lead
Black Lead
4. Connect the probes to the circuit to be
tested. In DCV, the minus sign will appear if
the voltage is negative.
PARALLEL CONNECTION
