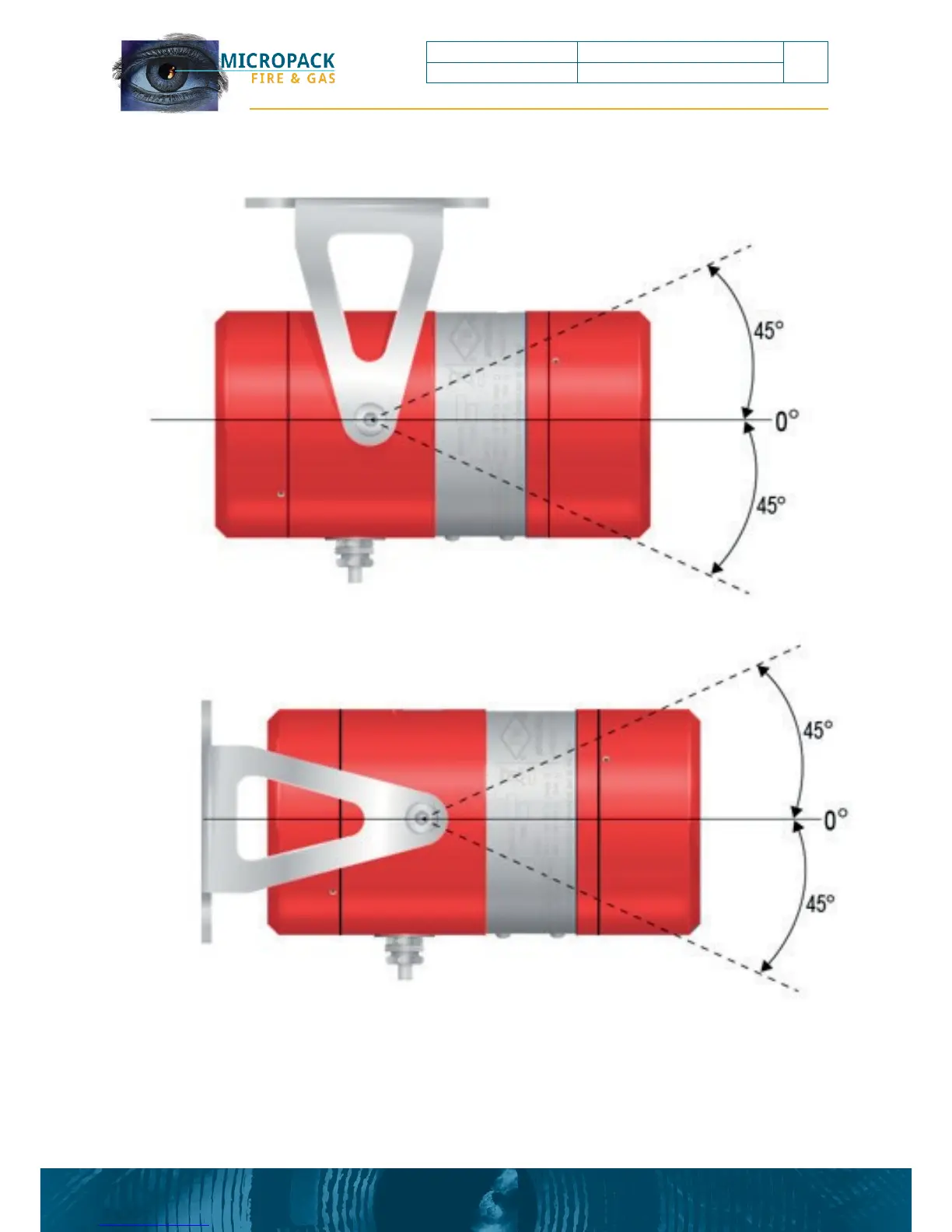

Figure 2: Ceiling Mount
Figure 3: Wall Mount
Firm, vibration free mountings are essential for trouble free operation of optical systems and
the
detector should be fixed to a rigid mounting. When mounting on a wall in this orientation
allow for the cable gland and cable as this may restrict the downward rotation of the detector.
