Appendix C - Field of View

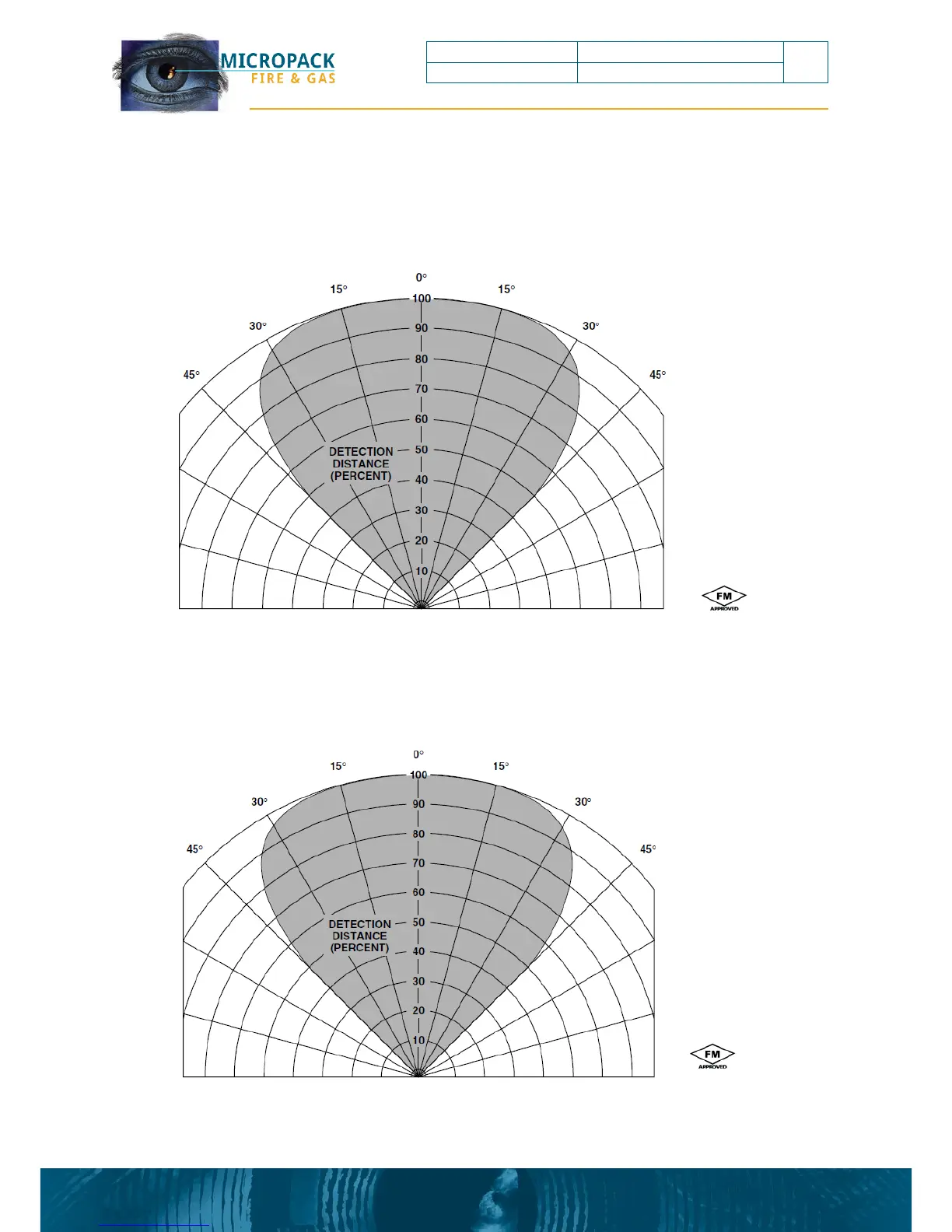

Horizontal Field of view to a 0.1 m
2
N-heptane pan fire with an alarm response. 100%= 60
metres for High sensitivity. 100%= 30 metres for Standard sensitivity. 100%= 15 metres for Low
sensitivity
.
Vertical Field of view to a 0.1 m
2
N-heptane pan fire with an alarm response. 100%= 60 metres
for High sensitivity. 100%= 30 metres for Standard sensitivity. 100%= 15 metres for Low
sensitivity.
