Chapter 2 System Components
2-18 MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide
MV-40 Power Requirements
The MicroHAWK MV-40 Smart Camera is an RS-232-powered device. The camera is a
high-powered device, and the host must be capable of supplying up to twenty-four unit
loads (150mA).

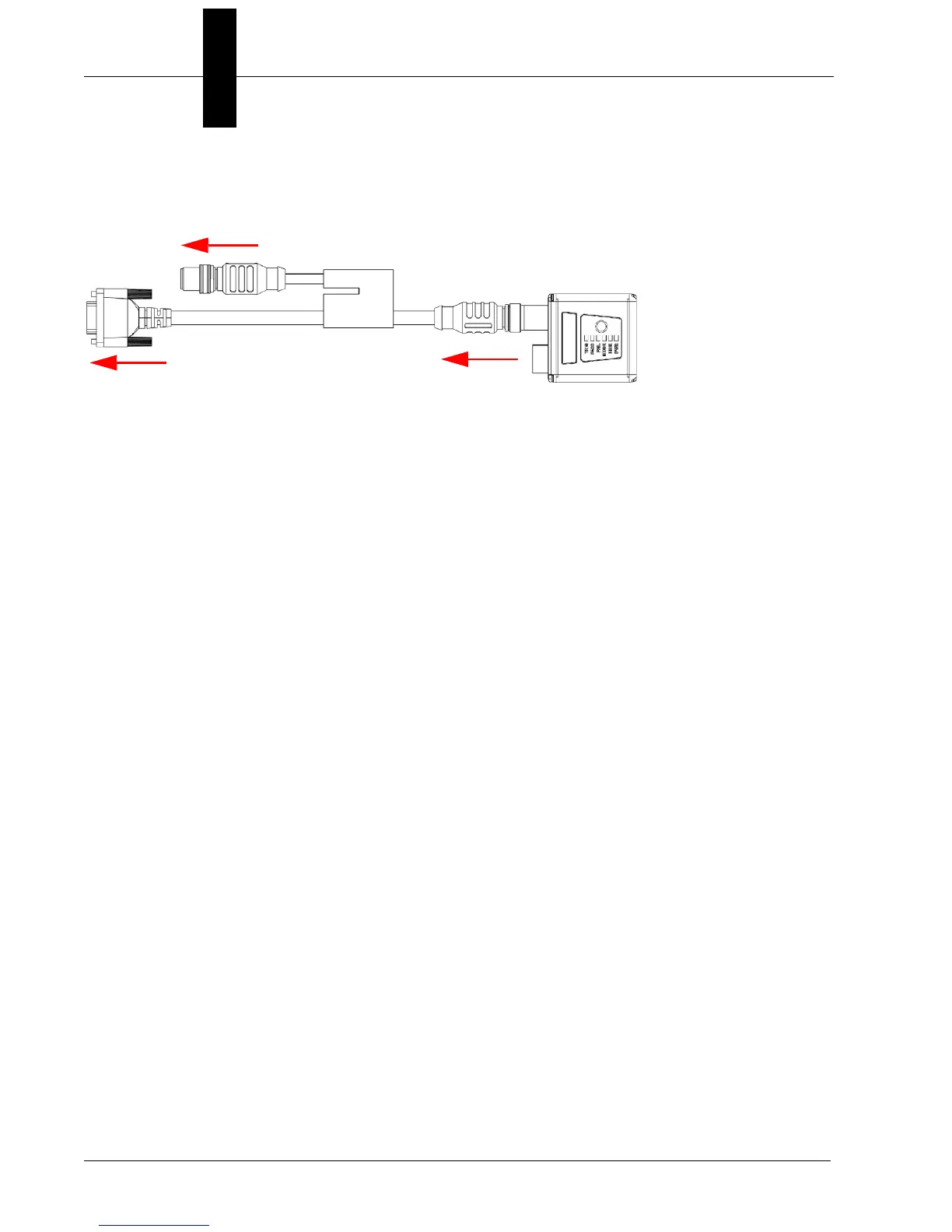

MicroHAWK MV-40 M12 12-Pin Socket to 9-Pin Socket and M12 Plug
1
25
To Power Supply (19) or: Flying Lead Cable
(61-000167-02); QX-1; MS-Connect 210.
To Host
(RS-232)
To Ethernet
To Next Page
