Appendix B Cable Specifications
B-4 MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide

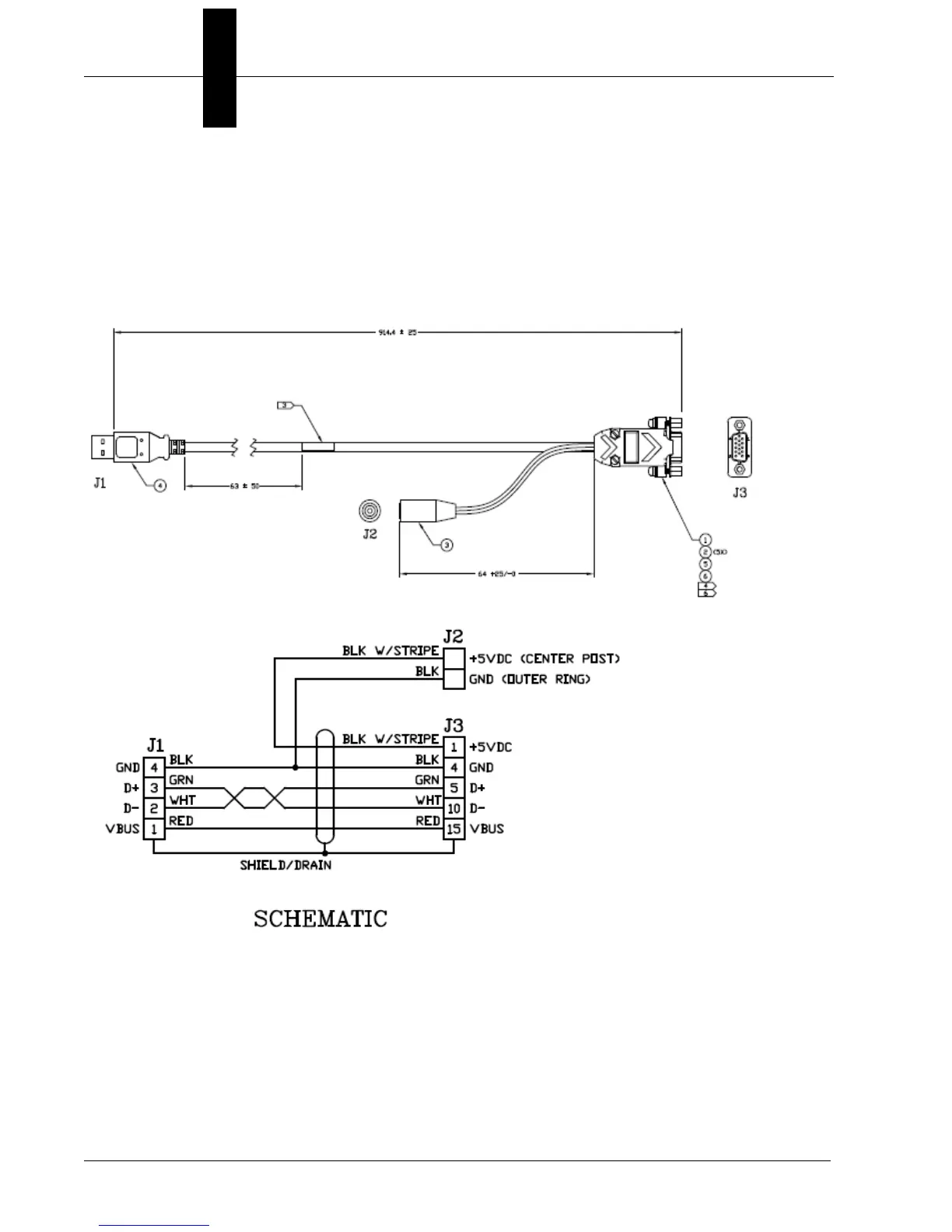

61-9000038-01 DB15 to Ext. Power/USB Cable
The 61-9000038-01 DB15 to ext. power/USB cable is a cable with one end a USB
connector(J1) and the other end a DB15 (J3) extended power/RS-232 (J2). This cable is
used for basic communications applications that require more light or for higher speed
applications.
