Microsens MS453510M - VLAN Port Setting

16

There are 16 VLAN entries per page among 16 pages. To search the
specified VLAN, please type in the VLAN ID in the empty field beside the
label of ‘
Quick Search Vlan Entry, Vlan ID:
’ and then press ‘Search’.

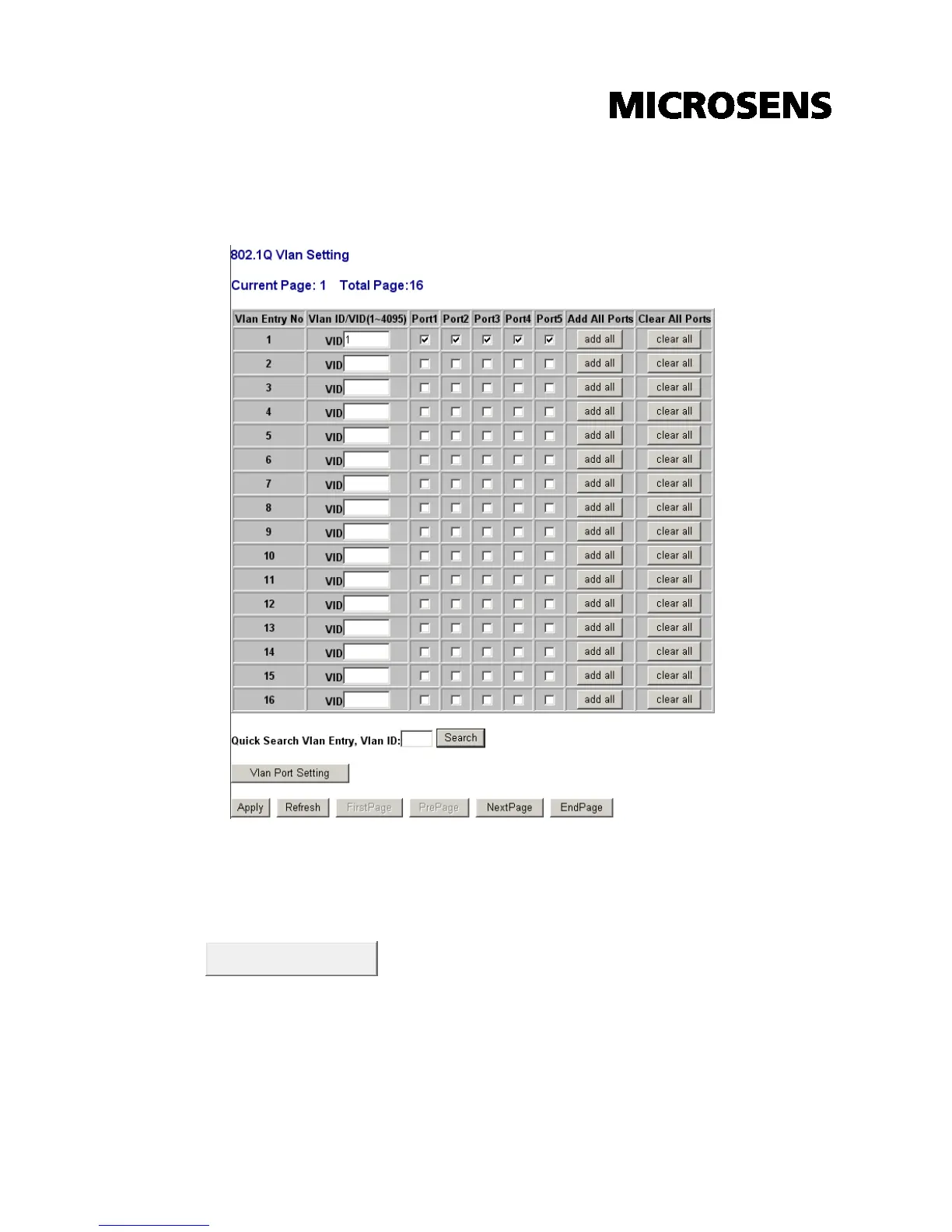

VLAN Setting interface
VLAN Port Setting
Click
VLAN Port Setting
to bring up the configuration interface for adjusting
the VID Setting.

PVID:
Enter the Port VLAN ID.

Awareness:
Enable the awareness so that ports will strip the VLAN tag from
received frames and insert the tag (contains PVID) into transmitted frames.
