Hardware Description
This section mainly describes the hardware of the 4 10/100/1000T plus 1
Mini-GBIC Web Managed Switch, and gives a physical and functional overview
on certain switch.
Physical dimension
The 4 10/100/1000T plus 1 Mini-GBIC Web Managed Switch physical dimension
is
165 x 100 x 32.5 mm
(W x D x H).
Front Panel

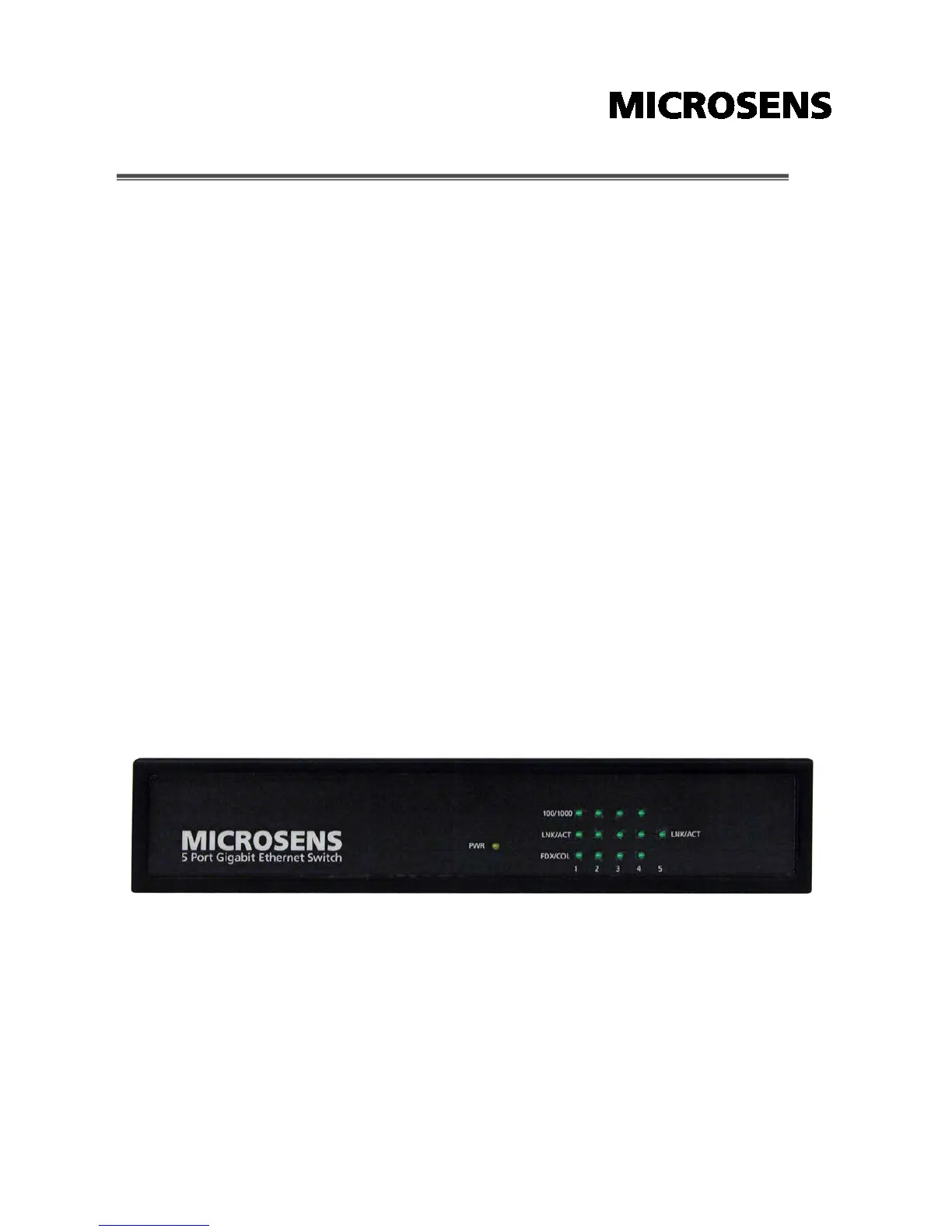

The Front Panel of the 4 10/100/1000T plus 1 Mini-GBIC Web Managed Switch
consists of LED Indicators and a reset button. Please refer to LED Indicator
section for LED description.
Reset button:
It provides an easy way for user to reset the configuration
back to the default settings. Press the button more than 5 seconds, and then
the switch will restart and set all configurations back to the default settings.
