Microsens MS453510M User Manual

27

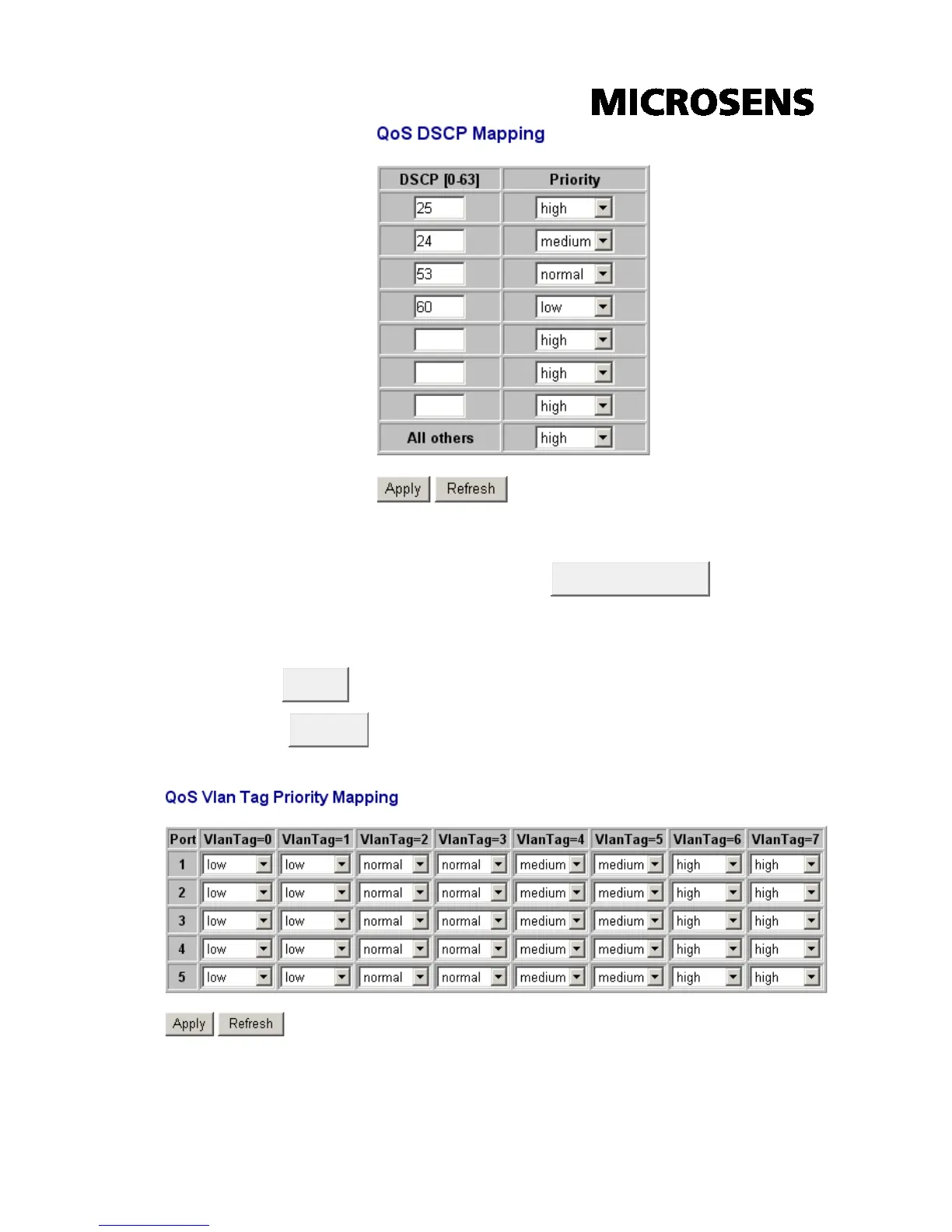

QoS DSCP Mapping interface

After having set mode as ‘vlantag’, click
VLAN tag Mapping
to enter VLAN
tag priority configuration interface.

Set the VLAN tag priority level from 0 ~ 7 for each port.

Click
Apply
to have the configuration take effect.

Press
Refresh
to refresh the configuration to view the newest state.
QoS VLAN Tag Priority Mapping interface

Microsens MS453510M Specifications

General

Brand	Microsens
Model	MS453510M
Category	Switch
Language	English
