MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual
109
Function name:
Aggregator View
Function description:
To display the current port trunking information from the aggregator point of view.
Parameter description:
Aggregator:
It shows the aggregator ID (from 1 to 8) of every port. In fact, every port is also an
aggregator, and its own aggregator ID is the same as its own Port No..
Method:
Show the method a port uses to aggregate with other ports.
Member Ports:
Show all member ports of an aggregator (port).
Ready Ports:
Show only the ready member ports within an aggregator (port).

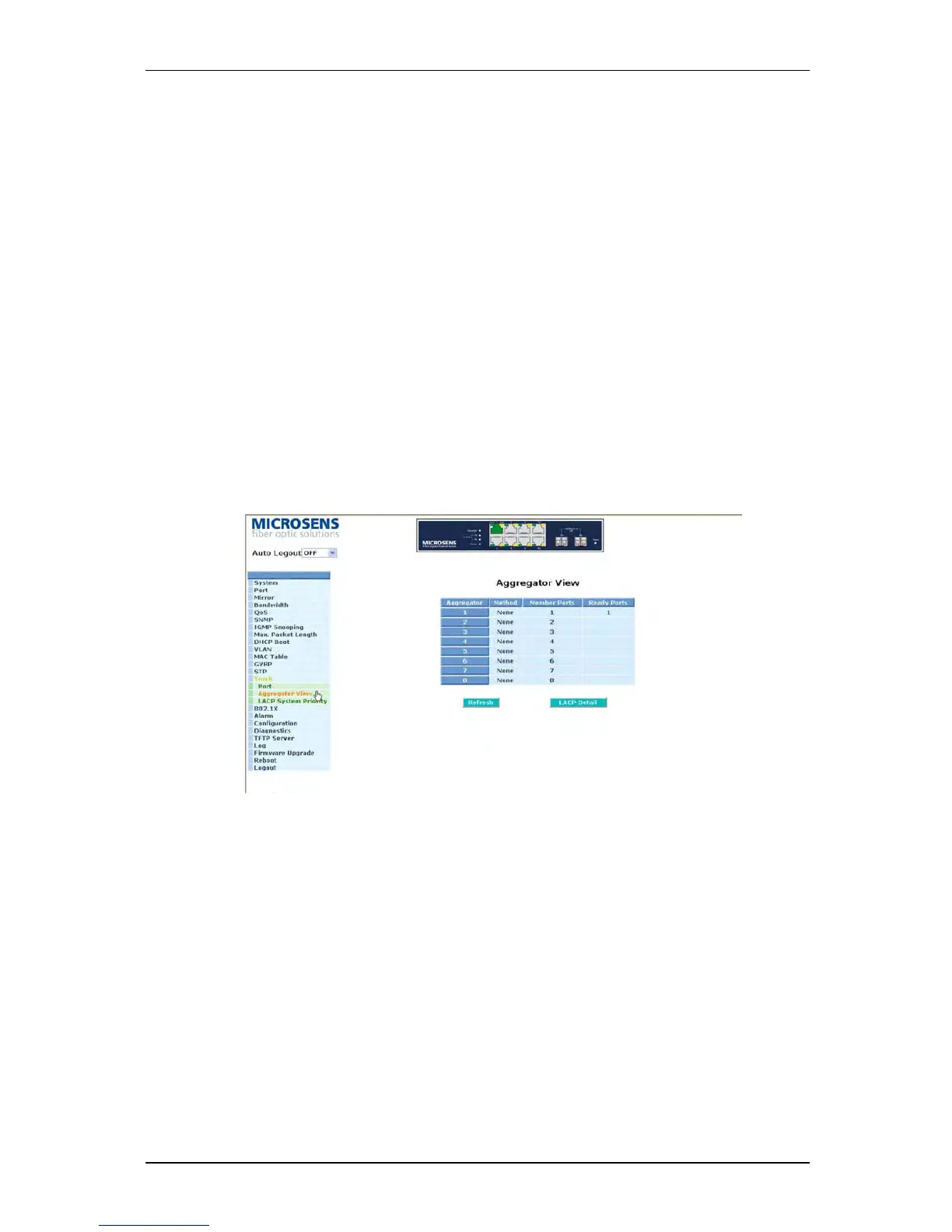

Fig.3-49
